32 digital outputs, 0.5 A per channel. Standard DO524 and DO524-XC have different order numbers; match the installed environmental version.
Brand:
ABBItem NO.:
DO524Goods Stock:
1Part Number:
DO524Description:

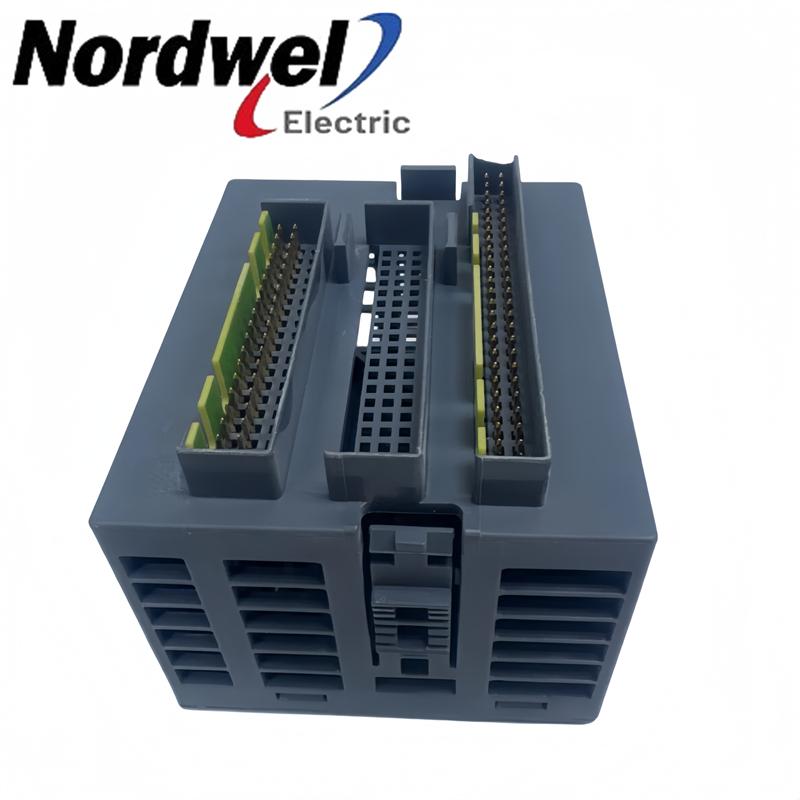

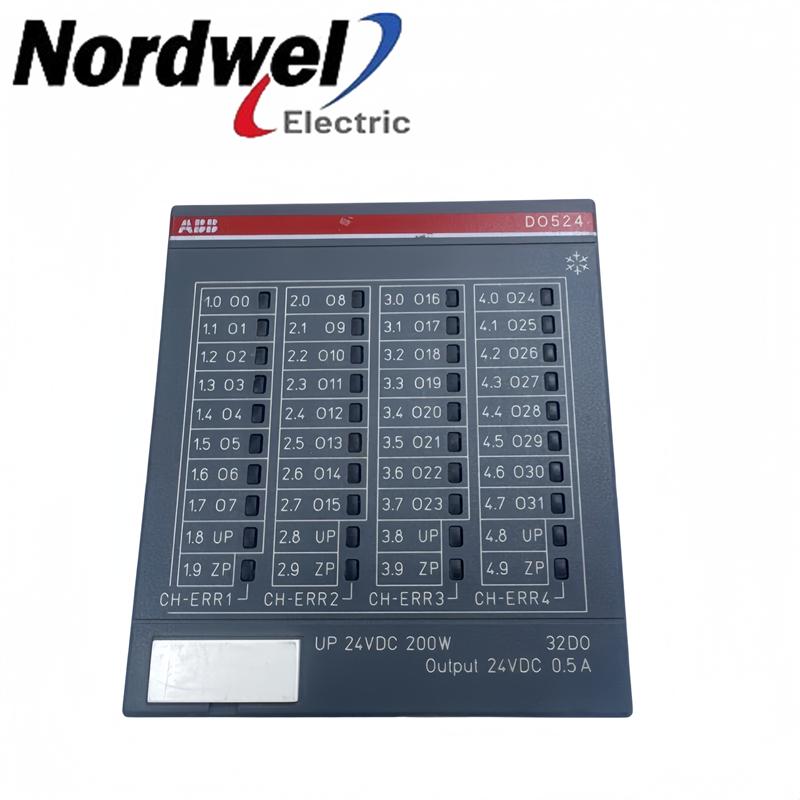

Digital output module for S500 / S500-XCABB identifies DO524 as a Digital output module in the S500 / S500-XC family. 32 digital outputs, 0.5 A per channel.
| Product family | AC500 / S500 |
|---|---|
| Module type | Digital output |
| Output channels | 32 DO |
| Output type | Transistor |
| Output rating | 24 V DC; 0.5 A |
| Connection | 1-wire |
| Output groups | 4 |
| Order code | 1SAP240700R0001 |
Source: ABB DO524 data sheet 3ADR010052 and official AC500 product data.
Verify the terminal hardware, process supply and connected loads before the module is installed or energized.
Match output count, voltage, current rating and terminal hardware to the installed circuit.
