Payment:
T/TPart Number:
AIO288/1Weight:
0.3kgDimensions:
12x6x5mManufacture Year:
The latest yearPlace of Origin:
AustriaCertification:
COODescription:
Module
Parameters

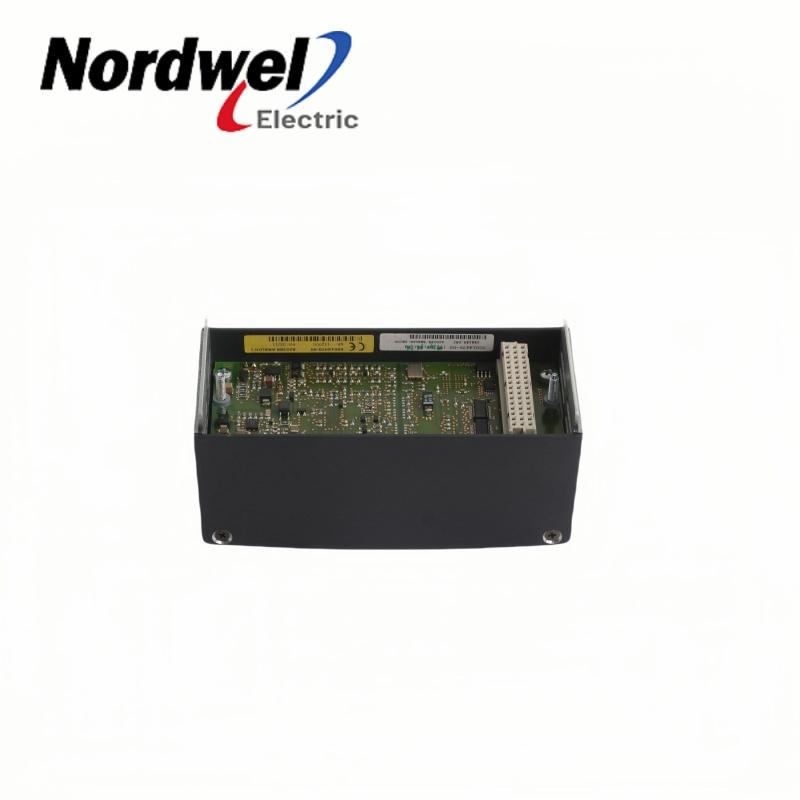

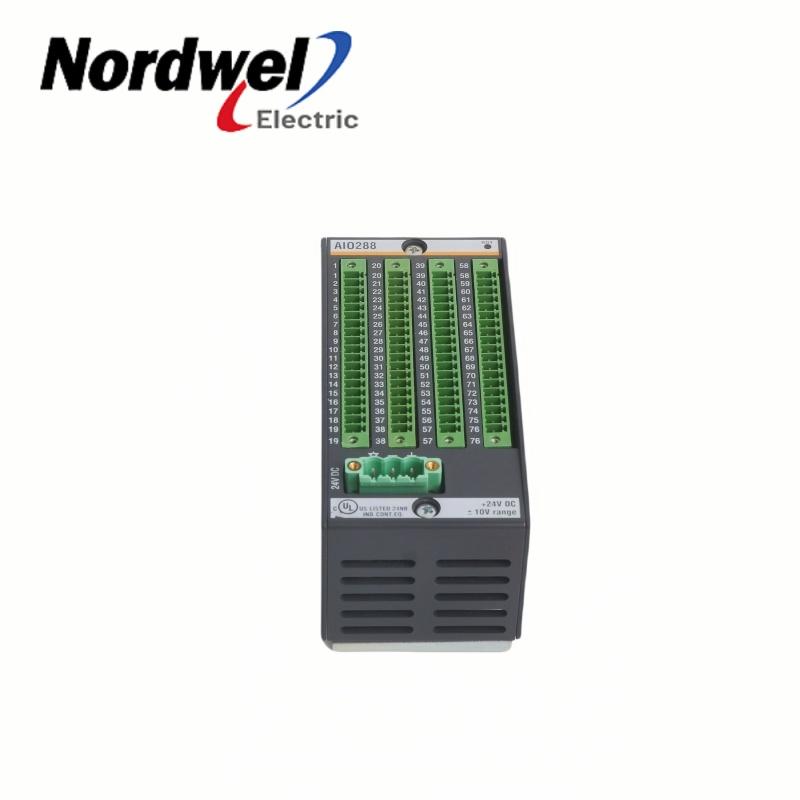

Model: AIO288/1
Brand: Bachmann
Condition: Brand New and Origin
TNumber of channels: 8 analog input channels and 8 analog output channels are provided.
Input range: The analog input range is ±10V, ±1V, 20mA, and can receive analog signals from a variety of sensors or devices.
Accuracy and resolution: The accuracy is 0.1%, and the resolution is 14 bits. It can accurately measure and convert analog signals and is suitable for industrial automation control systems with high accuracy requirements.
Is this one not you want? Call Stella
>> E-mail: sales@askplc.com >> Phone/Whatsapp: +8618159889985
Feature
Sampling time: The sampling time of 200µs can quickly collect and process analog signals to ensure that the system can respond to changes in time.
Power supply: It can provide power for up to 4 potentiometers to meet the power supply requirements of different external devices.
Temperature input: Supports up to 4 Pt100/Pt1000 The temperature input of the sensor can be used to monitor the temperature changes in the system.
Working Mode
Input mode: The input supports single-ended or differential connection mode, and users can choose according to the actual application scenario and signal transmission requirements.
Functional characteristics
Broken wire detection: It has a broken wire detection function for the input signal (voltage and temperature), which can timely detect faults in the signal transmission line and improve the reliability and stability of the system.
Short-circuit protection output: The output has a short-circuit protection function to prevent the module output from short-circuiting due to external equipment failure or misoperation, and protect the safety of the module and other related equipment.
Nordwel's Advantage
(1) 24 hours online
(2) Large Inventory
(3) 12-month warranty
(4) Brand New and Original
(5) 20-Year Exerience in Automation Area
|
