Module
Parameters

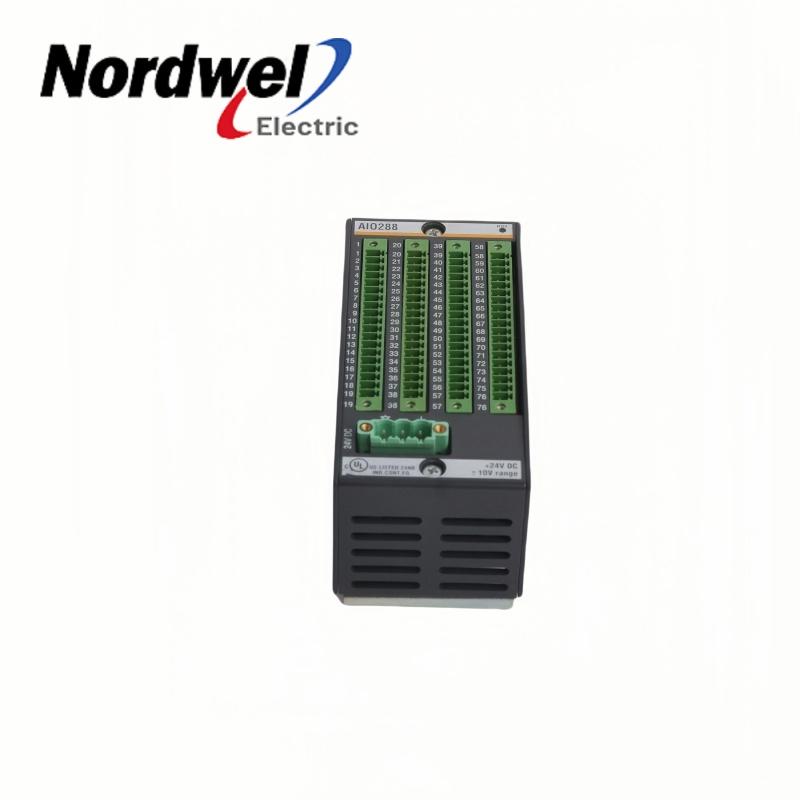

Model: AIO288
Brand: Bachmann
Condition: Brand New and Origin
Input channel: It has 8 analog input channels, which can meet the needs of simultaneous acquisition of multiple analog signals.
Output channel: It is equipped with 8 analog output channels, which can realize the control of multiple analog devices.
Signal range: The analog input signal range is ±10V, ±1V, 20mA, and the analog output signal range is ±10V, which can adapt to many different types of analog signals.
Stella 》》 E-mail: sales@askplc.com 》》 Phone/Whatsapp: +8618159889985
Feature
Resolution: 14 bits, the higher resolution can ensure the accuracy of analog signal acquisition and output, and meet the application scenarios with high precision requirements in industrial control.
Sampling time: 200µs, the fast sampling time can ensure timely and accurate acquisition of analog signal changes, and improve the real-time and response speed of the system.
Input connection mode: It supports single-ended or differential connection mode. Users can choose the appropriate connection mode according to the actual application scenario and signal characteristics to improve the signal's anti-interference ability.
Related Concerns
Temperature input: It can support up to 4 Pt100/Pt1000 temperature sensor inputs, which is convenient for monitoring temperature parameters.
Power supply voltage: The external voltage range is 18V - 34V DC, wide voltage input range enables it to adapt to different power supply environments in industrial sites, enhancing the stability and reliability of the system.Multi-function integration: Integrates 8 analog inputs and 8 analog outputs in one, greatly reducing the number of modules used and the complexity of the system, reducing costs and installation space, while improving the reliability and maintainability of the system.
