Part Number:
TI214Weight:
0.4kgDimensions:
11x6x11.8cmPlace of Origin:
GERMANYCertification:
CO,CQDescription:

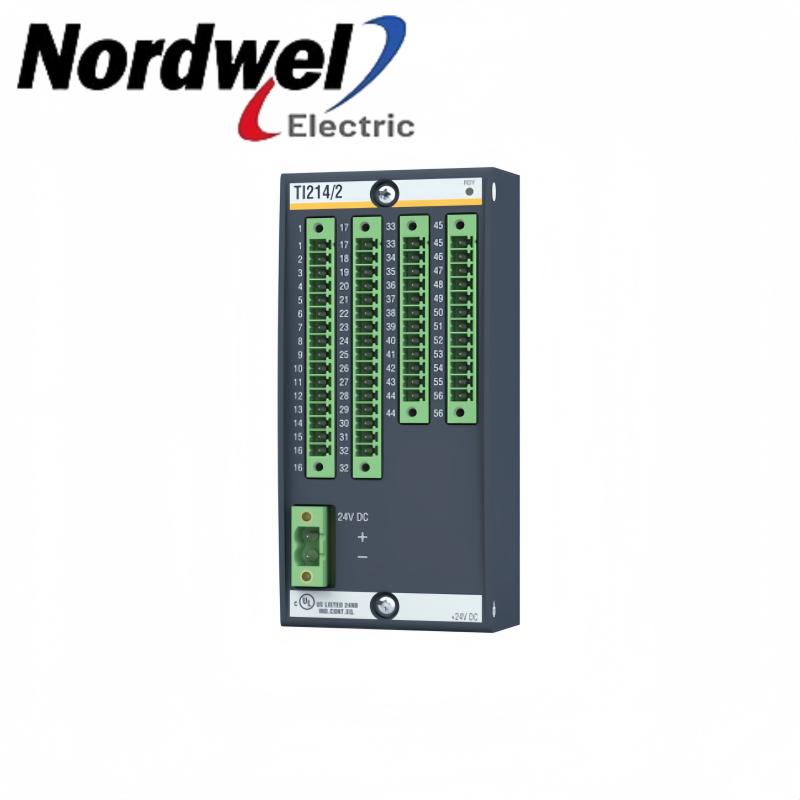

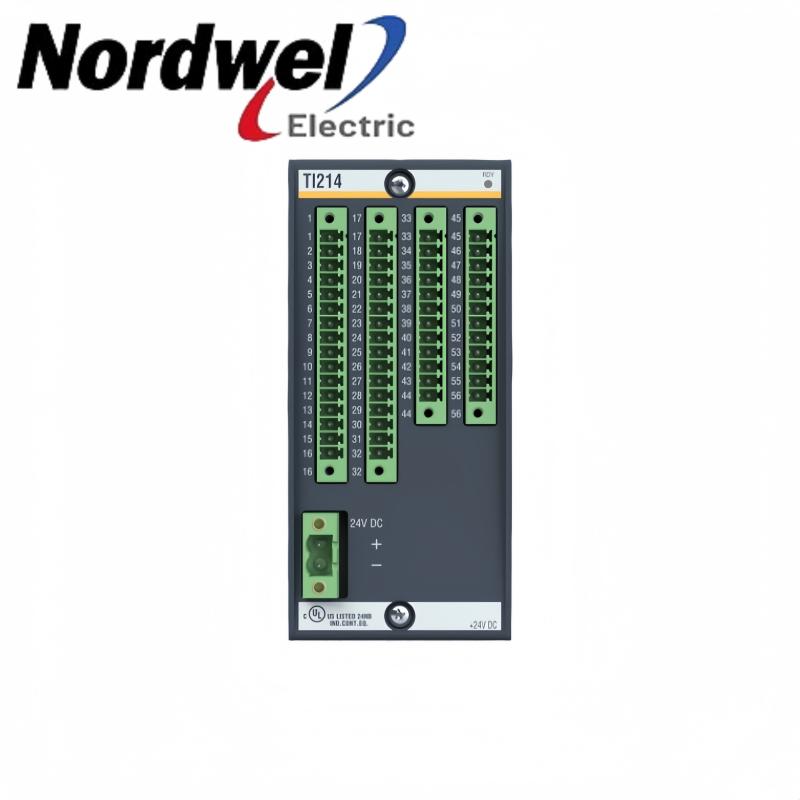

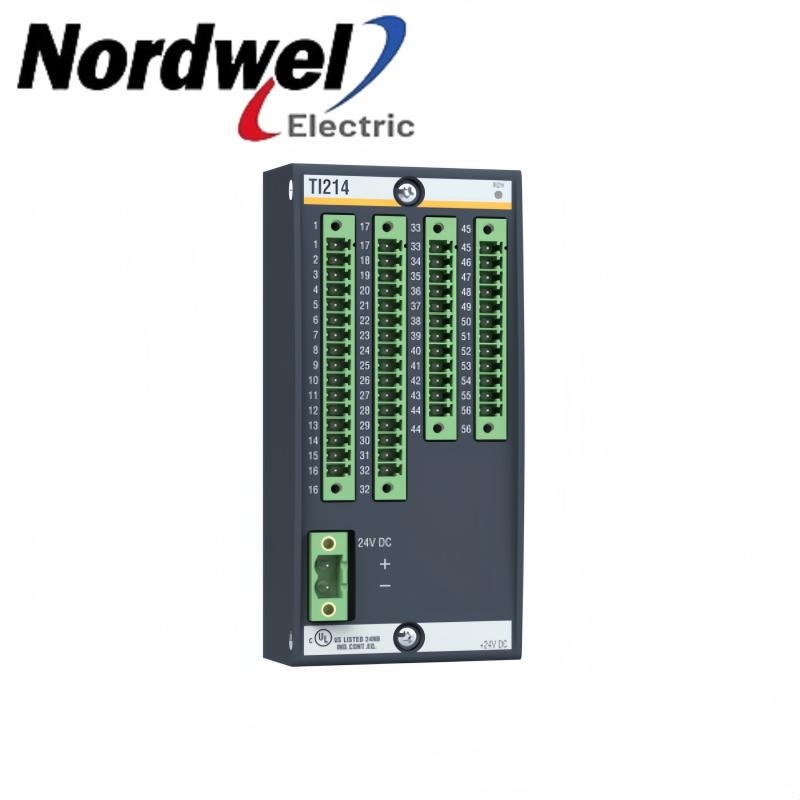

Bachmann TI214 Temperature Input Module
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Bachmann |
|
Part number |
TI214 |
|
Description |
Bachmann TI214 Temperature Input Module |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed TI214 in stock!!!
Product Description
The temperature recording modules TI214/x provide 14 temperature measuring channels in a single module width. With the TI214 either Pt100/Pt1000 sensors in 2 and 3 wire technology or type J or K thermocouples can be connected to each measuring channel. The TI214/2 module allows for the connection of type N or S thermocouples. The sensor type can be individually selected for each channel. In this way, the most effective and cost-efficient solution can be implemented for the application program. The average determination of the measured value can be set between 16 fold and 64 fold for easy an reliable interference suppression.With the module version TI214 the temperature of the switching cabinet can be measured on the same module with an inexpensive Pt100 sensor, while for example the temperature control systems are fitted with thermocouples. The new 3-wire measuring evaluation of the Pt100/Pt1000 sensor compensates for the voltage errors of both symmetrical cable runs and enables the precision of complex 4-wire measuring technology to be implemented in an inexpensive 3‑wire technology. The Pt sensors can also be connected in simple 2-wire technology and this is sufficient for many applications with short measuring lines.
Parameter Information
System platform: Bachmann M1 automation system
Number of input channels: 4 channels
Input type: RTD temperature inputs
Conversion method: Digital signal conversion
Communication interface: M1 system bus
Electrical isolation: Channel and system side isolation
Resolution: 14 bit (16 bit averaging)
Data Processing: Value averaging, interference suppression
Input Protection: Cable break detection
Isolation: Channel-to-system isolation
Power Monitoring: External power supply monitoring
Temperature Compensation: Cold junction as ambient temperature reference
FAQ
What type of module is Bachmann TI214?
Bachmann TI214 is a temperature input module for the M1 automation system.
How many input channels does Bachmann TI214 provide?
Bachmann TI214 provides 4 temperature input channels.
What type of signal does Bachmann TI214 process?
Bachmann TI214 processes RTD temperature signals from connected sensors.
