Item NO.:
125065-12Part Number:
125065-12Weight:
Dimensions:
Manufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:
shielded cable
Product Information
|
Model Number: |
125065-12 |
|
Description: |

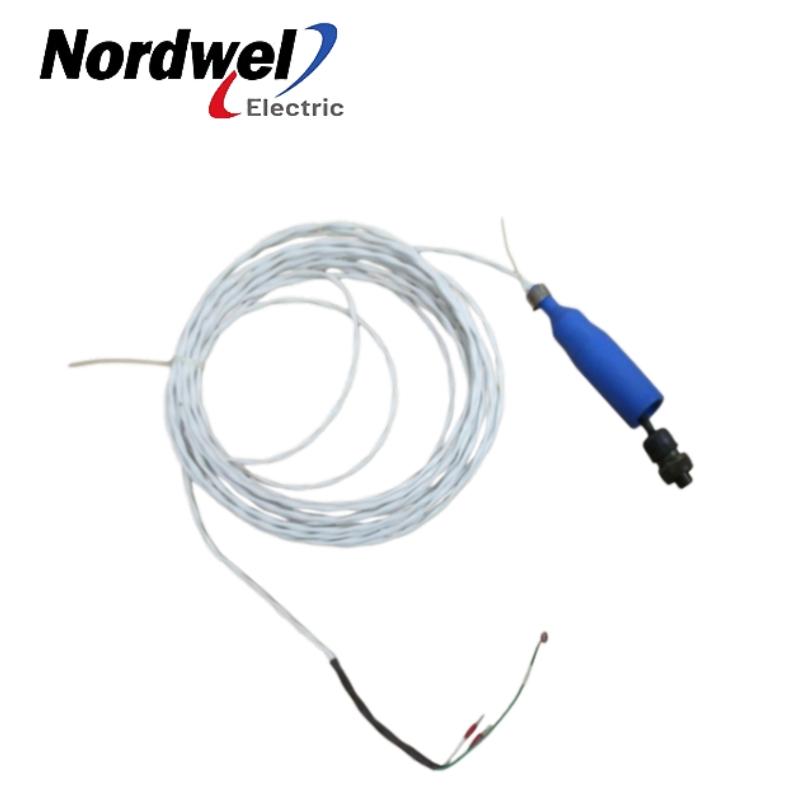

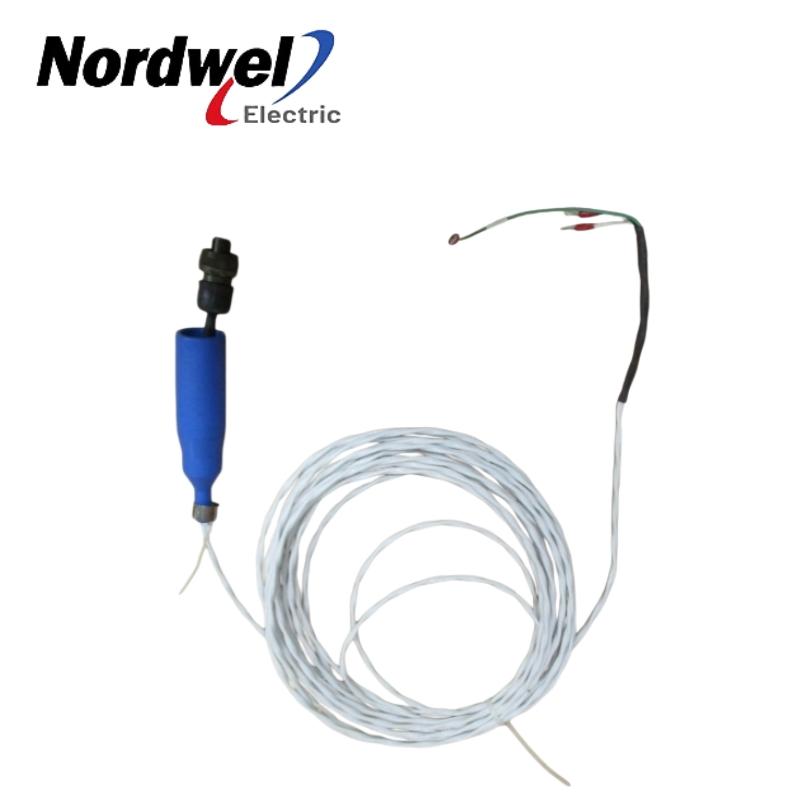

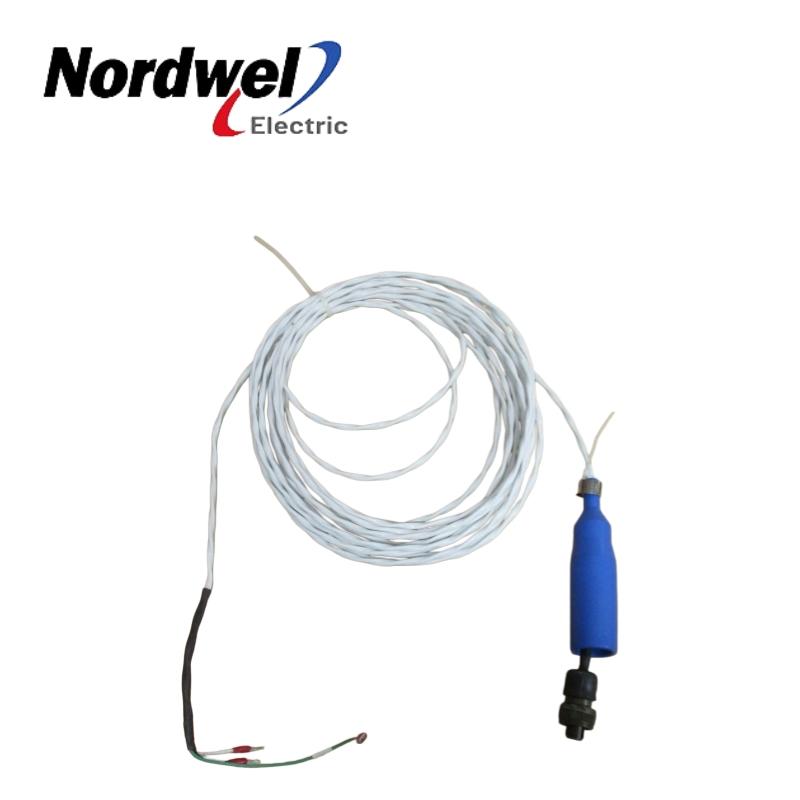

Two-conductor 18 AWG twisted shielded cable |
|
Condition: |
100% Original |
|
manufacturer: |
Bently Nevada |
Sales Manager:
Stella
Send an email:
Contact in Whatsapp:
Installation & Troubleshooting FAQ
Q1: How should the Bently Nevada 125065-12 cable be installed correctly?
A1: The 125065-12 should be installed as a two-conductor signal cable between the sensor system and monitoring module. Ensure the twisted shielded pair is properly routed away from high-voltage or high-current conductors to minimize electromagnetic interference. The two-socket plug end must be firmly connected to the monitor interface, while the terminal lug end should be securely fastened to the designated field terminals with correct polarity and torque.
Q2: Why is there no signal or very weak signal after wiring the 125065-12 cable?
A2: A weak or missing signal is typically caused by incorrect termination at the lug end or poor seating of the socket connector. Verify that both conductors are properly landed on the correct terminals and that no strands are loose or shorted. Also check continuity of the shield and ensure it is grounded at the designated point only to avoid signal loss or ground loops.
Q3: What causes intermittent signal noise or unstable readings?
A3: Noise issues are often related to improper shielding or cable routing. Ensure the cable is not installed parallel to power cables, motor leads, or VFD output lines. The shield must remain continuous along the full cable length and properly terminated. Physical damage such as crushed insulation or repeated bending can also introduce signal instability.
Q4: Why is the fluorosilicone boot important on this cable?
A4: The fluorosilicone elastomer boot provides environmental sealing and strain relief at the connector end, protecting the plug interface from oil, moisture, and vibration. If the boot is damaged or missing, the connector may be exposed to contamination, leading to corrosion or intermittent electrical contact under harsh industrial conditions.
Q5: What installation mistake commonly causes grounding or loop issues?
A5: A common mistake is grounding the cable shield at multiple points instead of a single controlled grounding location. This can create ground loops and introduce measurement noise. The shield should be grounded according to system design—typically at the monitor end only—to maintain signal integrity.
