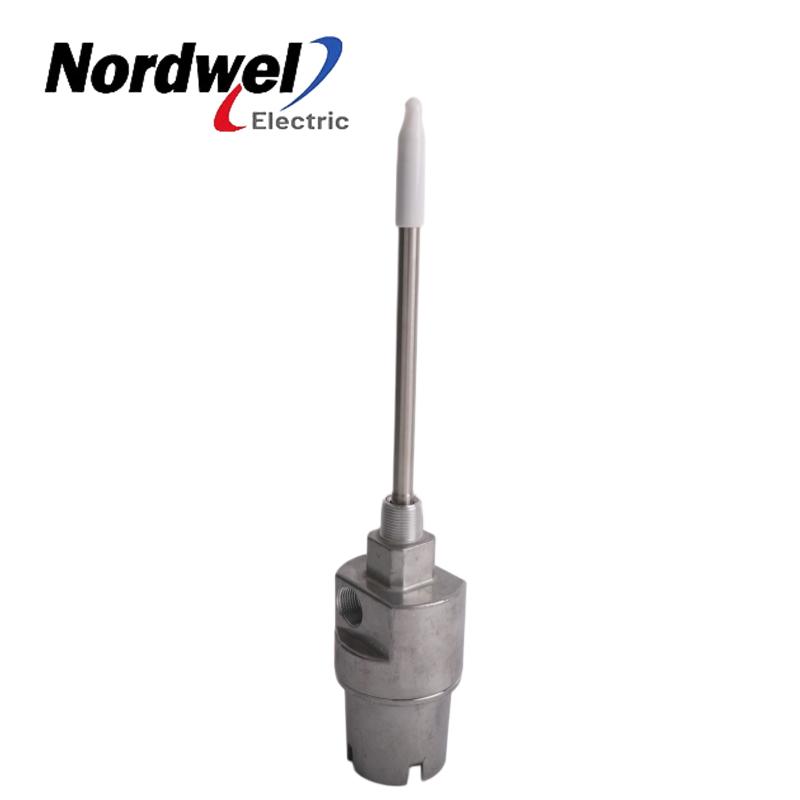

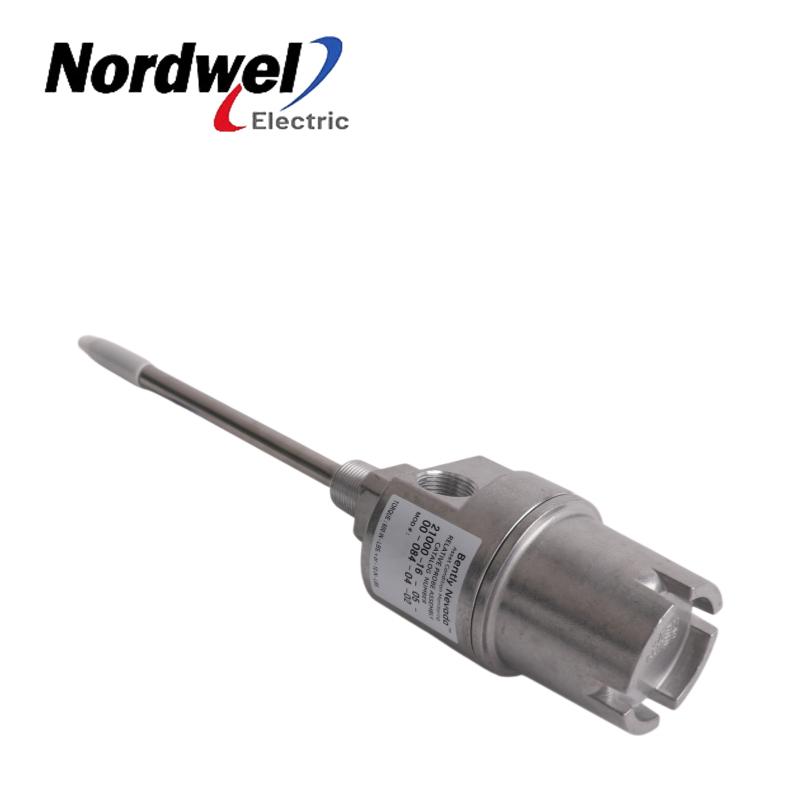

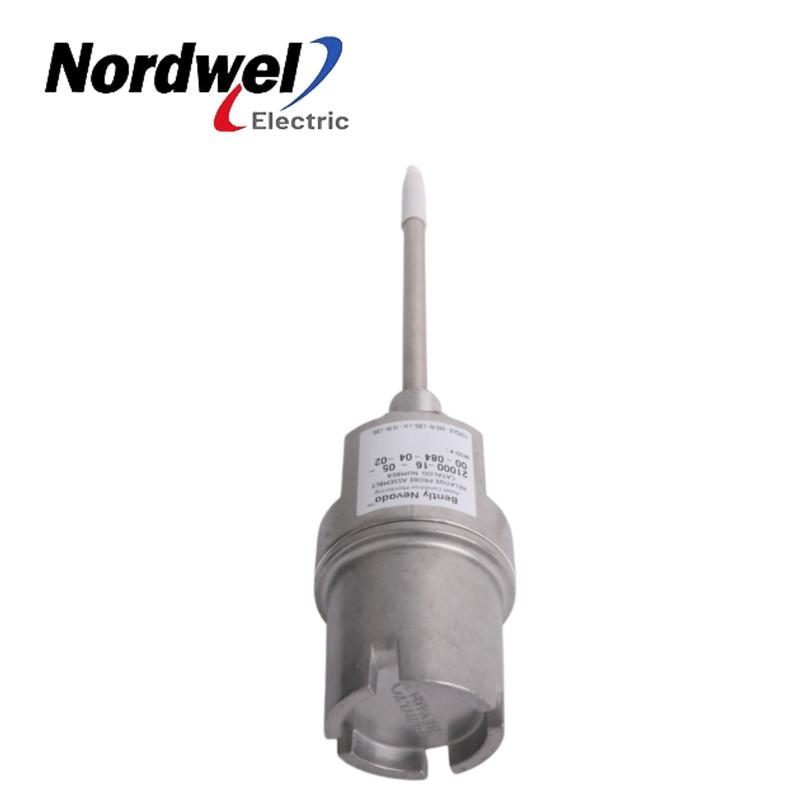

Optimized assembly for vibration & displacement: Factory-assembled as a complete housing kit with a pre-installed 3300 XL 8mm reverse-mount probe and 0.5m cable, simplifying installation and minimizing potential site-assembly errors.
-
Standard 5.0-inch penetration depth: Provides a standard 5.0-inch (127mm) probe penetration. This ensures accurate sensor placement in various bearing housings, serving as a balanced, middle-of-the-road choice for many medium-sized machines.
-
Dual corrosion-resistant construction: Combines a lightweight aluminum body (approx. 1.1 kg / 2.4 lb) with a wear-resistant 304 stainless steel sleeve.
-
Standard NPT fittings: Features 3/4-14 NPT mounting threads and includes one 3/4-14 NPT sealing plug.
-
API 670 and hazardous area certified: CSA Type 4 certified as explosion-proof (Class I, Division 1 & 2). Meets API 670 standards for externally mounted housings.
-
Tool-less installation & adjustment: Allows users to adjust the probe gap or replace the probe from outside the machine casing, without disassembling the machinery.
-
Dual Viton O-rings for IP65 sealing: Features dual Viton O-rings in a gland-type entry design, achieving an IP65 / NEMA 4X environmental rating. This provides a dust-tight, water-tight seal suitable for outdoor and washdown areas.
-
Wide operating temperature range: Rated to operate reliably from -40°C to +85°C, ensuring stable performance in various climate conditions, from cold startups to hot turbine casing environments.
