Item NO.:
330101-01-50-10-02-0Part Number:
330101-01-50-10-02-05Weight:
0.32kgDimensions:
35 × 32 × 5 cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

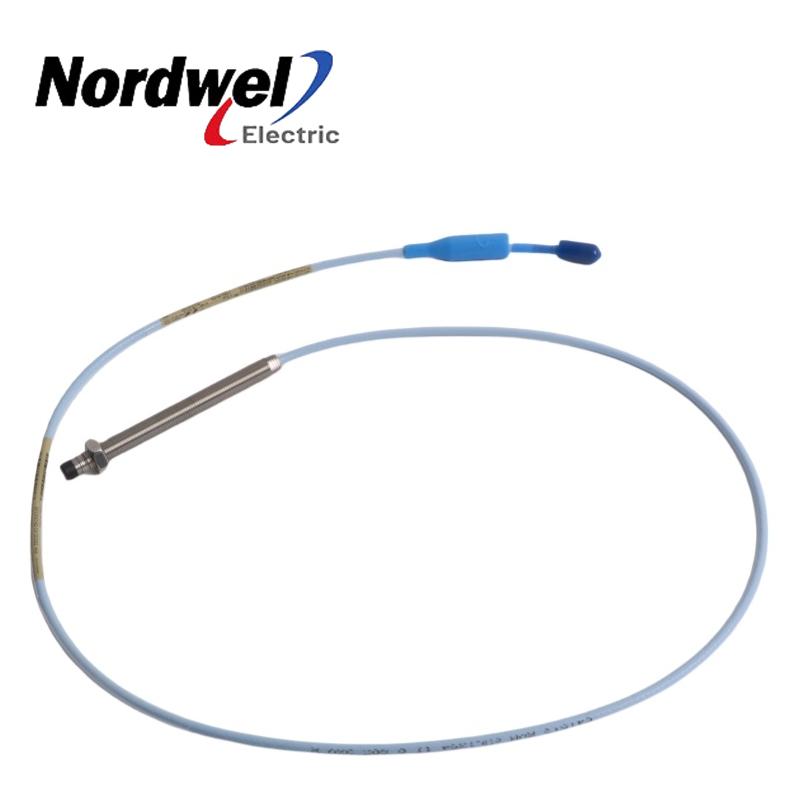

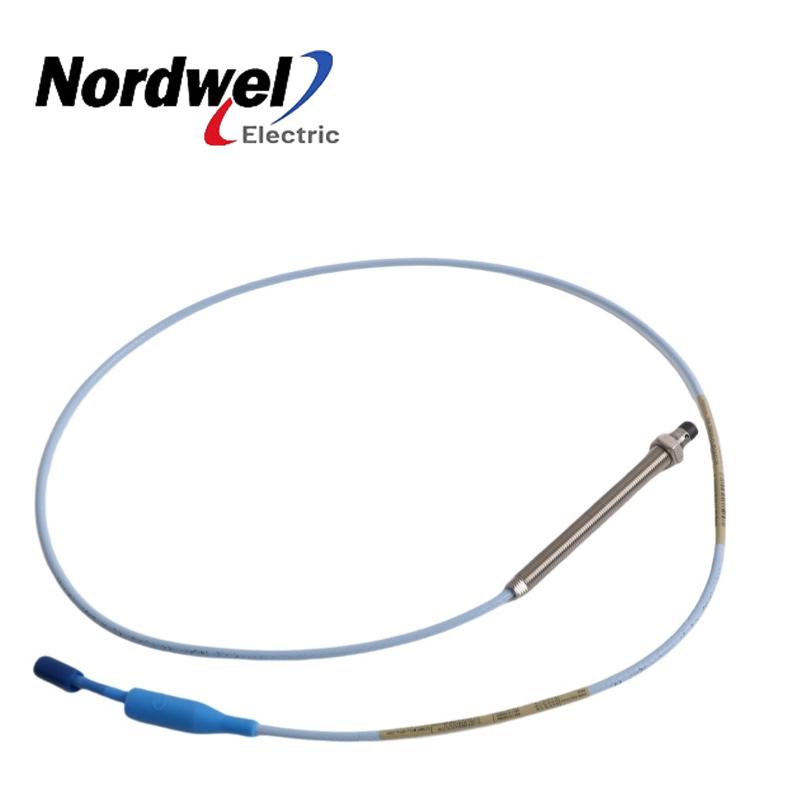

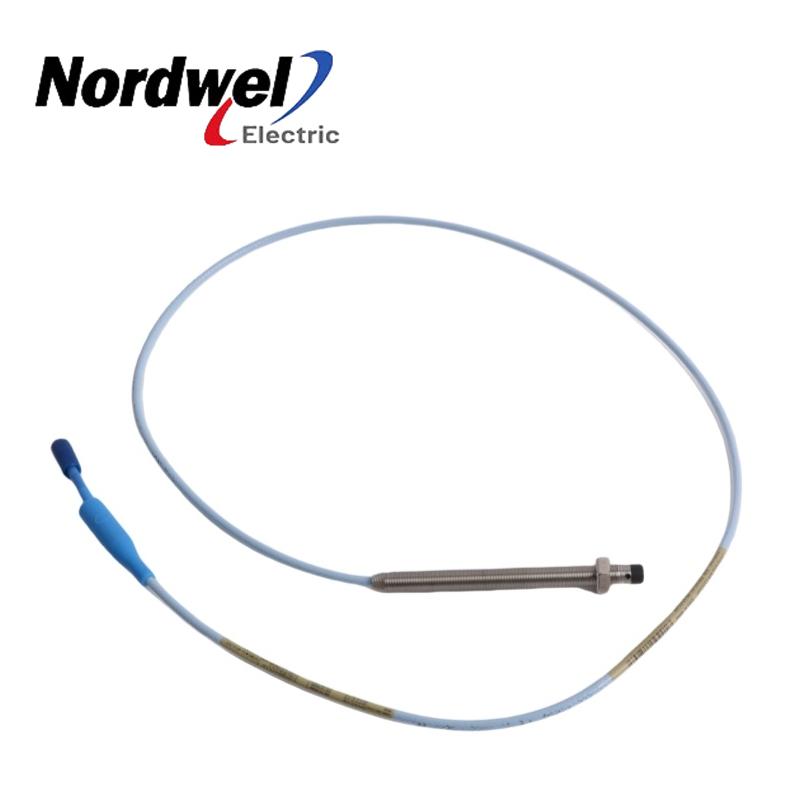

3300 XL 8 mm Proximity Probes
Product Information
|
Model Number: |
330101-01-50-10-02-05 |
|
Description: |
3300 XL 8 mm Proximity Probes |
|
Condition: |
100% Original |
|
Certificate: |
COO |
Sales Manager:
Stella
Send an email:
Contact in Whatsapp:
Specifications
Part Number Breakdown
330101 – 3/8-24 UNF thread, no armor
01 – Unthreaded length: 0.1 inch
50 – Case length: 5.0 inches
10 – Total probe length: 1.0 meter (3.3 feet)
02 – Miniature coaxial ClickLoc™ connector, standard cable
05 – Hazardous area approvals: CSA, ATEX, IECEx
Sensitivity: 7.87 V/mm (200 mV/mil) ±5%
Linear range: 2 mm (80 mils) from 0.25 mm to 2.3 mm
Recommended gap: 1.27 mm (50 mils) = -9 Vdc
Frequency response: 0 to 10 kHz (-3 dB)
Output impedance: 50 Ω
DC resistance: 7.59 Ω ±0.50 Ω (for 1.0 m probe)
Probe temperature: -52°C to +177°C (-62°F to +350°F)
Humidity: <3% ASF change at 93% RH (IEC 68-2-3, 56 days)
IP rating: IP65 when installed with connector protectors
Altitude: 2000 m max
Tip: Polyphenylene sulfide (PPS)
Case: AISI 303/304 stainless steel
Cable: 75Ω triaxial, FEP insulation
Connector: Gold-plated brass ClickLoc™, finger-tight
Seal: Viton® O-ring
Pull strength: 330 N (75 lbf) – CableLoc™ design
Hazardous area: CSA (Class I, Zone 0/Div 1), ATEX (Ex ia IIC), IECEx
Standards: API 670, CE, RoHS, FCC Part 15
Interchangeable with all 3300 XL and non-XL 3300 series components – no bench calibration required
Radial vibration and axial position monitoring on fluid-film bearing machines
Keyphasor reference and speed measurement
Turbines, compressors, pumps, generators
