Brand:
Bently NevadaItem NO.:
330101-00-39-10-02-0Part Number:
330101-00-39-10-02-05Weight:
0.05kgDimensions:
1.5x1.3x113cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:
3300 XL 8 mm Proximity Probes
Product Information
Model number
330101-00-39-10-02-05
Country of origin
USA
Condition
Brand New
Lead time Warranty
in stock
Dimensions
1.5x1.3x113cm
Weight
0.05kg
Contact us for the latest pricing and discount information
Stella
Sales Manager:
Send an email:
Contact in Whatsapp:
Construction, Interfaces, and Safety Features

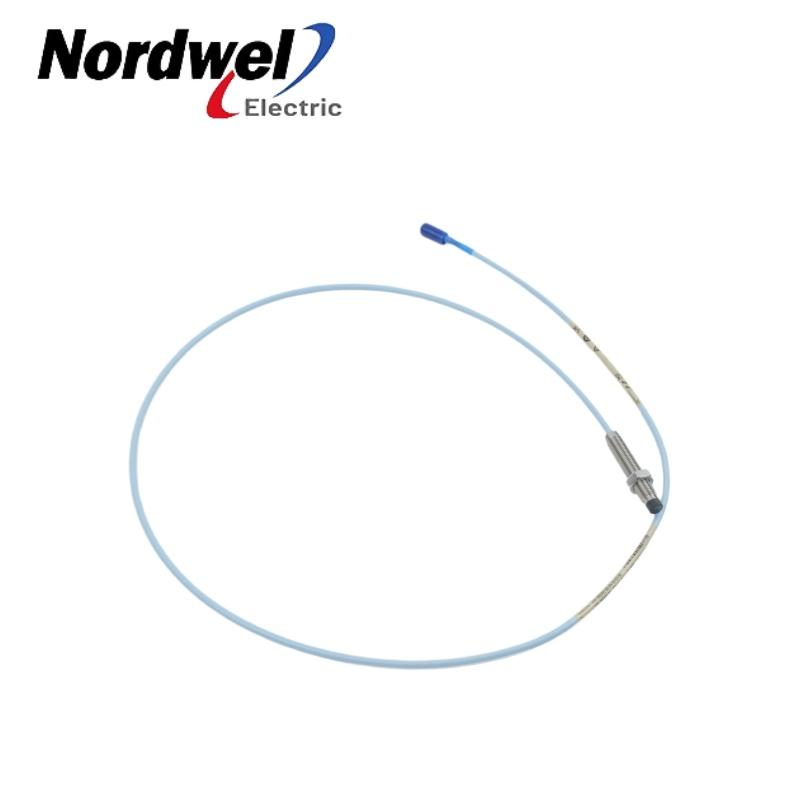

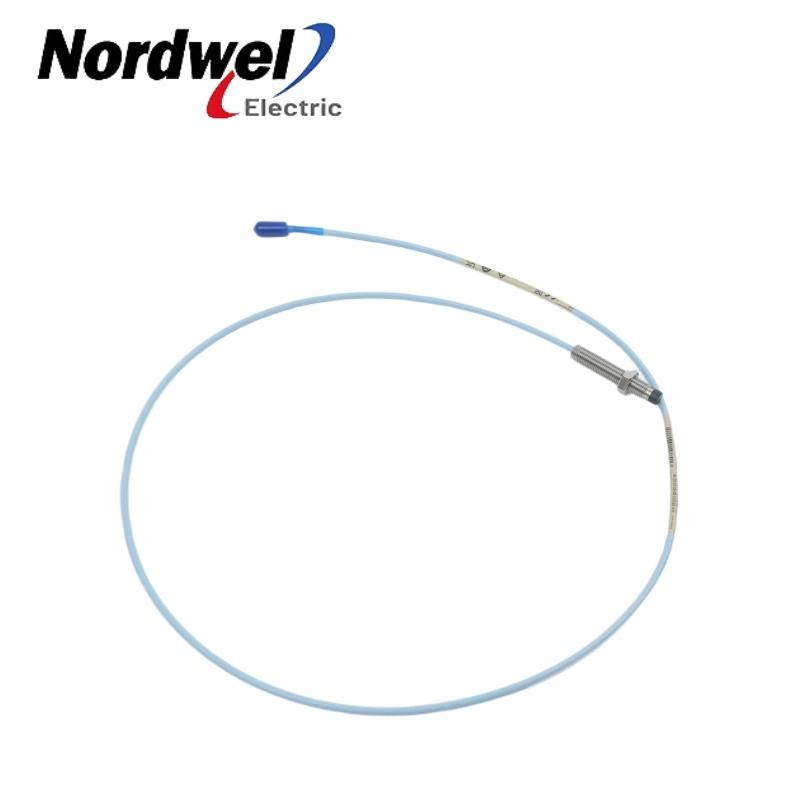

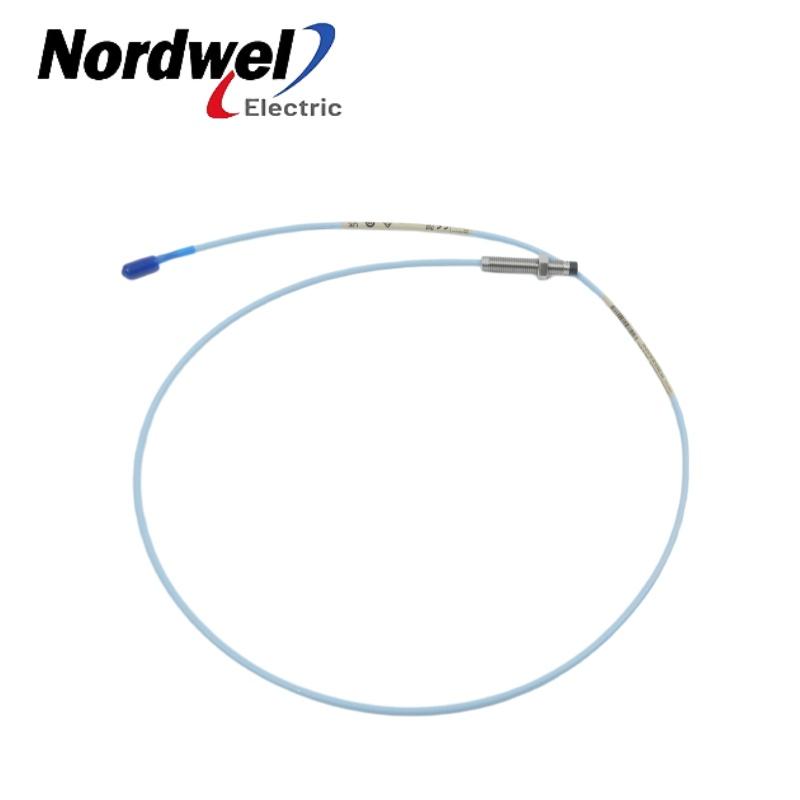

Construction: This is a 3300 XL 8 mm probe with a 3/8-24 UNF thread, without armor. It features a 3.0-inch unthreaded length (option 30) and a 6.0-inch overall case length (option 60). The extended unthreaded section provides greater flexibility for mounting in deep bore applications. The probe is constructed with a PPS tip and a stainless steel case.
Interfaces: The probe has a 1.0-meter total length (option 10) and uses a standard miniature coaxial ClickLoc connector (option 02). The gold-plated ClickLoc connector ensures reliable signal transmission and a secure, tool-free connection.
Safety Features: This model carries multiple hazardous area approvals (option 05), including CSA, ATEX, and IECEx certifications. It is fully API 670 compliant. The Viton® O-ring seals differential pressure between the probe tip and case. The extended case length and unthreaded section make this probe suitable for applications requiring deeper insertion into the machine casing while maintaining full safety certifications.
|
