Item NO.:
330102-25-40-10-02-0Part Number:
330102-25-40-10-02-05Weight:
0.15kgDimensions:
1.5x1.3x117cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

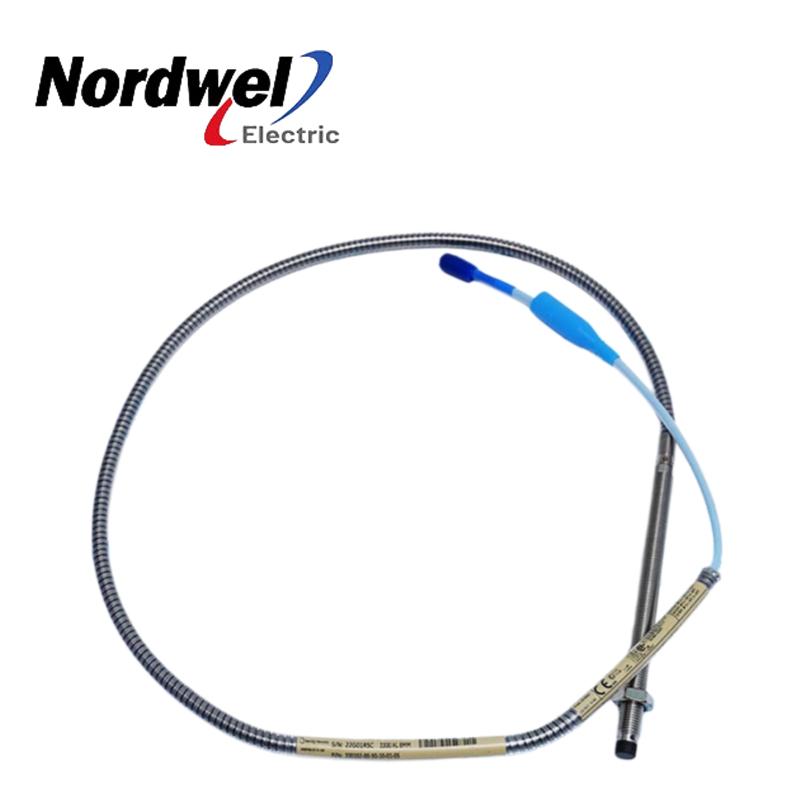

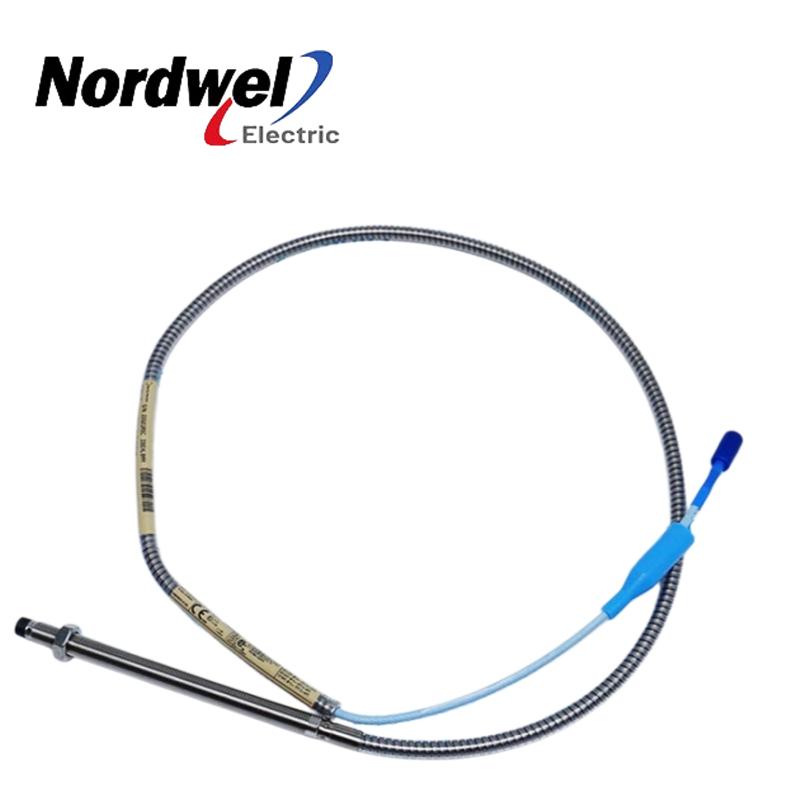

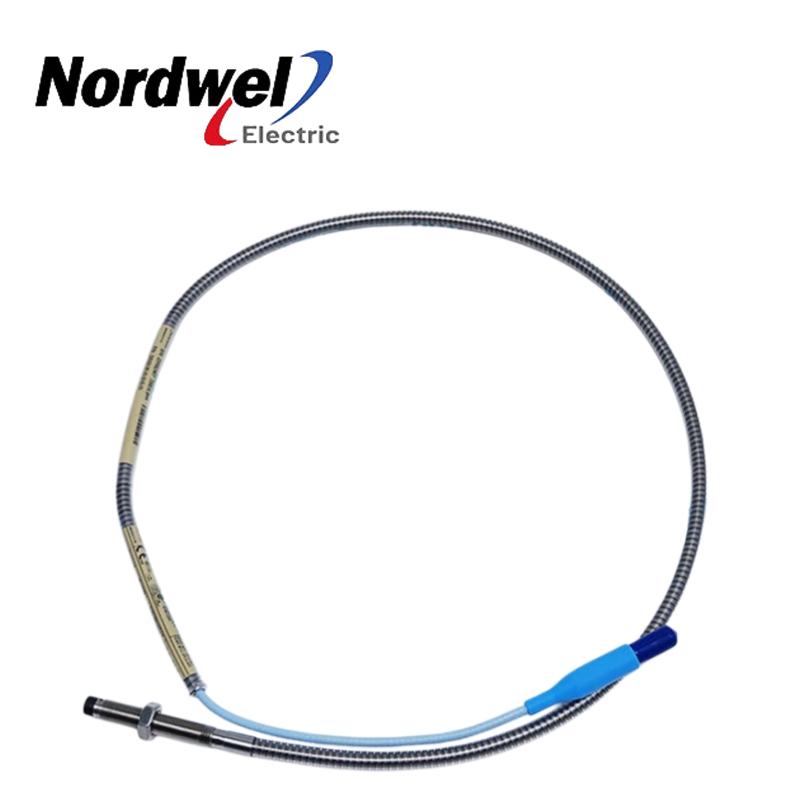

3300 XL 8 mm Proximity Probes
Product Information
|
Model Number: |
330102-25-40-10-02-05 |
|
Description: |
3300 XL 8 mm Proximity Probes |
|
Condition: |
100% Original |
|
Certificate: |
COO |
Sales Manager:
Stella
Send an email:
Contact in Whatsapp:
Specifications
Product Type: 3300 XL 8 mm Proximity Probe with armor
Thread Type: 3/8-24 UNF
Unthreaded Length: 2.5 inches (25 = 2.5 in)
Overall Case Length: 4.0 inches (40 = 4.0 in)
Total Probe Length: 1.0 meter (3.3 feet) – Code 10
Connector Type: Miniature coaxial ClickLoc™, standard cable (Code 02)
Agency Approvals: CSA, ATEX, IECEx for hazardous locations (Code 05)
Armor: Included – flexible AISI 302/304 stainless steel with FEP outer jacket for enhanced cable protection
Tip Material: Polyphenylene sulfide (PPS)
Case Material: AISI 303 or 304 stainless steel
Sealing: Viton® O-ring for differential pressure sealing
Tensile Strength: 330 N (75 lbf) pull strength (CableLoc™ design)
Output Sensitivity: 7.87 V/mm (200 mV/mil) ±5% over linear range
Linear Range: 2 mm (80 mils) – from 0.25 mm to 2.3 mm (10 to 90 mils)
Recommended Gap: 1.27 mm (50 mils) for radial vibration, output -9 Vdc
Frequency Response: 0 to 10 kHz (+0, -3 dB) with up to 305 m field wiring
Operating Temperature (Probe): -52°C to +177°C (-62°F to +350°F)
Storage Temperature (Probe): Same as operating range
Humidity Performance: <3% change in Average Scale Factor at 93% RH per IEC 68-2-3
Standards Compliance: API 670 (4th edition), CE, RoHS, FCC Part 15
Hazardous Area Approvals: CSA (Class I, Zone 0 / Div 1), ATEX (Ex ia IIC), IECEx – suitable for gas and dust environments
Typical Applications: Radial vibration and axial position monitoring on fluid-film bearing machines, Keyphasor reference, speed measurement, and overspeed protection
Interchangeability: Fully interchangeable with other 3300 XL 8 mm and non-XL 3300 series components without bench calibration
