Brand:
Bently NevadaPart Number:
330102-30-65-10-02-00Weight:
0.15kgDimensions:
1.6x1.3x112cmPlace of Origin:
USACertification:
CO,CQDescription:

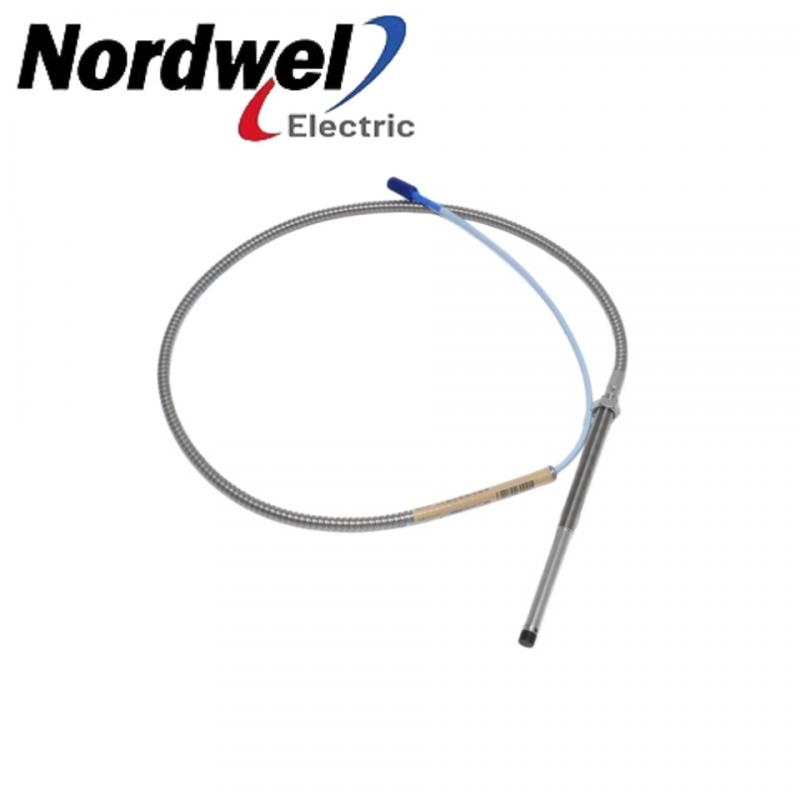

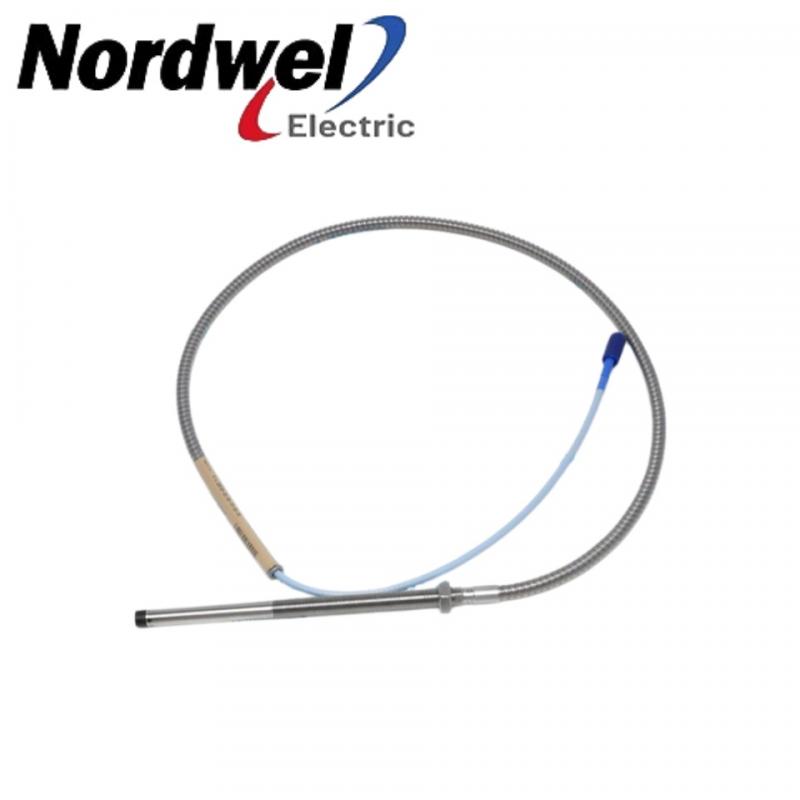

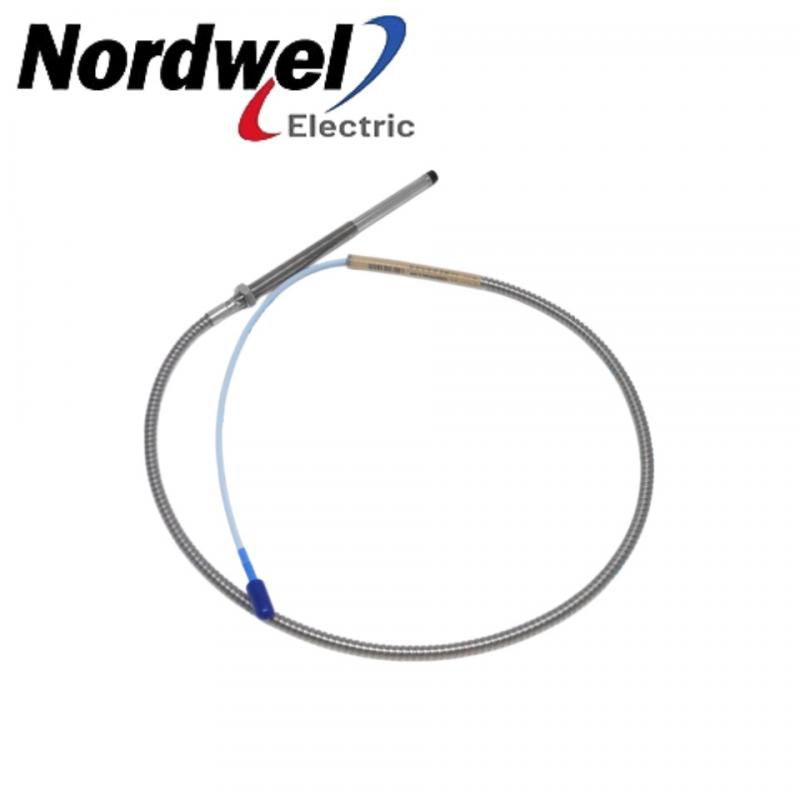

Bently Nevada 330102-30-65-10-02-00 3300 XL 8 mm Proximity Probes
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Bently Nevada |
|
Part number |
330102-30-65-10-02-00 |
|
Description |
Bently Nevada 330102-30-65-10-02-00 3300 XL 8 mm Proximity Probes |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 330102-30-65-10-02-00 in stock!!!
Product Description
The 330102-30-65-10-02-00 is commonly installed on machines that use fluid-film bearings where accurate condition monitoring is required.This model is fitted with an armored cable to provide additional protection in applications where the cable may be exposed to vibration, rubbing, or frequent movement. The sensing tip is made from PPS and is combined with a stainless steel probe body. Bently Nevada's TipLoc construction permanently secures the probe tip to the housing, while the CableLoc design improves the strength of the cable connection, helping the assembly remain reliable during long periods of operation.Electrical connection is made through gold-plated ClickLoc connectors, which lock securely into place and do not require special tools during installation. Once connected, the locking mechanism helps keep the connection stable even on equipment that operates under constant vibration. The connector system is also available with additional environmental protection to improve resistance to moisture and contamination when installed in demanding industrial locations.The probe works with compatible 3300 XL extension cables and Proximitor sensors and can be exchanged with other standard components in the same system without matching individual parts or performing separate calibration.
Parameter Information
Probe Diameter: 8 mm
Initial Air Gap: Approximately 1.27 mm
Cable Type: Armored cable
Connector Type: Gold-plated ClickLoc connector
Probe Construction: TipLoc molded probe tip with CableLoc cable retention
Interchangeability: Individual system components can be replaced without matching or bench calibration
FAQ
What connector does the 330102-30-65-10-02-00 use?
It uses a gold-plated ClickLoc connector.
Can the 330102-30-65-10-02-00 measure shaft vibration?
Yes. It is suitable for shaft vibration and shaft position monitoring.
Can the 330102-30-65-10-02-00 be used for speed measurement?
Yes. It can also be used for rotational speed and Keyphasor applications.
Application
|
