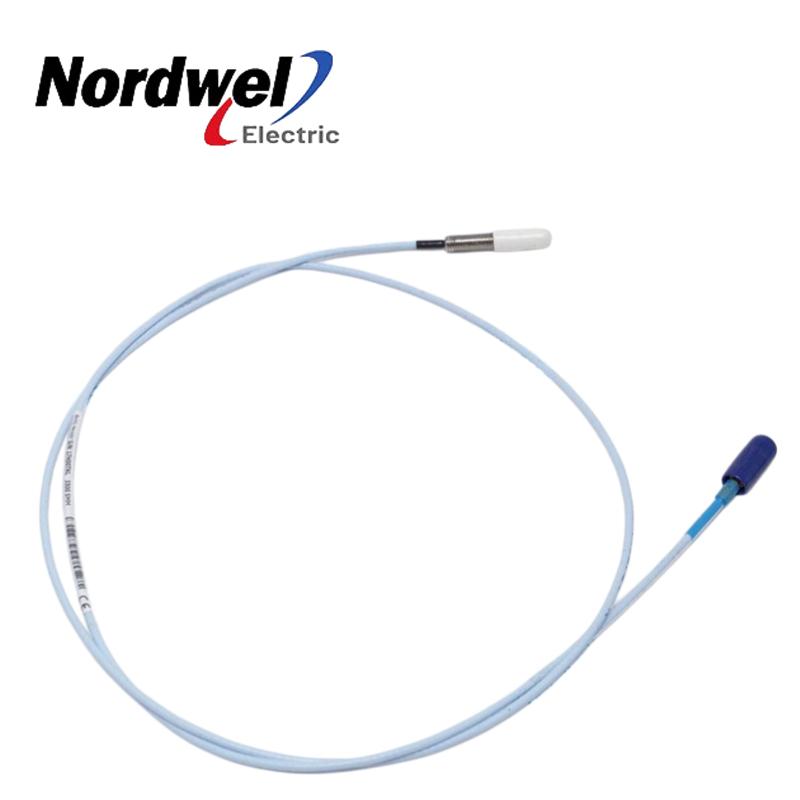

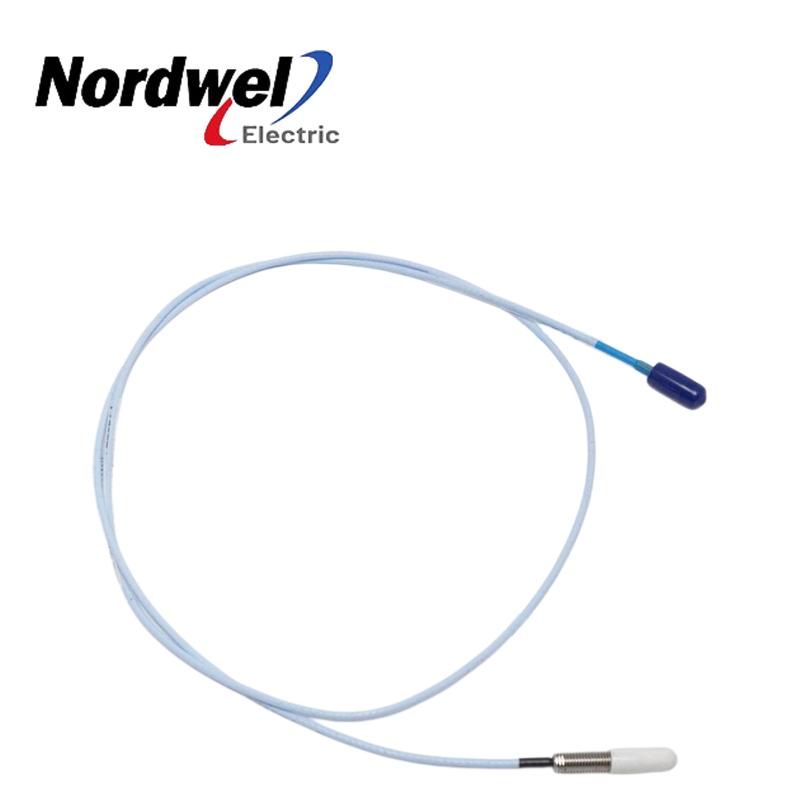

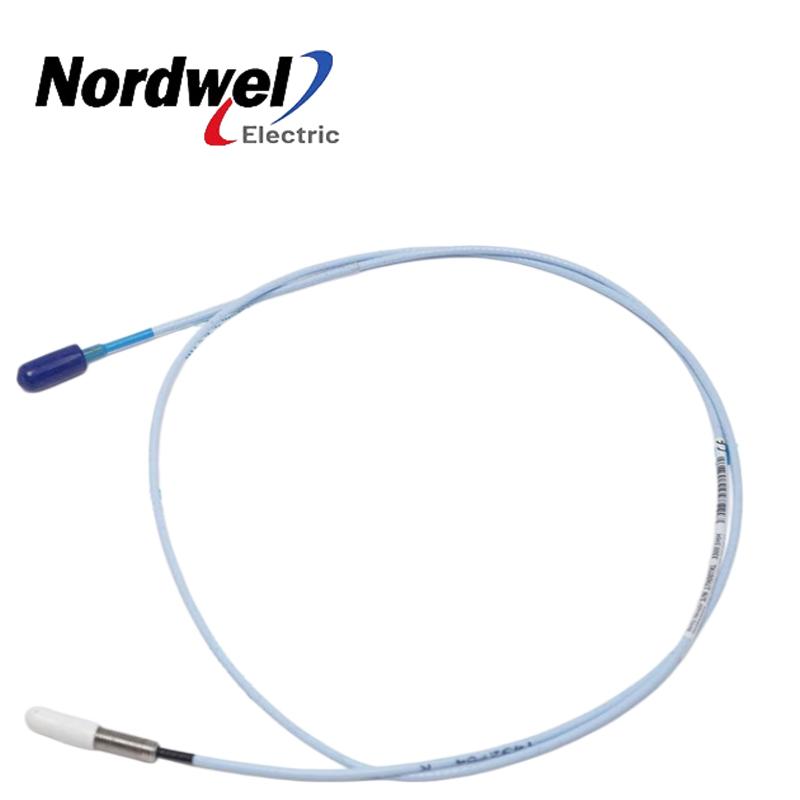

Name: Bently Nevada 330171-00-08-10-02-05 3300 5 mm Proximity Probes
Availability: InStock

Certificates & Compliance

Hazardous Area Approvals: The complete 3300 Proximity Transducer System (including the probe, extension cable, and Proximitor sensor) is available with CSA, ATEX, and IECEx certifications for use in explosive atmospheres in industries such as petrochemicals, oil and gas, and mining .
Intrinsic Safety: Suitable for Zone 0/1/2 (ATEX) and Class I, Division 1 (CSA) classified locations, with intrinsically safe design when installed with proper barriers and CE compliance for explosive atmospheres .
General Compliance: CE and RoHS certified to meet international safety and environmental standards.
System Certification Number: The ATEX approval for 3300 series monitoring systems is BN26744C-55A, requiring the monitor rack to be installed in a weatherproof housing.
Manufacturing Standard: ISO 9001 certified facility.

Environmental Conditions

Operating Temperature (Probe): -52°C to +177°C (standard) / +218°C (probe tip) / +260°C (cable) — designed for high-temperature industrial scenarios .
Operating Temperature (Proximitor): -51°C to +100°C / -35°C to +85°C .
Storage Temperature: -52°C to +105°C / -40°C to +85°C .
Humidity: <3% ASF change at 93% RH.
Sealing: Viton® O-ring for effective pressure sealing (not pressure tested).
Protection Class: IP67 (when properly installed) for the probe assembly.
Altitude: Maximum 2000m.
Shock Resistance: 100 G (non-operating) for the transducer system.
Vibration Resistance: Up to 20 G (operating).
Harsh Environment Design: Engineered for turbines, compressors, pumps, motors, offshore platforms, and power generation applications.

Bently Nevada 330171-00-08-10-02-05 3300 5 mm Proximity Probes
