Brand:
Bently NevadaItem NO.:
330180-X1-05 MOD：145Part Number:
330180-X1-05 MOD：145004-17Weight:
0.2kgDimensions:
8.8x3.5x7cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

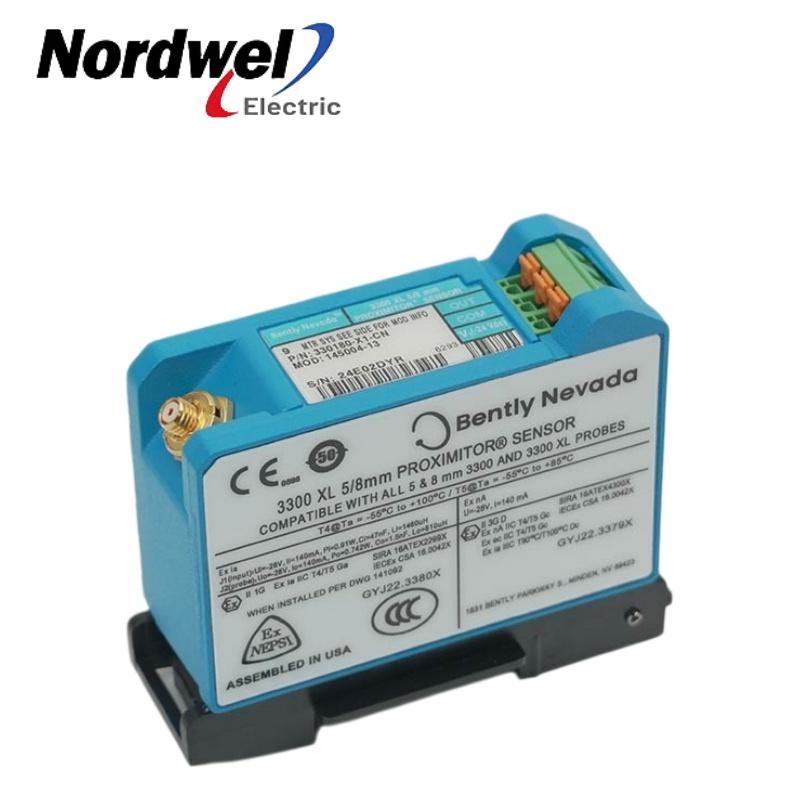

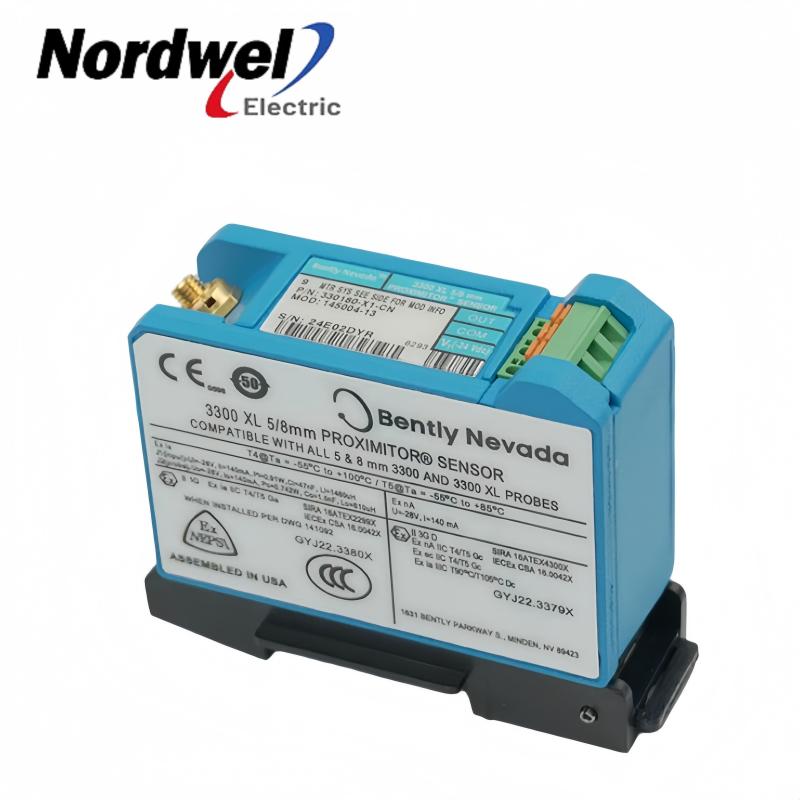

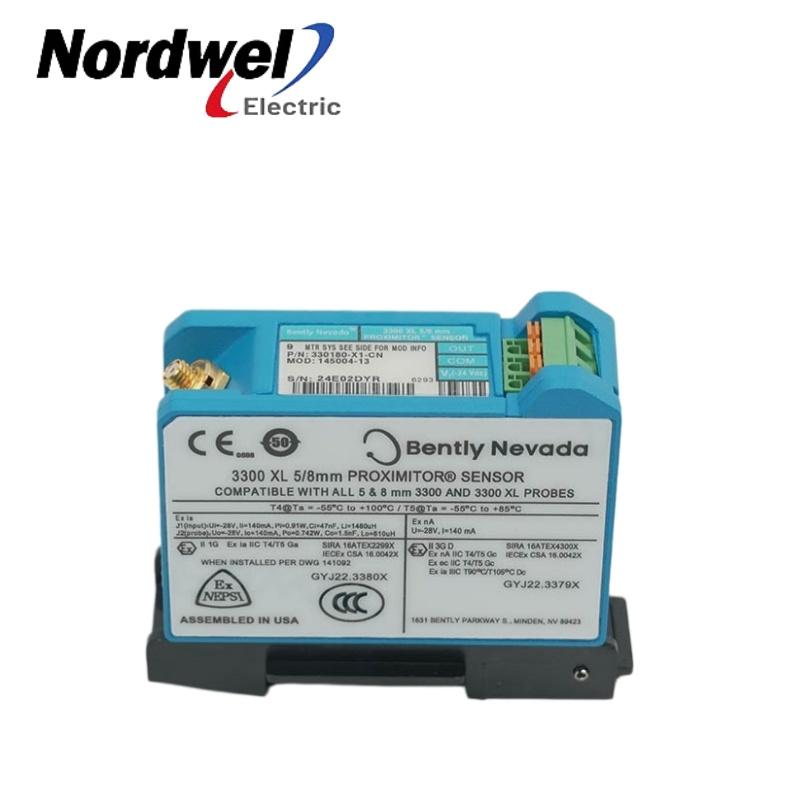

3300 XL Proximitor Sensor
Product Information
Model number
330180-X1-05 MOD：145004-17
Country of origin
USA
Condition
Brand New
Lead time Warranty
in stock
Dimensions
8.8x3.5x7cm
Weight
0.2kg
Contact us for the latest pricing and discount information
Stella
Sales Manager:
Send an email:
Contact in Whatsapp:
Theory of Operation
The 330180-X1-05 MOD:145004-17 is a 3300 XL Proximitor Sensor, the signal conditioning core of the 3300 XL 8 mm Proximity Transducer System. It receives raw eddy current signals from a compatible 3300 XL 8 mm probe and extension cable, processes the detected gap change between the probe tip and the conductive shaft surface, and converts it into a proportional DC output voltage. This output simultaneously tracks both static shaft position and dynamic vibratory motion. The "X1" denotes a 5.0-meter system length with DIN-rail mounting, while "05" indicates CSA, ATEX, and IECEx hazardous area approvals. The MOD:145004-17 suffix represents a specific factory configuration variant. With a nominal sensitivity of 7.87 V/mm (200 mV/mil) and a 2.0 mm linear range, it fully complies with API 670 for mechanical configuration, accuracy, and temperature stability. The sensor offers SpringLoc terminal strips for robust field wiring, high RFI/EMI immunity for installation in fiberglass housings without shielded conduit, and supports both panel and DIN-rail mounting.
|
