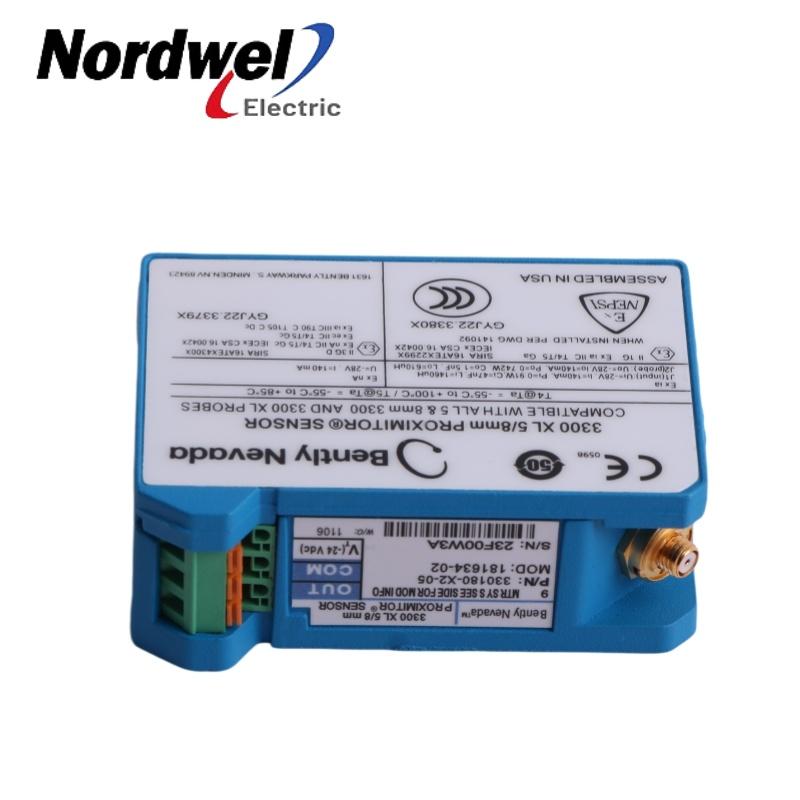

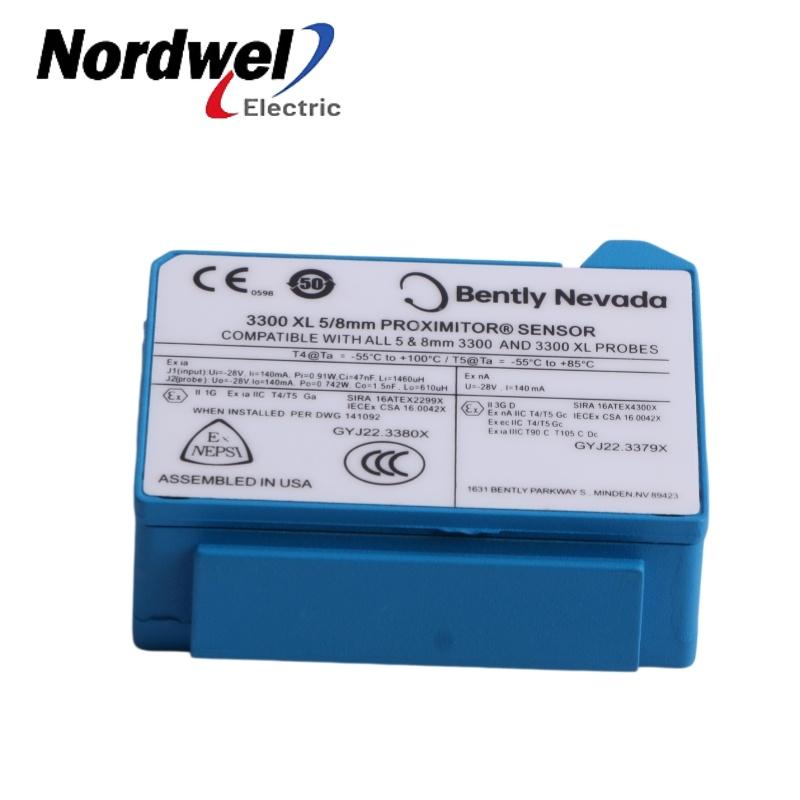

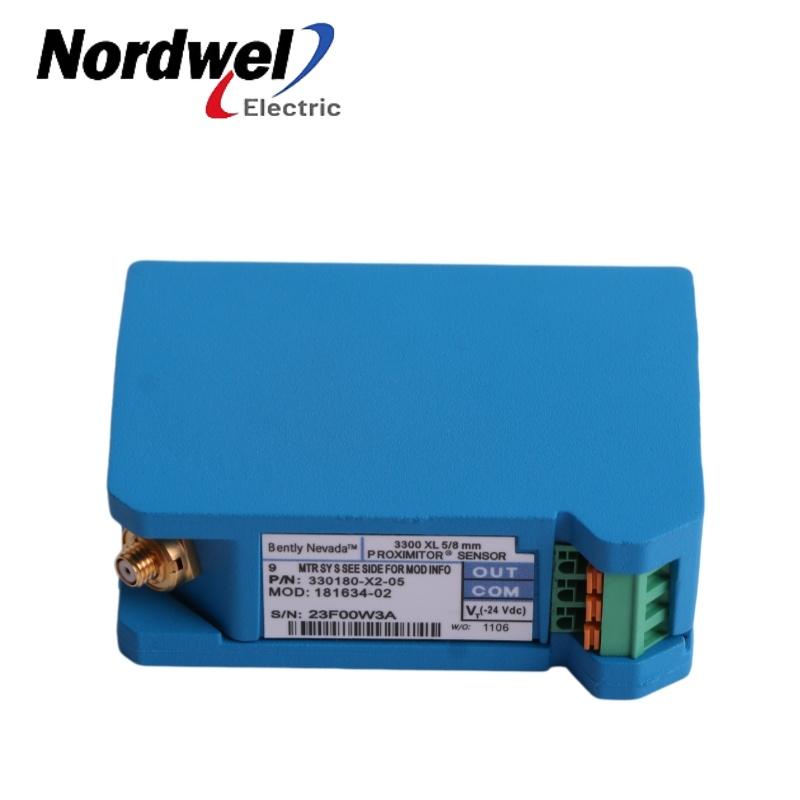

3300 XL Proximitor Sensor
Product Information
|
Model number |
330180-X2-05 MOD: 163358-02 |
|
Country of origin |
USA |
|
Condition |
Brand New |
|
Lead time Warranty |
in stock |
Contact us for the latest pricing and discount information
Stella
Sales Manager:
Send an email:
Contact in Whatsapp:
Detailed Technical Specifications of the 330180-X2-05 MOD: 163358-02
Model decoding – 330180 = 3300 XL Proximitor Sensor. X2 = 5.0 meters (16.4 feet) system length with no mounting hardware (bare sensor without panel-mount pad or DIN clips). 05 = multiple agency approvals (CSA, ATEX, IECEx). MOD: 163358-02 = manufacturer’s internal configuration or calibration variant for this specific Proximitor sensor.
General – The 3300 XL Proximitor Sensor is the signal-conditioning component of the 3300 XL 8 mm Proximity Transducer System. It accepts one non-contacting 3300‑series 5 mm or 3300 XL 8 mm probe and extension cable, converting the probe’s RF signal into a DC voltage proportional to the probe-to-target gap. The sensor provides both static (position) and dynamic (vibration) measurements for fluid‑film bearing machines, Keyphasor reference, and speed applications.
Electrical specifications – Input: accepts one 3300‑series 5 mm or 3300 XL 8 mm probe and extension cable. Power: requires –17.5 Vdc to –26 Vdc without barriers at 12 mA maximum consumption; –23 Vdc to –26 Vdc with barriers. Operation above –23.5 Vdc may reduce linear range. Supply sensitivity: <2 mV output change per volt input change. Output resistance: 50 Ω. Output bias voltage: approximately –9 Vdc at recommended gap (1.27 mm / 50 mils). Output signal: analog voltage proportional to measured gap/displacement.
Mechanical specifications – Housing material: A308 aluminum. Weight: 246 g (8.67 oz) typical. Dimensions: approximately 76 mm × 51 mm × 32 mm. The X2 option (no mounting hardware) means the sensor is supplied without a panel-mount pad or DIN-rail clips – these must be ordered separately if needed. Panel-mount configuration uses a 4‑hole mounting pattern with M3.5 or #6 screws.
Environmental limits – Operating temperature: –52 °C to +100 °C (–62 °F to +212 °F). Storage temperature: –52 °C to +105 °C (–62 °F to +221 °F). Relative humidity: 100% condensing, non‑submersible when connectors are protected; tested to IEC 68‑2‑3 damp heat. RFI/EMI immunity: meets European CE mark approvals without special shielded conduit or metallic housings.
Certifications – SIL 2 (HFT = 0) / SIL 3 (HFT = 1) functional safety. FCC Part 15 compliant. EMC: EN 61000‑6‑2 (Immunity for Industrial Environments) and EN 61000‑6‑4 (Emissions for Industrial Environments). RoHS compliant (EU Directive 2011/65/EU). China RoHS: EFUP 15 years per SJ/T 11364‑2024. Maritime: 2019 Rules for Conditions of Classification. Hazardous area: cNRTLus (Class I, Zone 0/2; Div 1/2) and ATEX/IECEx (Ex ia IIC T4/T5 Ga; Ex na IIC T4/T5 Gc).
Special features – SpringLoc terminal strips require no special tools and eliminate screw-type clamping mechanisms that can loosen. The sensor is backward-compatible with non-XL 3300‑series 5 mm and 8 mm components. The 05 approval option provides CSA, ATEX, and IECEx certifications for global hazardous area installations. The 163358‑02 modification code indicates a specific factory configuration or calibration variant.
|
