Item NO.:
74712-06-12-04-CNPart Number:
74712-06-12-04-CNWeight:
0.05kgDimensions:
1.2x1x112cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

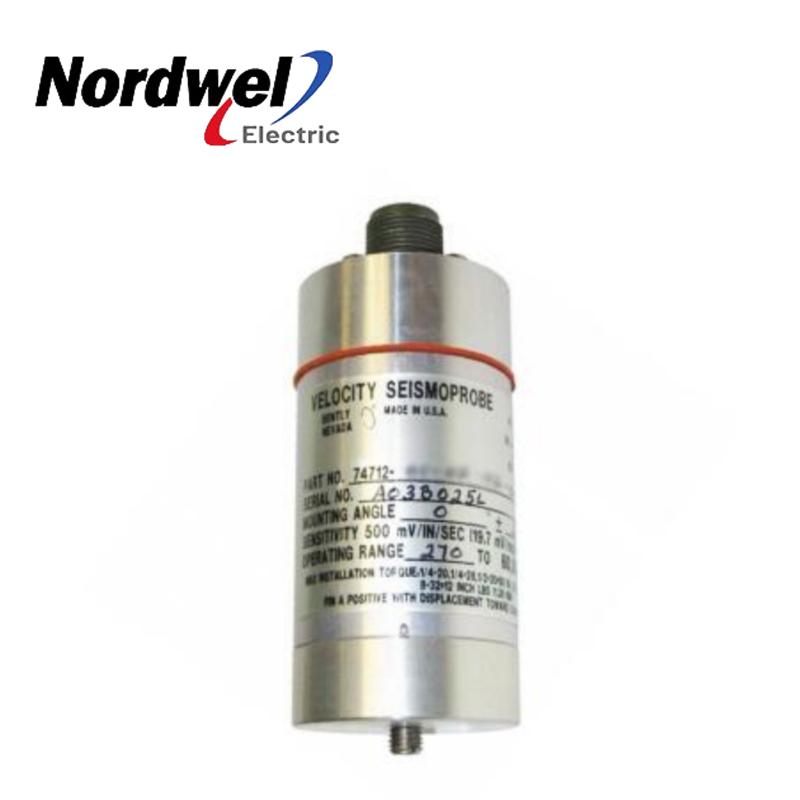

High-temperature two-wire transducer
Product Information
|
Model Number: |
74712-06-12-04-CN |
|
Description: |
High-temperature two-wire transducer |
|
Condition: |
100% Original |
|
Certificate: |
COO |
Sales Manager:
Stella
Send an email:
Contact in Whatsapp:
Specifications
Product type: High-temperature, loop-powered two-wire velocity transducer (moving-coil seismoprobe) for absolute bearing housing, casing, and structural vibration monitoring.
Part number breakdown:
74712 – High-temperature two-wire series (high-temp version of 9200 Seismoprobe)
06 – Mounting angle 0° ±100; minimum operating frequency 10 Hz (600 cpm)
12 – Isolated circular mounting base with ½‑in 20 thread
04 – Side-mount connector
CN – Country‑specific approvals (China)
Output signal: 4‑20 mA loop‑powered
Supply voltage: 12‑30 VDC
Frequency range: 0 – 100 Hz (0 – 6,000 RPM) with flat response
Measurement span: Up to 1.0 in/sec peak
Sensitivity: Approximately 500 mV/in/sec
Accuracy: ±2% of reading
Operating temperature: -40°C to +120°C (-40°F to +248°F)
Storage temperature: -50°C to +150°C (-58°F to +302°F)
Ingress protection: IP67 (dust-tight and submersible)
Shock survival: Withstands 100 g mechanical shock
Mounting base: Isolated circular base, ½‑in 20 UNF thread – isolates false casing vibrations
Connector type: Side‑exit connector for space‑constrained installations
Housing material: Stainless steel
Weight: 0.48 kg (shipping weight 1.5 kg)
Key features: Loop‑powered two‑wire design, zero‑speed measurement capability, isolated base, stainless steel construction
Approvals: Country‑specific (CN) – refer to Approvals Quick Reference Guide
Origin: Made in U.S.A. – Certificate of Origin (COO) available upon request
Lead time: 8 – 10 weeks
Typical applications: Gas turbine casings, steam turbine hot zones, high‑temperature compressors, process heaters, and other rotating machinery in extreme heat environments
