Part Number:
KJ1501X1-BC2 12P2186X042 VE5008Weight:
0.64kgDimensions:
4.2*11.1*16.6cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

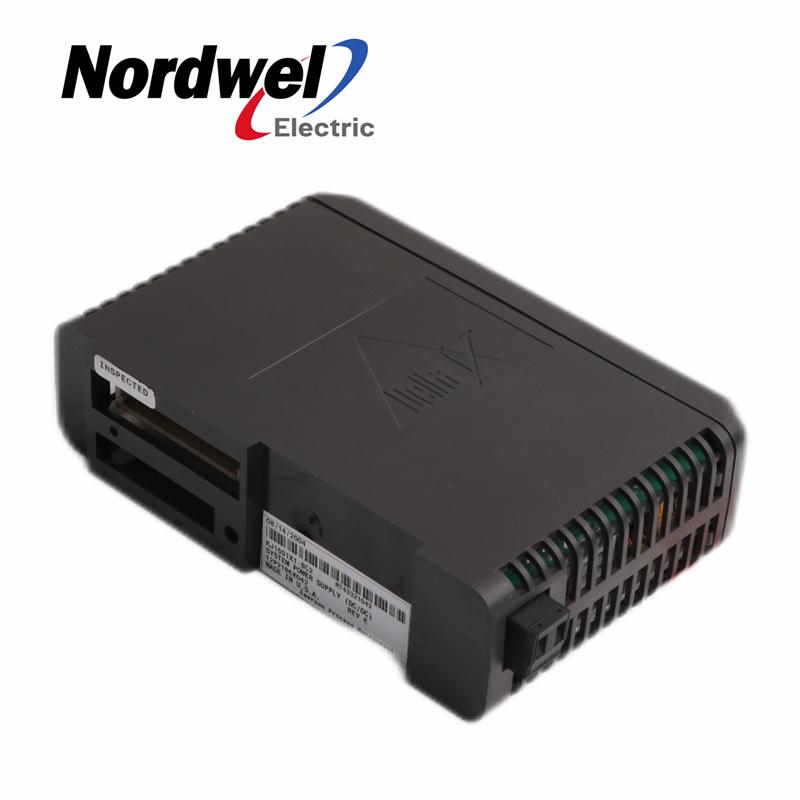

EMERSON KJ1501X1-BC2 12P2186X042 VE5008 System Dual DC Power Supply
Part Number: KJ1501X1-BC2 12P2186X042 VE5008
Manufacturer: EMERSON
Series: Delta V
Status: In stock
Full description:EMERSON KJ1501X1-BC2 12P2186X042 VE5008 System Dual DC Power Supply,
24/12 VDC DC to DC
System Power
Input
12 VDC 11.4 VDC to 12.6 VDC
24 VDC 20.4 VDC to 28.8 VDC
Output Power: 10 W total at 70° C (combined outputs of 5 VDC and 3.3 VDC)
Output rating: 12 VDC at 13 A max to 60° C or 12 VDC at 10 A max to 70° C (12 VDC input)
12 VDC at 4.5 A max to 60° C or 12 VDC at 3 A max to 70° C (24 VDC input)
5 VDC at 2.0 A
3.3 VDC at 2.0 A
Environmental Specifications
Ambient Temperature -40 to 70o C
Shock 10g ½ Sinewave for 11 msec
Vibration 1mm Peak to Peak from 5 to 16Hz;
0.5g from 16 to 150Hz
Airborne ISA-S71.04 ñ1985 Airborne
Contaminants Contaminants Class G3
Relative Humidity 5 to 95% Non-Condensing
Manager Stella quotes to you
we offer original new with 1 year warrenty
|
