Payment:
T/TPart Number:
1C31129G03Weight:
0.36kgDimensions:
5x10x16cmManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:
Module
Specifications

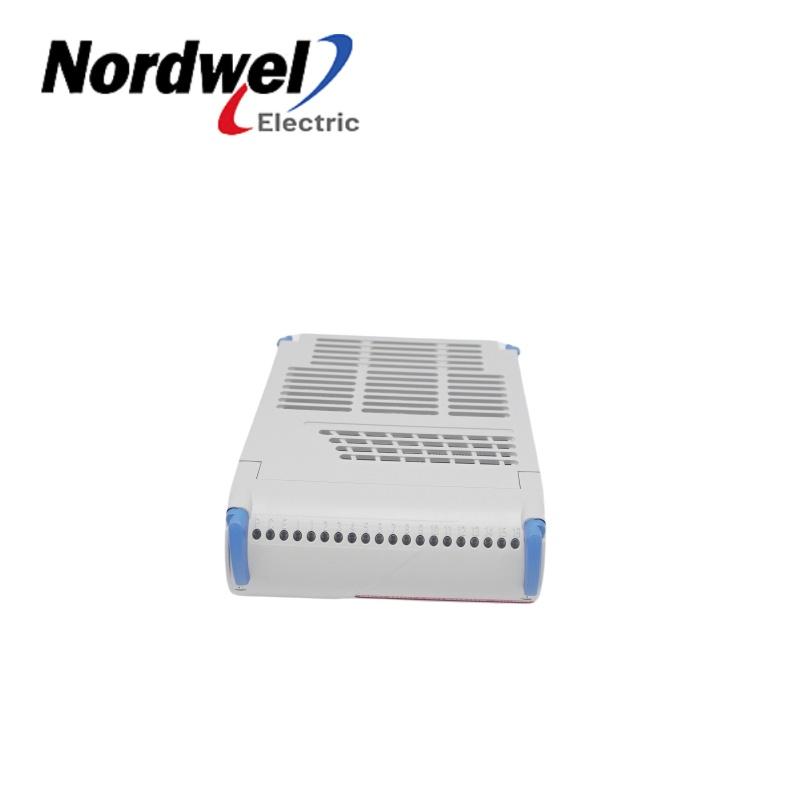

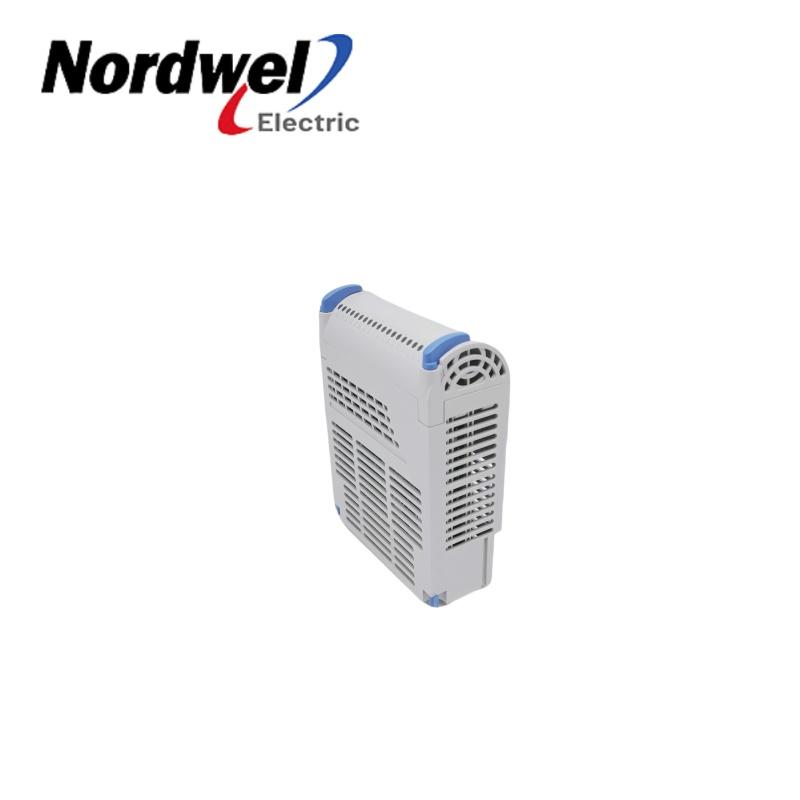

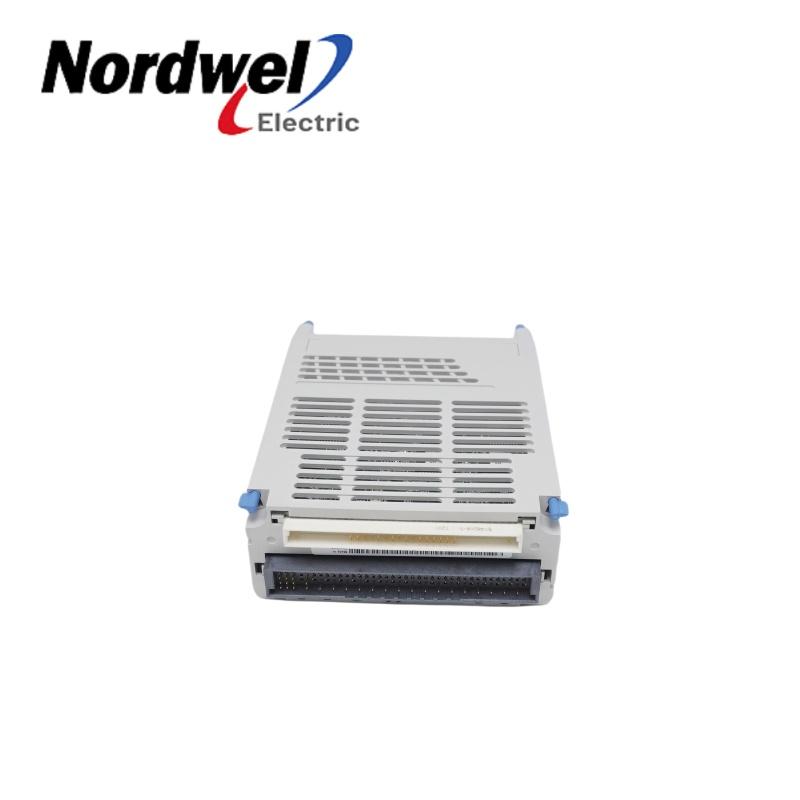

Model: 1C31129G03
Brand: Emerson
Condition: Brand New and Origin
Input range: 4-20mA, ±1mA, ±1V, ±5V, ±10V, ±20mV, 50mV, ±100V, ±250mV.
Resolution: 14 bits (including polarity).
Guaranteed accuracy: ±0.10% ±1/2LSB of full scale at 25°C, 99.7% confidence level.
Temperature coefficient: ±0.24% of full scale at 0-60°C.
Input impedance: 3.3MΩ when field-configured for G02 and G04; 200MΩ when field-configured for G03; 300MΩ when field-configured for G01 at 20mA.
Sampling rate: 16 times per second when configured for 50Hz; 20 times per second when configured for 60Hz.
Number of channels: 8 channels.
Self-calibration: Self-calibration can be performed as required by the Ovation controller.
Jenny
E-mail: sales3@mooreplc.com
Phone: +86 18020714662
Feature
Diagnostic functions: Internal module operation fault diagnosis, over-range detection, current input open loop detection.
Dielectric strength: 1000V AC/DC between channels and between channels and logic.
Common mode rejection ratio: 120dB at DC or nominal (50/60Hz) line frequency ±1/2% and harmonics; 100dB at nominal line frequency ±5% and harmonics.
Normal mode rejection ratio: 60dB at 50Hz±1/2% or 60Hz±1/2%; 30dB at 50Hz±5% or 60Hz±5%.
Working Mode
Module power: Main power typical 2.4W, maximum 3.125W; auxiliary power (when using 1C31227G01) voltage is 24V DC, typical 3.84W.
Operating temperature range: 0-60℃ (32-140℉).
Storage temperature range: -40-85℃ (-40-185℉).
Humidity: 0-95% (non-condensing).
High-performance analog output: It has 8 high-performance analog output channels to meet the needs of multi-channel analog signal output.
High precision and high resolution: The output resolution is 16 bits, with an accuracy of ±0.05%. It can output high-precision analog signals to ensure the accuracy and stability of control.
As a experienced team, we are professional at dealing with the inquiries and orders from different countries. Familiar with different culture, based on this, we can help you to import items on every procedure. Our company has a big team and large inventory, to ensure we can offer many automation spare parts to our customers. As long as you have the need, we are always online.
|
