Part Number:
014052-01 014079-01Weight:
1.36 kgDimensions:
9x16x12cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

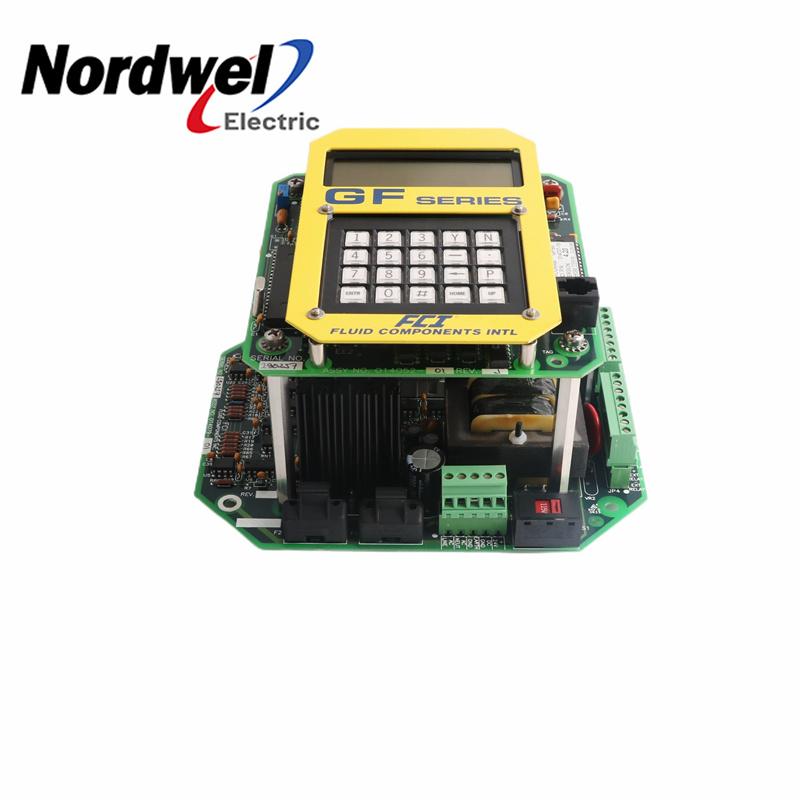

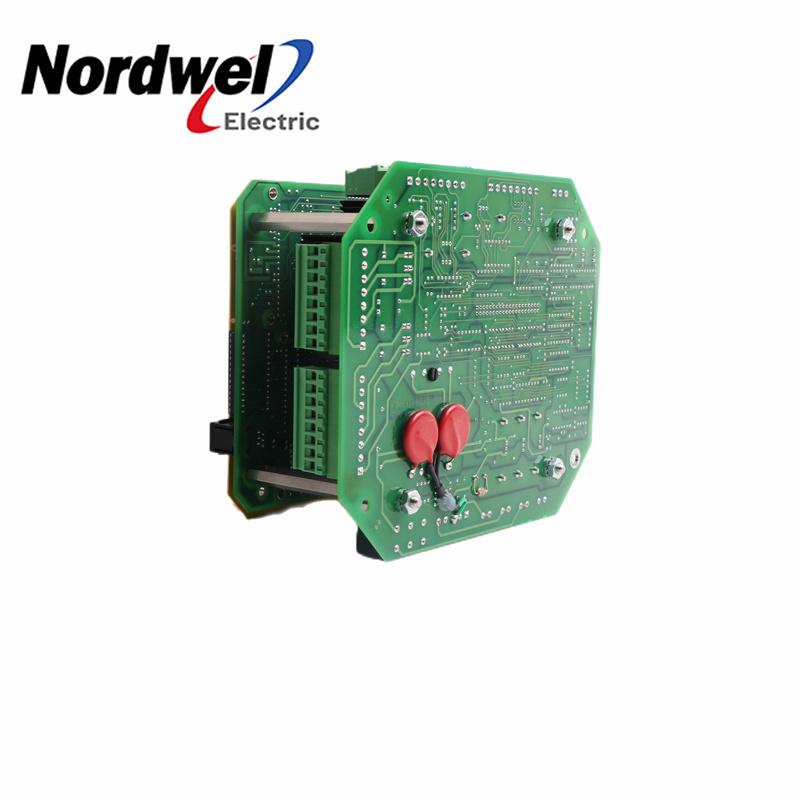

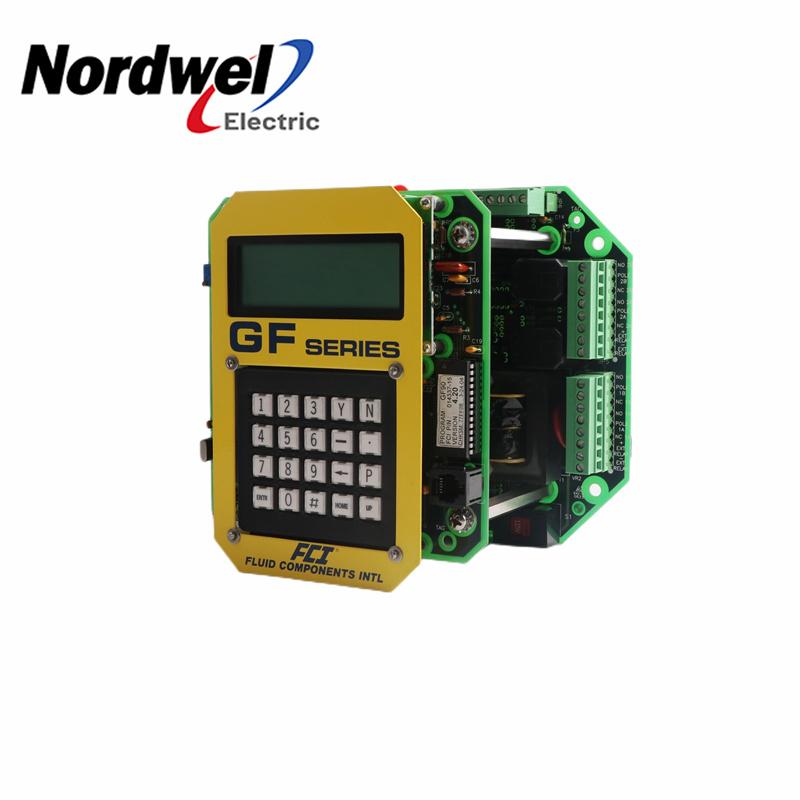

control interfaceTechnical Specifications for 014052-01 014079-01
|
|
|
|
Origin |
USA |
|
Status |
Brand New In Stock |
|
Year of Production |
2020-2022 available |
|
Shipment |
From Xiamen, China to Worldwide |
About 014052-01 014079-01
The flow element consists of 4 thermowells. The thermowells are hollow metal tubes that are braised together to make 2 pairs of thermowells. One thermowell pair contains the active Resistance Temperature Detector (RTD) and a heater. The other thermowell pair contains the reference RTD and an empty thermowell for thermal mass equalization.
The flow element consists of two pairs of thermowells of the same size, shape and mass. One pair contains
a platinum RTD and a heater element. The other pair contains one RTD. The RTD located next to the heater
element is called the active RTD. The other RTD is referred to as the reference RTD. Since the active RTD
is adjacent to the heater, the temperature at the walls of the thermowell are always above the temperature
of the process media. The temperature at the reference RTD is the temperature of the process media. When
the process media is flowing past the active RTD a quantity of heat is carried off into the flow stream. The
amount of heat taken from the active RTD is a function of the process media mass flow rate. A ∆T exists
between the two pairs of thermowells and a proportional ∆R exists between the active and the reference
RTDs. The ∆R is measured by the flow transmitter. The relationship of ∆T to the mass flow rate is
calculated by the flow transmitter and is converted into a signal or is sent to the flow transmitter's display.
