Payment:
T/TPart Number:
FBM202 P0926EQWeight:
0.3kgDimensions:
5.5x11x11.5cmManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:
Module
Specifications

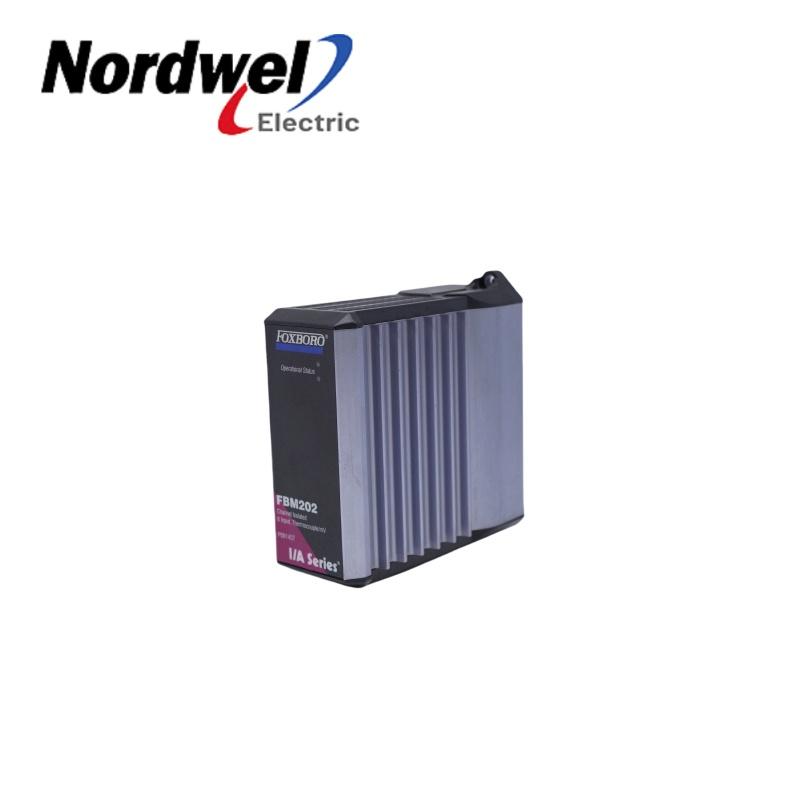

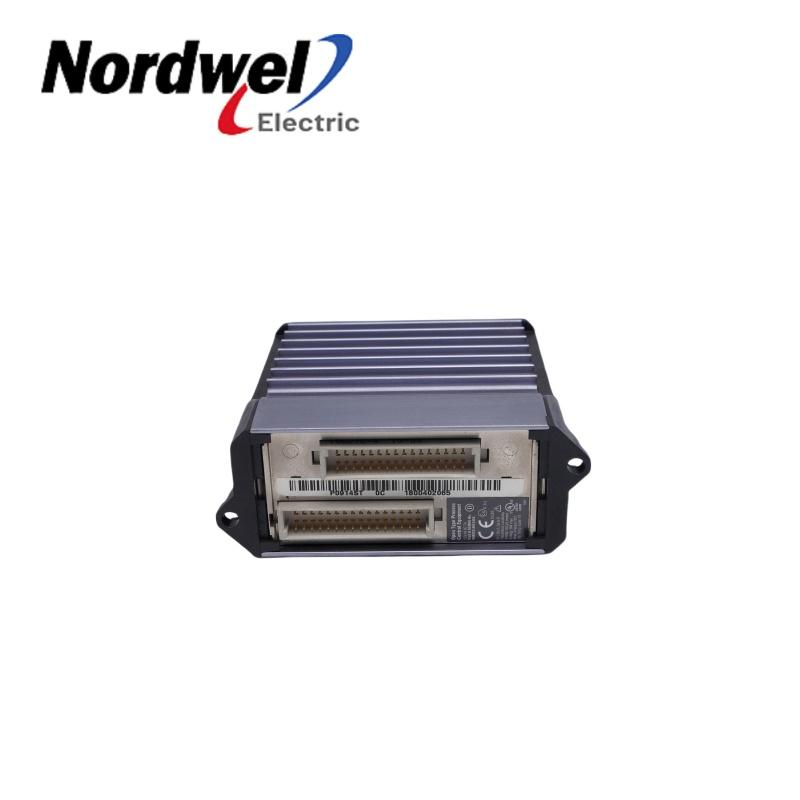

Model: FBM202 P0926EQ
Brand: Foxboro
Condition: Brand New and Origin
Signal input: The module has 8 thermocouple input channels and 1 isolated RTD reference junction compensation channel. It can accept a variety of standard thermocouple types, such as J, K, T, E, N, S, R, B, C, etc., for measuring signals in different temperature ranges. It can also accept millivolt signals from 0 to 100mV.
Signal conversion: Through Sigma-Delta data conversion technology, high-precision data conversion is achieved on a per-channel basis, and new analog input readings can be provided every 25ms. Thermocouple or millivolt signals can be accurately converted into digital signals for processing and monitoring by the control system.
Phone: +86 18020714662
E-mail: sales3@mooreplc.com
If FBM202 P0926EQ is not you need, just contact Jenny to get more information, we focus on offering discontinued automation spare parts!
Feature
Isolation protection: Each input channel is galvanically isolated from other channels and ground, with an isolation voltage of up to 1500VDC or 2500VRMS, effectively prevent signal interference and fault propagation, improve system reliability and stability.
Fault detection: With thermocouple burnout detection function, thermocouple faults can be detected in time to ensure safe operation of the system.
Working Mode
Configuration options: Analog input applications can be executed, and configurable options such as integration time and change rate limit are provided. Users can flexibly adjust the working parameters of the module according to actual application needs.
Fieldbus communication: The converted signal can be transmitted to the control system through the fieldbus, supporting fieldbus protocols such as Foundation Fieldbus (FF) or Profibus PA, and realizing communication and data sharing with other devices.
We use SF Express / DHL / Fedex / UPS / TNT to ship the product to our dear clients. The in-stock products usually can be shipped to your country within one week. Even if the product you need is obsolete, we'll still try our best to look for you, because we have many cooperative suppliers. We imported products from their original countries, so you don't need to worry its quality.
|
