A two-slot 40 W universal-backplane power supply accepting wide-range AC or DC input and providing front-panel power, fault, overload and overtemperature indication.
Brand:
General ElectricGoods Stock:
1Part Number:
IC695PSA040KDescription:
A two-slot 40 W universal-backplane power supply accepting wide-range AC or DC input and providing front-panel power, fault, overload and overtemperature indication.Provides backplane power from AC or high-voltage DC input.
Requires two adjacent universal-backplane positions.
Power, fault, overload and overtemperature LEDs support checks.
K remains part of the receiving identity.
| Base catalogue number | IC695PSA040 |
|---|---|
| Nominal input | 120/240 VAC or 125 VDC |
| Operating input range | 85–264 VAC or 100–300 VDC |
| Total output capacity | 40 W across backplane loads |

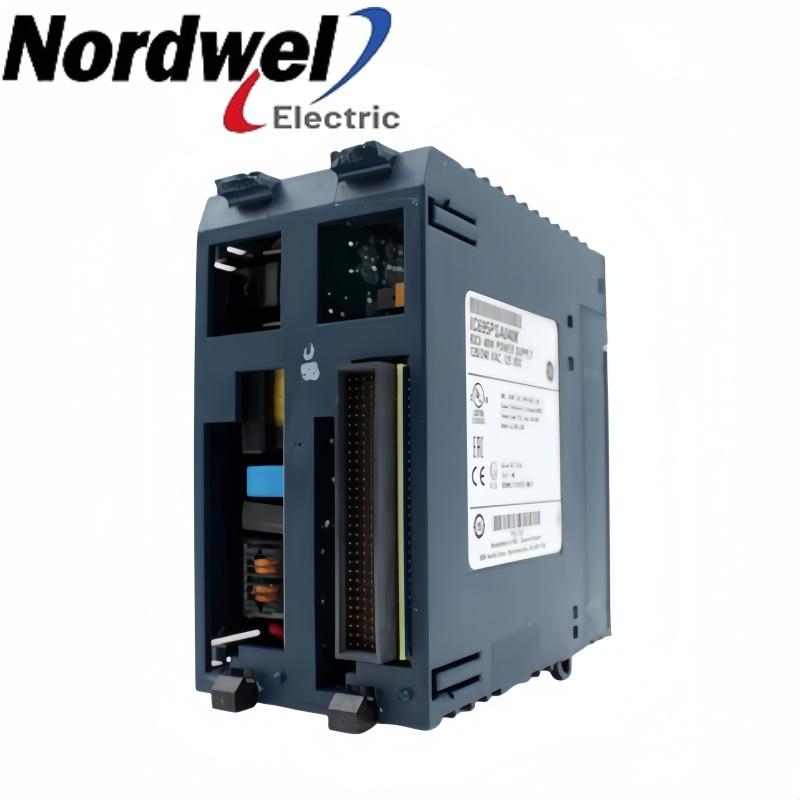

| Backplane occupancy | Two slots |
| Input-to-backplane isolation | 250 VAC continuous; 1500 VAC for 1 minute |
| Terminal wire range | AWG 14–22, one conductor per terminal |
| Load sharing / redundancy | Not supported |
| Operating temperature | 0 to 60 °C |
| Storage temperature | −40 to +85 °C |
| Relative humidity | 5% to 95%, noncondensing |
Values are limited to published Emerson/GE product, installation or release documentation. The complete suffix is retained for exact-model control.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Use this six-step review to keep quotation, compatibility and receiving decisions tied to the complete requested code.

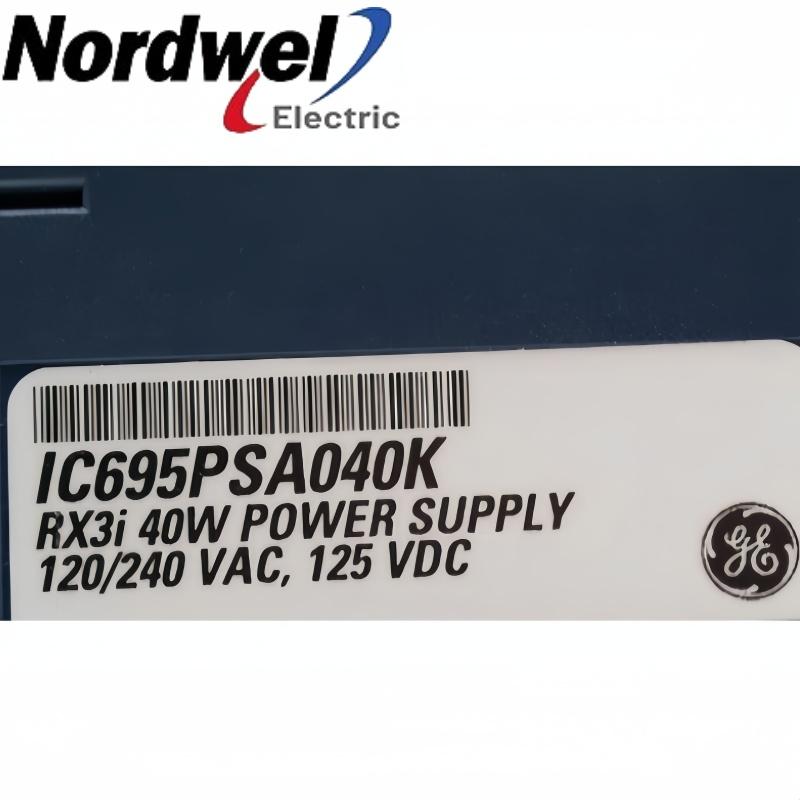

Use IC695PSA040K exactly as shown on the label or requisition.
Supplies up to 40 W to an RX3i universal backplane from 120/240 VAC or 125 VDC input power.
Identify the PACSystems RX3i universal backplane hardware and surrounding configuration.
Compare power, backplane, network, optical or firmware requirements as applicable.
Include environment, approvals, shutdown window and receiving inspection needs.
Send the evidence to Tiffany Guan for an exact-code quotation.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Industrial replacement reference for exact-model review.
Tiffany-verified targetIndustrial replacement reference for exact-model review.
Tiffany-verified targetIndustrial replacement reference for exact-model review.
Tiffany-verified targetIndustrial replacement reference for exact-model review.
Tiffany-verified targetIndustrial replacement reference for exact-model review.
Tiffany-verified targetIndustrial replacement reference for exact-model review.
Tiffany-verified targetModel-specific answers for compatibility, installation, replacement and commissioning questions.
Match the complete IC695PSA040K code.
Record the installed PACSystems RX3i universal backplane context.
Back up settings, firmware or network details where applicable.
Plan measurable checks before return to service.
The IC695PSA040 base supply accepts 85–264 VAC or 100–300 VDC, with nominal ratings of 120/240 VAC or 125 VDC.
The official specification lists 40 W total across the supported backplane loads; verify the complete rack load before installation.
It occupies two slots in an RX3i universal backplane.
No. Official data states that load sharing and redundancy are not supported for this base model.
Use AWG 14–22 conductors and one conductor per terminal, following the site wiring and torque procedure.
The official specification lists 250 VAC continuous input-to-backplane isolation and 1500 VAC for one minute.
Check Power, P/S Fault, Overload and Overtemperature status before releasing the rack to service.
No. Retain IC695PSA040K as the exact requested code and review any alternate revision against the installed system requirements.
The published operating range is 0–60 °C, storage is −40 to +85 °C, and humidity is 5%–95% noncondensing.
Send the full model, label photo, input source, rack load, quantity and destination for engineering review.
Directory links stay within Nordwel; use the contact block above for an exact-model review.
The checkpoint list supports enquiry preparation; the installed design and official instructions remain controlling.
A two-slot 40 W universal-backplane power supply accepting wide-range AC or DC input and providing front-panel power, fault, overload and overtemperature indication.
Supplies up to 40 W to an RX3i universal backplane from 120/240 VAC or 125 VDC input power.
Base catalogue number IC695PSA040; complete K suffix retained for exact-code procurement and replacement review.
A two-slot 40 W universal-backplane power supply accepting wide-range AC or DC input and providing front-panel power, fault, overload and overtemperature indication.
Use the complete order code for controlled maintenance and receiving.
Reduces ambiguity by retaining the complete suffix.
Keeps installation checks aligned with official parameters.
Supports faster quotation review with clear site evidence.
Creates a practical commissioning record for maintenance teams.
Use this reference to prepare the enquiry and installation package for IC695PSA040K.
