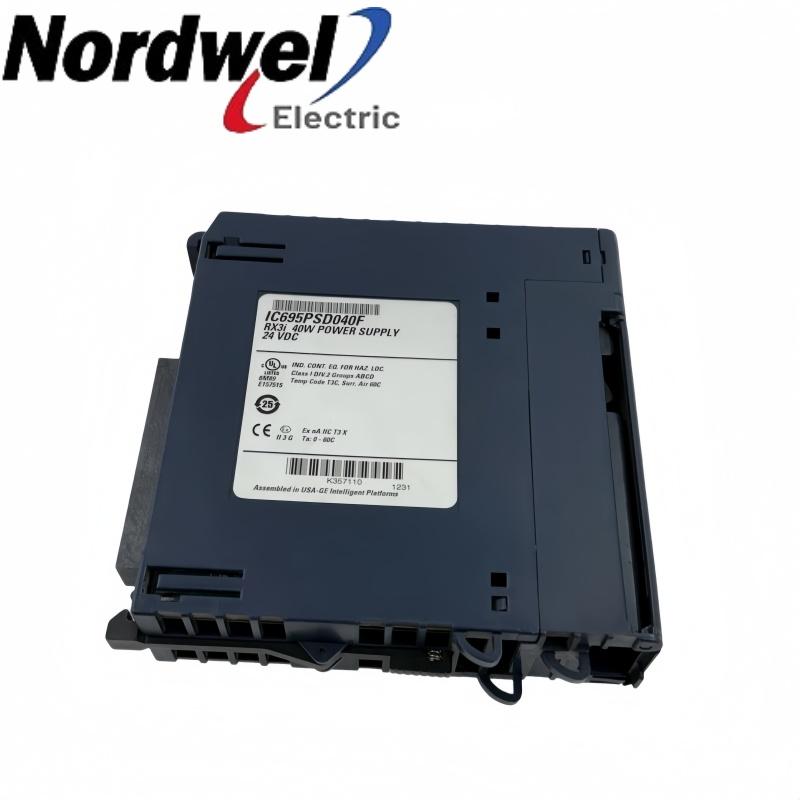

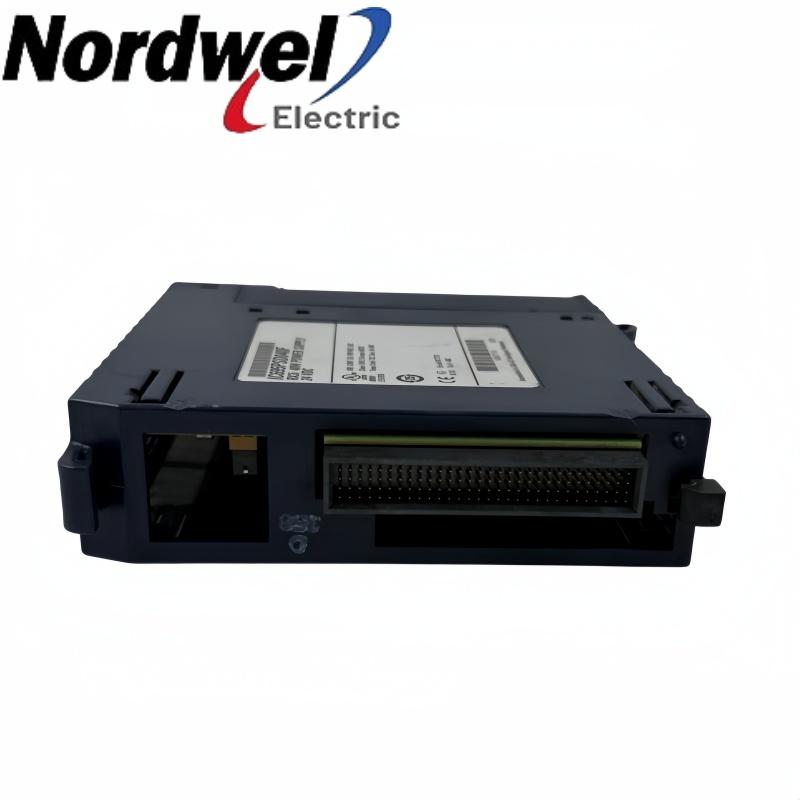

A single-slot 40 W power supply for PACSystems RX3i Universal Backplanes, designed for a nominal 24 VDC source and an operating input range of 18 to 30 VDC.
Brand:
General ElectricGoods Stock:
1Part Number:
IC695PSD040Certification:
UL, CE, ATEX, CCC, KC, Marine (ABS); approvals may be version-specificDescription:
PACSystems RX3i 40 W DC power supply, 24 VDC nominal input, 18–30 VDC operating range, one-slot Universal Backplane module.Emerson identifies IC695PSD040 as a 40 W DC power supply for PACSystems RX3i Universal Backplanes. It occupies one slot and accepts an 18 to 30 VDC input range.
| Product function | RX3i 40 W DC power supply |
|---|---|
| Compatible backplane | PACSystems RX3i Universal Backplane (IC695 series) |
| Slot occupancy | 1 slot |
| Nominal input voltage | 24 VDC |
| Operating input range | 18–30 VDC |
| Load capacity | 40 W total, all loads |
| Input-to-backplane isolation | None |
| Field wiring | 14–22 AWG; one wire per terminal |

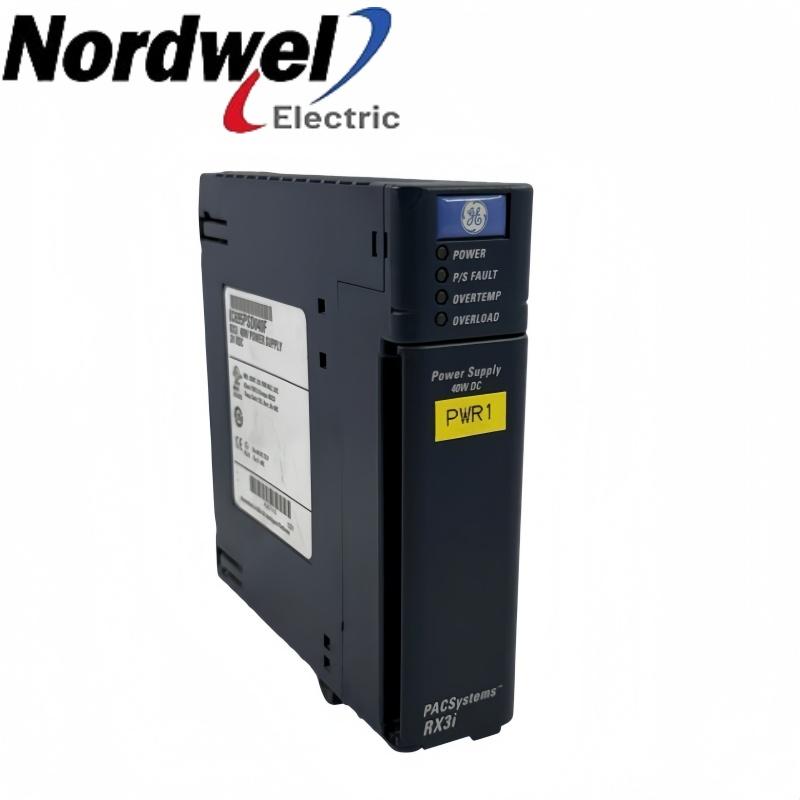

| LED indications | Power, P/S Fault, Overload, Overtemperature |
| Operating environment | 0–60°C at inlet; 5–95% RH, non-condensing |
| Storage temperature | −40 to +85°C |
| Load sharing / redundancy | Not supported |
Source: Emerson official IC695PSD040 product specifications.
Confirm the source, wiring and cabinet conditions against the exact IC695PSD040 limits before installation.
Match the complete ordering code and electrical requirements to the installed RX3i assembly.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Output-module reference for control-system projects.
Tiffany-verified targetEthernet-module reference for network compatibility review.
Tiffany-verified targetProximity-sensor reference for machinery applications.
Tiffany-verified targetAccelerometer reference for vibration-monitoring projects.
Tiffany-verified targetProcessor-module reference for installed control systems.
Tiffany-verified targetAnalog-input board reference for replacement review.
Tiffany-verified targetIC695PSD040 is specified for PACSystems RX3i Universal Backplanes in the IC695 series and occupies one slot. Confirm the installed backplane designation and available slot before release.
The nominal input is 24 VDC. The official operating range is 18 to 30 VDC, so verify the cabinet source under expected operating conditions.
Its total load capacity is 40 W across all backplane loads. Calculate the combined module demand rather than assigning the full rating to a single load.
No. The official specification states that load sharing and redundancy are not supported for IC695PSD040. Select the power architecture accordingly.
Use 14 to 22 AWG conductors, with one wire per terminal. Confirm conductor preparation and terminal condition during installation.
The listed indications are Power, P/S Fault, Overload and Overtemperature. Use the LED state together with the system fault record during troubleshooting.
The operating range is 0 to 60°C measured at the inlet, with 5 to 95% relative humidity and no condensation. Storage temperature is −40 to +85°C.
No. The official specification lists no input-to-backplane isolation. Account for this electrical boundary in the cabinet power and grounding review.
The official product record lists UL, CE, ATEX, CCC, KC and Marine (ABS), with the warning that approvals may be version-specific. Confirm the marking on the exact supplied unit when an approval is mandatory.
Match the complete model, RX3i backplane, one-slot space, 18–30 VDC source, 40 W total load, wiring and required approvals. Also distinguish the base model from suffix variants before quotation.
