Part Number:
DS200TCQAG1BFDWeight:
0.58kgDimensions:
28x21.2x2.5cmPlace of Origin:
USACertification:
CO,CQDescription:

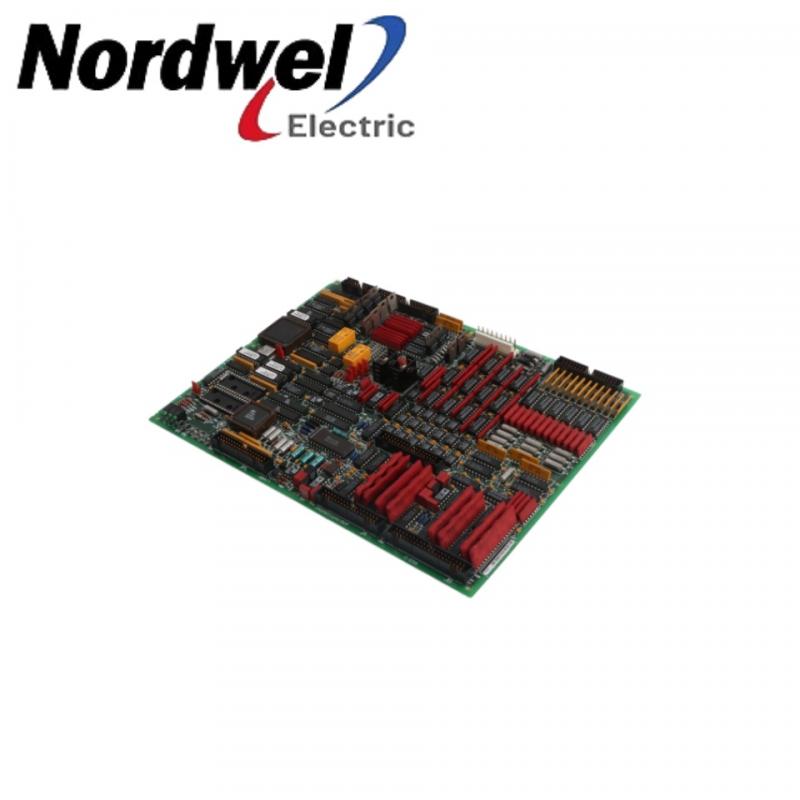

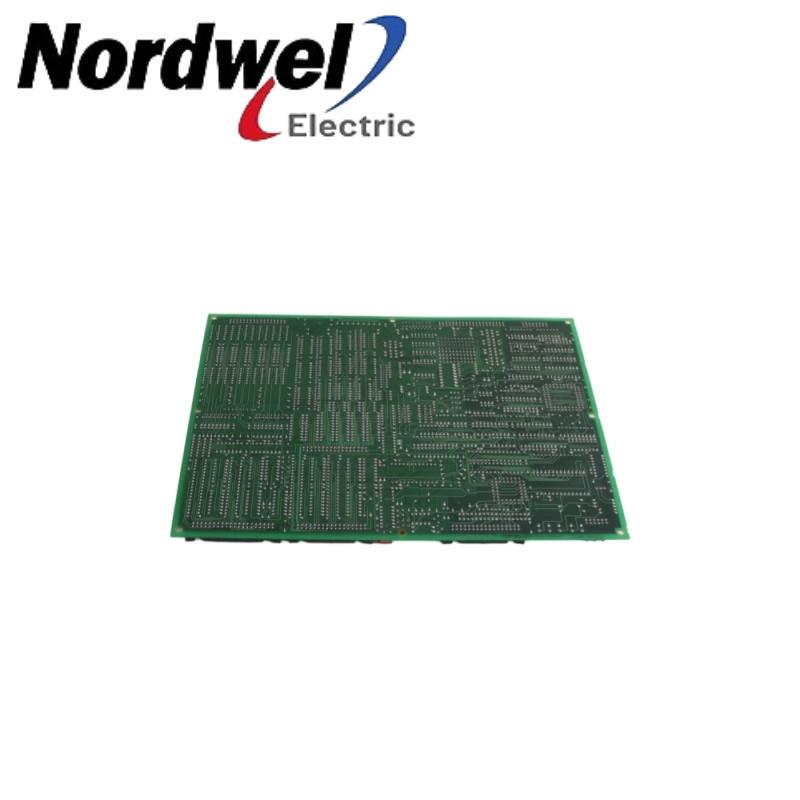

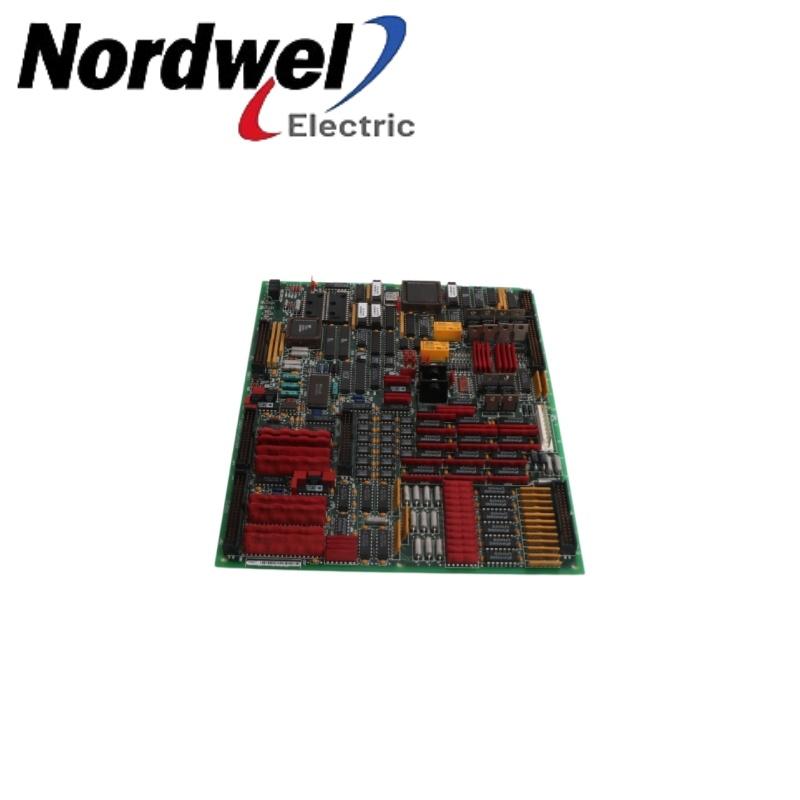

General Electric DS200TCQAG1BFD Analog I/O board with six diagnostic LEDs for Mark V.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
|
|
Part number |
DS200TCQAG1BFD |
|
Description |
|
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed DS200TCQAG1BFD in stock!!!
Product Description
The General Electric DS200TCQAG1BFD is a multi-layer analog input/output printed circuit board configured for the Speedtronic Mark V turbine control system core. As a G1 group component with a specific BFD hardware revision, it utilizes six 34-pin ribbon connectors (including JA, JB, and JD) and two 40-pin hardware cable interfaces to handle critical signal routing. The module features six onboard diagnostic LEDs to track real-time communication errors and incorporates six adjustable hardware jumpers to calibrate 4-20 mA current loops and serial testing parameters. Operating within the turbine control rack, the board conditions differential analog inputs, processing high-precision feedback from up to twelve Linear Variable Differential Transformer (LVDT) position sensors, field thermocouples, and high-frequency machinery vibration transducers.
Parameter Information
Ribbon Ports: 6 × 34-pin connectors
Bus Ports: 2 × 40-pin connectors
LEDs: 6 diagnostic status lights
Jumpers: 6 adjustable configuration pins
Loops: 4-20 mA current scaling
Inputs: 12 differential feedback paths
Sensors: Thermocouple, LVDT, vibration lines
Serial: RS232 test loop circuit
Logic: 5 VDC power rails
PCB: Multi-layer industrial board layout
Mounting: Card cage bracket style
Relays: Onboard contactor drive circuits
FAQ
Does the DS200TCQAG1BFD board feature two 40-pin bus connectors?
Yes, it features two 40-pin bus connectors.
How many diagnostic LEDs are built onto the DS200TCQAG1BFD surface?
It has six onboard diagnostic status LEDs.
Can the DS200TCQAG1BFD handle up to 12 differential transducer paths?
Yes, it conditions up to 12 differential feedback paths.
Application
Combined Cycle Power Plants (CCPP): Deployed inside co-generation control networks to balance load distribution between primary gas turbines and secondary heat recovery steam units under fluctuating thermal demands.
Petrochemical Turbine Drive Systems: Applied in large-scale chemical processing plants where massive steam turbines drive heavy centrifugal compressors, tracking real-time position status via 12 differential feedback paths.
Industrial Cogeneration Facilities: Embedded in onsite manufacturing utility plants to sync power generation loops directly with facility manufacturing processes, safeguarding critical hardware using six onboard diagnostic LEDs.
Heavy Utility Control Infrastructure: Placed inside central power stations to process complex differential analog signals, utilizing six hardware 4-20 mA calibration jumpers to maintain strict machine regulation.
|
