Item NO.:
8V1090.001-2Part Number:
8V1090.001-2Weight:
4.4kgDimensions:
7.05×37.5×23.55cmManufacture Year:
The lastest yearPlace of Origin:
AustriaCertification:
COODescription:

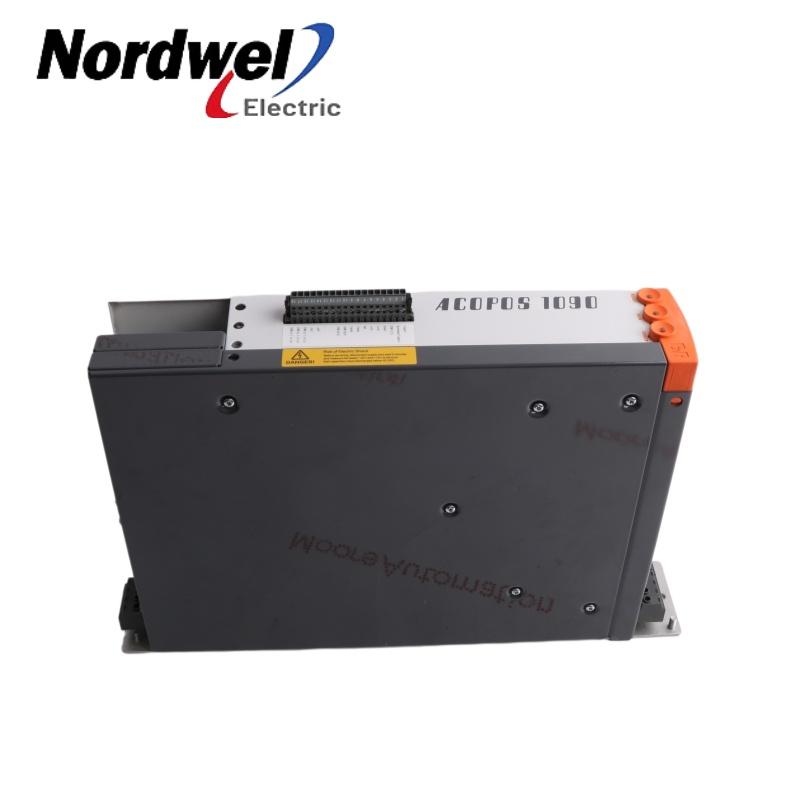

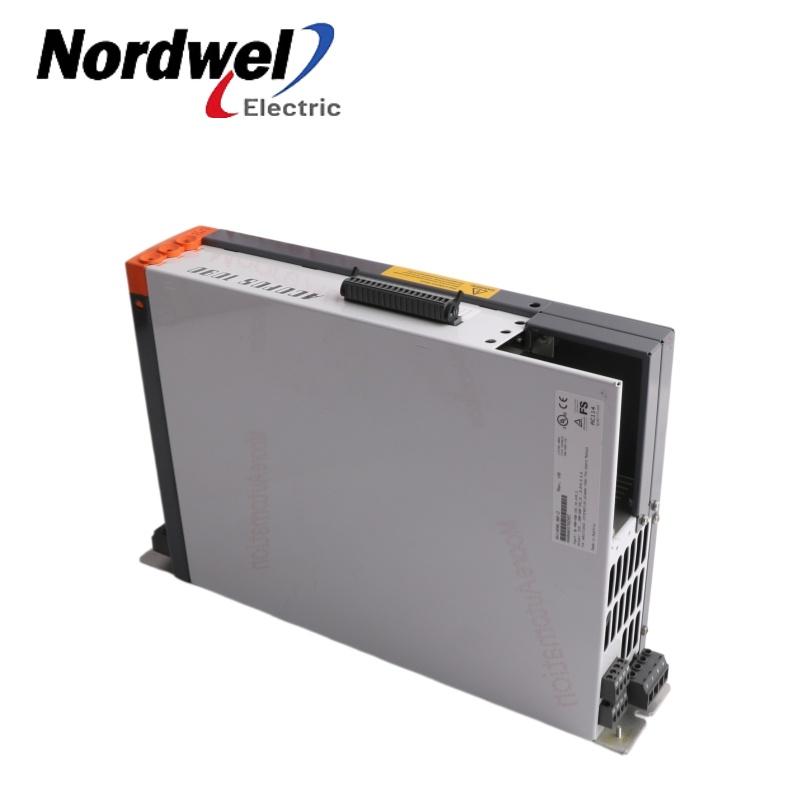

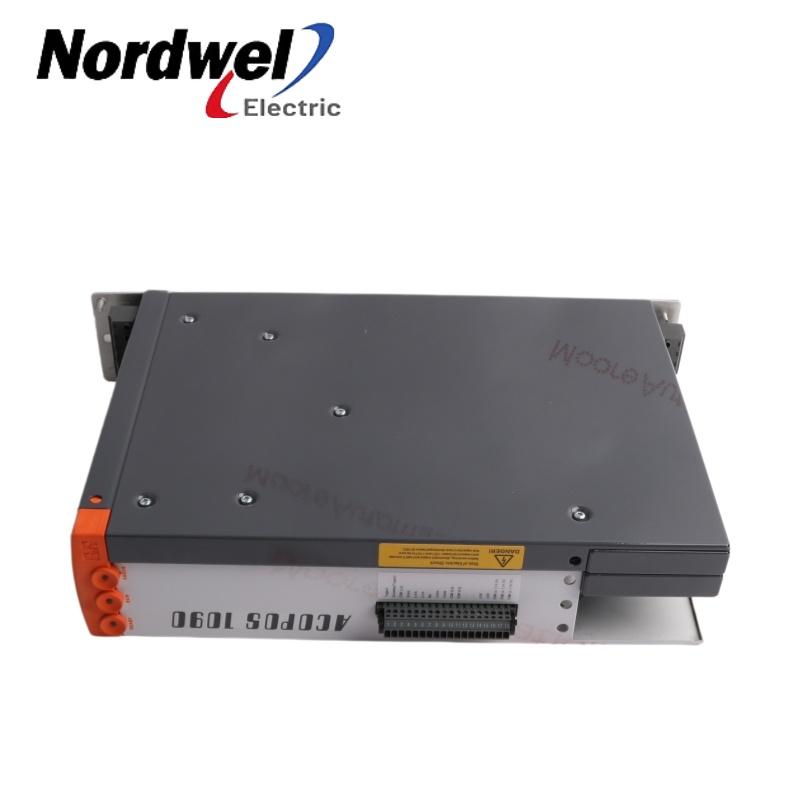

ACOPOS servo drive
Product Information
|
Model number |
8V1090.001-2 |
|
Country of origin |
Austria |
|
Condition |
Brand New |
|
Dimension |
7.05×37.5×23.55cm |
|
Weight |
4.4kg |
|
Lead time Warranty |
in stock |
Contact us to obtain the latest prices and discounts
Sales Manager:
Stella
Send an email:
Contact in Whatsapp:
Manufacturer: B&R (Bernecker + Rainer)
Model: 8V1090.001-2
Product Type: ACOPOS servo drive (coated version)
Power Rating: 4 kW / 8.8 A continuous current
Mains Input: 3×400–480 VAC ±10% or 3×230 VAC ±10%, 50/60 Hz
Installed Load: 10 kVA max.
Integrated Features: Line filter (C3), braking resistor (7 kW peak / 200 W continuous), electronic restart inhibit
DC Bus Capacitance: 470 µF
24 VDC Supply: 24 VDC ±25%, max. 2.5 A + brake current
Motor Output: 1 output, max. cable length 25 m
Switching Frequency: 5 / 10 / 20 kHz (nominal 10 kHz)
Peak Current: 24 A
Max. Output Frequency: 598 Hz (monitored for regulatory compliance)
Protections: Overload, short circuit, ground fault
Motor Holding Brake: 1 A max., open-circuit monitoring ~385 mA
Inputs: 3 limit/reference (sink), 1 enable, 2 trigger (all 24 VDC)
OSSD Signals: Not permitted
Standby Losses: 16.8 W
IE Classification: IE2
Mounting: Vertical hanging or horizontal face‑up only
Elevation: 0–500 m nominal, max. 2000 m (derating above 500 m)
Protection Rating: IP20
Operating Temp: 5–40°C nominal, max. 55°C (derating)
Storage Temp: –25 to 55°C
Humidity: 5–85% (operation), 5–95% (storage)
Certifications: CE, cULus, KC, UKCA, functional safety
Dimensions (W×H×D): 70.5×375×235.5 mm
Weight: 4.4 kg
