Payment:
T/TPart Number:
FM171Weight:
0.32kgDimensions:
6.7x10x11.5cmManufacture Year:
The latest yearPlace of Origin:
ChinaCertification:
COODescription:
Module
Specifications

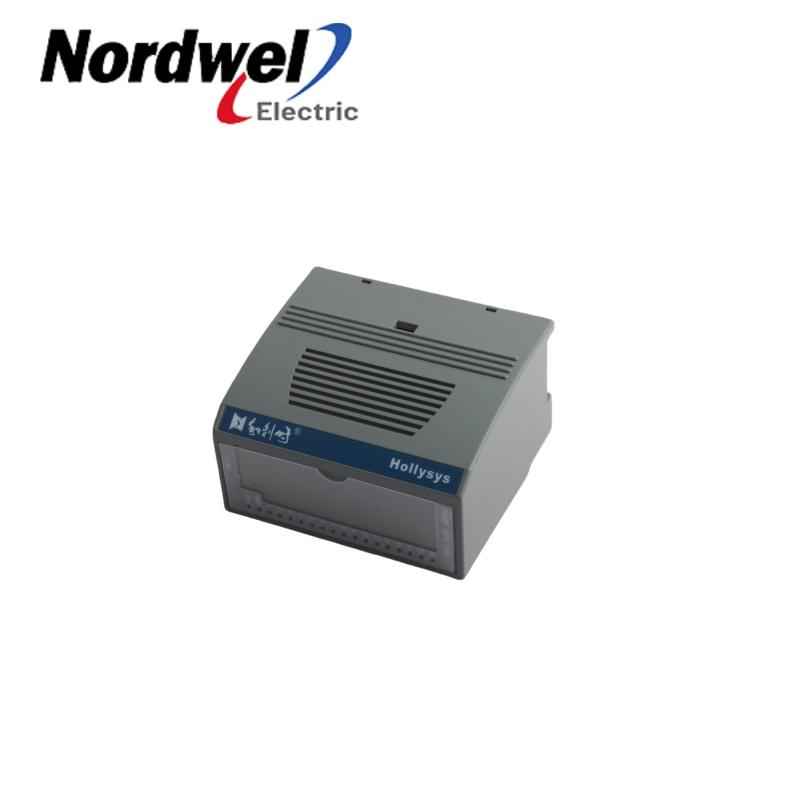

Model: FM171
Brand: Hollysys
Condition: Brand New and Origin
Number of channels: FM171 usually has 16 digital output channels.
Output type: Generally relay output type or transistor output type. Relay output can withstand larger load current, while transistor output has faster response speed.
Load capacity: For relay output type, the load current of each output can generally reach 2A or higher, which can directly drive many common industrial loads, such as solenoid valves, contactors, etc.; the load current of transistor output type is relatively small, but the response time is shorter, which is suitable for control occasions with higher speed requirements.
Contact <<Jenny Chan>> to Get Quotation
E-mail: sales3@mooreplc.com
Phone/Whatsapp/Skype: +86 18020714662
Feature
Output voltage: The output voltage is usually consistent with the external power supply voltage connected, such as 24V DC or 220V AC, etc. The appropriate power supply and output voltage level can be selected according to the actual application requirements.
Isolation voltage: The isolation voltage between the site and the system is generally higher, such as 500VAC@1min The channels and the channels and the system power supply also have good isolation performance, which can effectively prevent signal interference and protect system safety.
Response time: The response time of the relay output type is generally between a few milliseconds and tens of milliseconds; the response time of the transistor output type can reach microseconds, which can quickly control the state changes of external devices.
Operating temperature range: It can usually work normally in a temperature range of -20℃ to +60℃ or wider, and adapt to different industrial field environments.
Related Concerns
Power supply requirements: Generally, a DC power supply of about 24V DC±10% is required, and it has certain power consumption requirements.
Fieldbus technology: FM171 is a slave station of Profibus-DP, through Profibus-DP The bus uploads the collected signals and related diagnostic information to the main station, which can be connected to other company systems, realizing the interconnection between different devices and systems, and facilitating the construction of large-scale distributed control systems.
Intelligent module: It has certain intelligent functions, can diagnose and monitor the output signals, such as output short-circuit protection, open-circuit detection, etc., and feedback the relevant status information to the main station, which improves the reliability and maintainability of the system.
Payment: T/T
Service: 24 hours for a whole day
Terms of payment: T/T. RMB (CNY) support
Shipping Method: DHL\UPS\Fedex\EMS\Others
|
