Part Number:
FS-TSDO-04UNIWeight:
0.05kgDimensions:
7x6x5.5cmPlace of Origin:
USACertification:
CO,CQDescription:

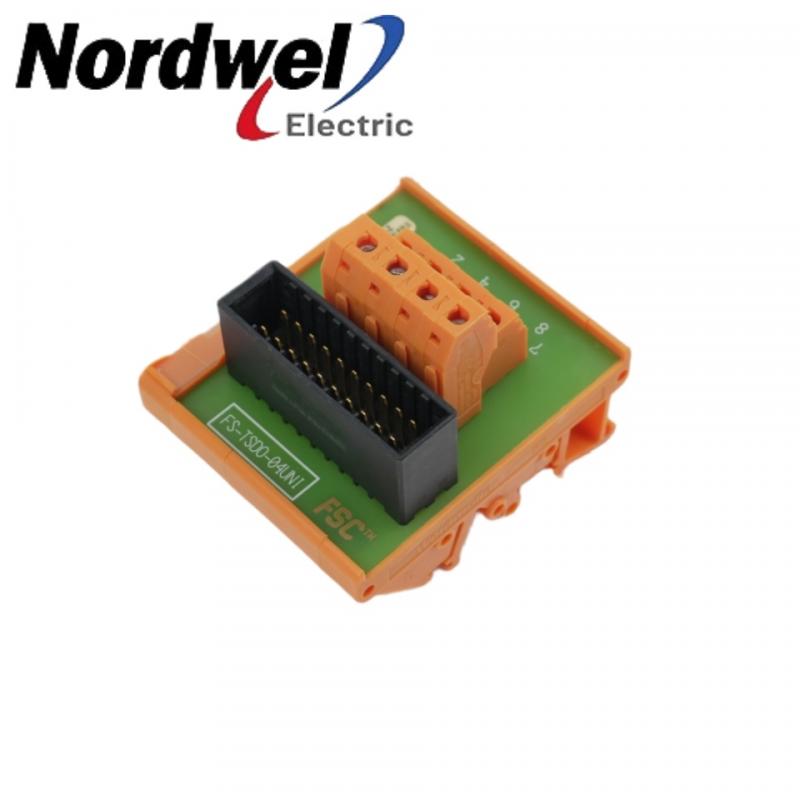

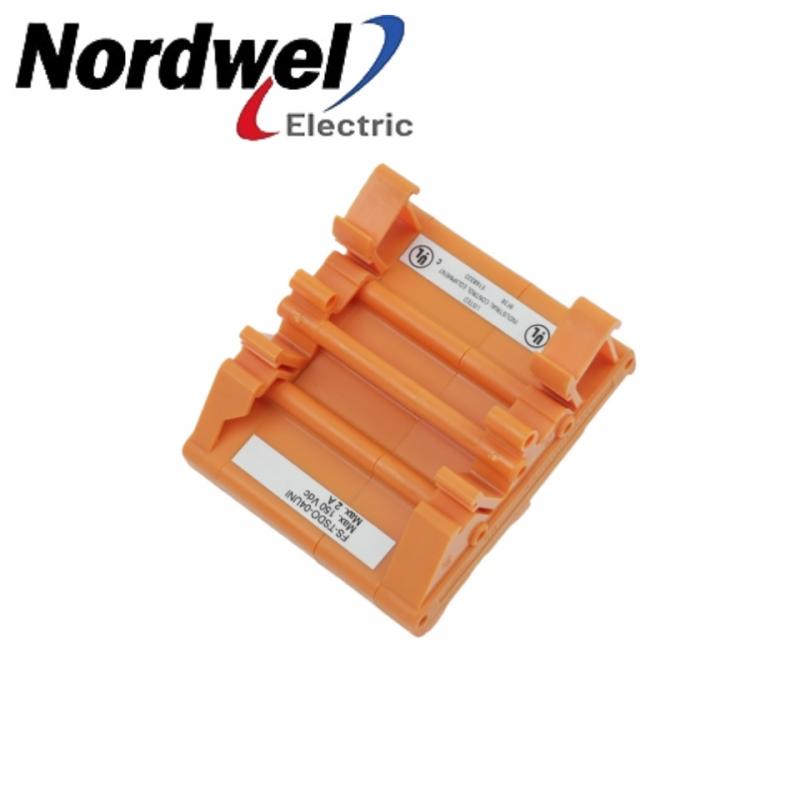

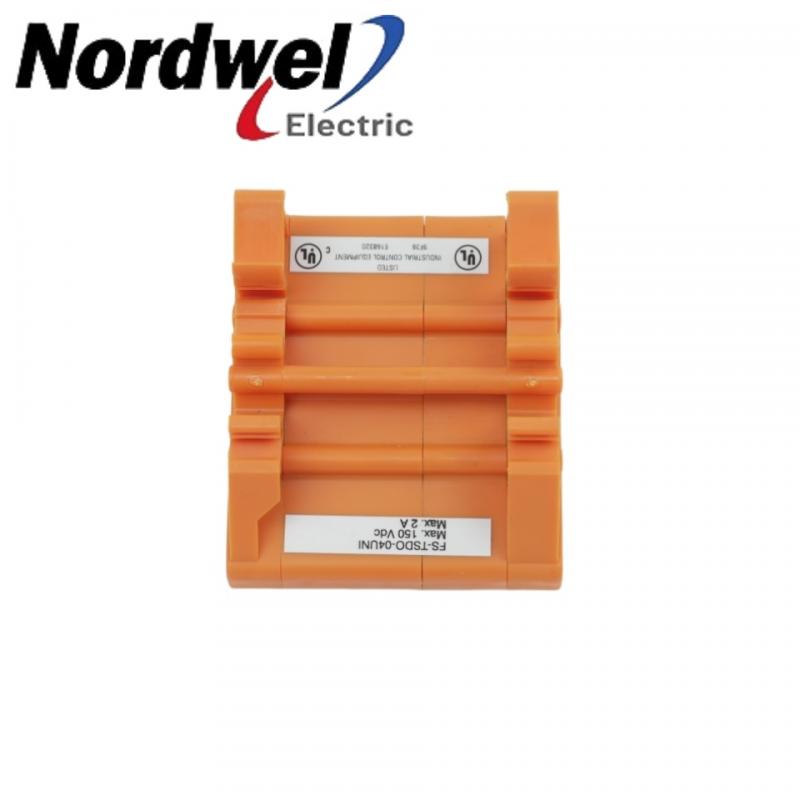

HONEYWELL FS-TSDO-04UNI Four-channel SIL3 safe multi-voltage 2A output DIN-rail module.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
HONEYWELL |
|
Part number |
FS-TSDO-04UNI |
|
Description |
HONEYWELL FS-TSDO-04UNI Safe Digital Output Module |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed FS-TSDO-04UNI in stock!!!
Product Description
The Honeywell FS-TSDO-04UNI is a conformally coated, universal multi-voltage fail-safe digital output Field Termination Assembly (FTA) module operating within Fail Safe Control (FSC) and Safety Manager automation architectures. Serving as a heavy-duty field interface block, it features 4 completely independent and isolated discrete output channels designed to handle diverse voltage loops including 24 Vdc, 48 Vdc, 60 Vdc, and 110 Vdc. The board connects directly to safe high-density digital output cards in the master rack using system interconnection cables (SIC-C) to accurately route command logic into the plant environment. It supplies reliable switched power across long industrial cable runs to operate final control field elements such as heavy-duty 110V/24V solenoid valves, interposing trip relays, motor-operated actuators, and emergency shutdown (ESD) master alarm arrays. Mechanically structured with high-density physical screw termination matrices, the module secures thick industrial fields wires up to 2.5 mm² (AWG 14) with integrated shielding ground terminals per channel.
Parameter Information
Number of channels: 4
Maximum voltage: 50 Vdc – IEC 1010 (1990)
current per channel: 2 A
Used rail length: 61 mm (2.40 in)
Screw terminals max.wire diameter:2.5 mm² (AWG 14)
Screw terminals strip length:7 mm (0.28 in)
Screw terminals tightening torque:0.5 Nm (0.37 ft-lb)
DIN EN rails: TS32 / TS35 x 7.5
Cat 2 Voltage: 150 Vdc max
Loop Voltages: Compatible with 24, 48, 60, and 110 Vdc networks
FAQ
How many output channels does the FS-TSDO-04UNI possess?
It features 4 independent and isolated discrete output channels.
What is the maximum voltage for the FS-TSDO-04UNI under overvoltage category 3?
The maximum allowed voltage is 50 Vdc according to IEC 1010 (1990).
What is the maximum continuous current capacity per channel for the FS-TSDO-04UNI?
Each individual channel is rated to handle a continuous load current of 2 A.
Application
Petrochemical & Oil Refineries: Actuating emergency isolation valves, deluge water rings, and rapid process venting systems operating across diverse 24V to 110V DC power networks.
Chemical Processing Facilities: Triggering reactor vessel emergency dumps, feedstock shutoff solenoids, and interposing safety relays to prevent chemical runaway states.
LNG & Industrial Gas Terminals: Driving heavy-duty cryogenic block valves and high-integrity safety flare actuators deployed across volatile storage and loading bays.
Offshore Drilling & Production Rigs: Managing deep-well emergency shutdown (ESD) matrix lines, deluge arrays, and acoustic signaling units under harsh, high-vibration marine duress.
|
