Part Number:
FC-TSDO-04UNIWeight:
0.05kgDimensions:
7x6x5.5cmPlace of Origin:
USACertification:
CO,CQDescription:

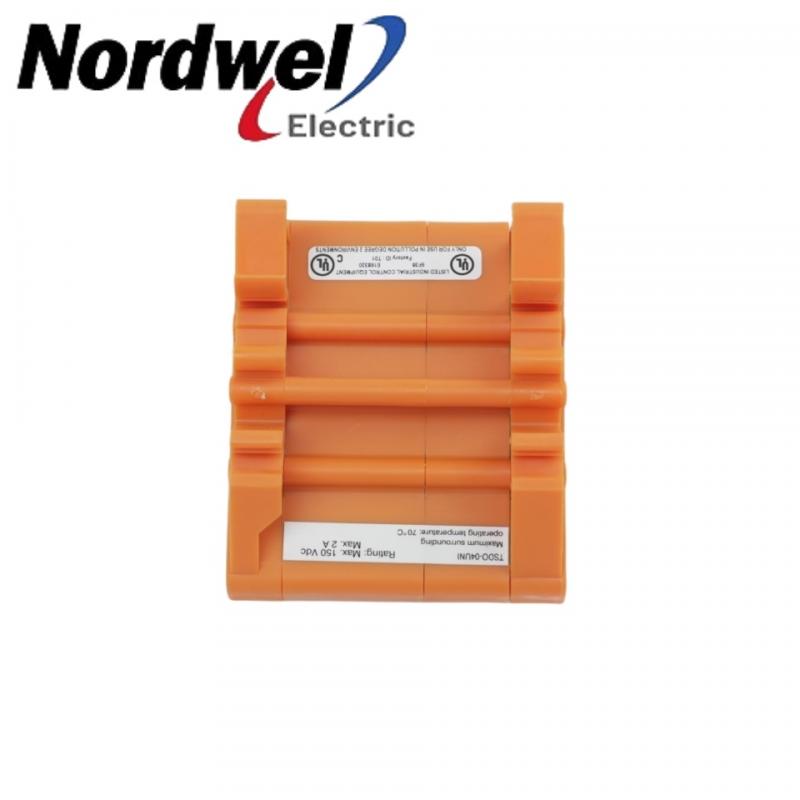

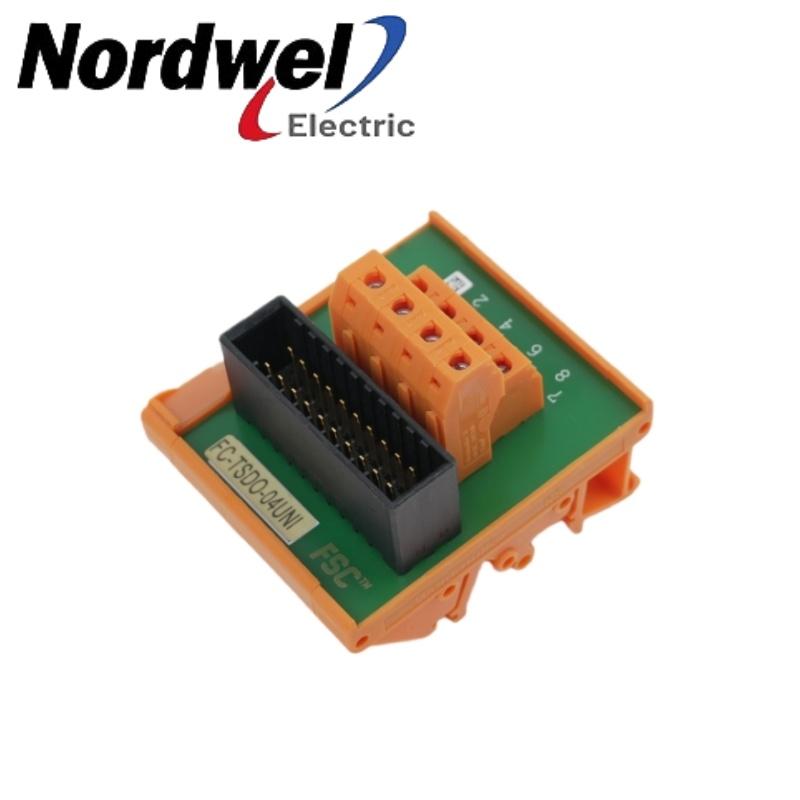

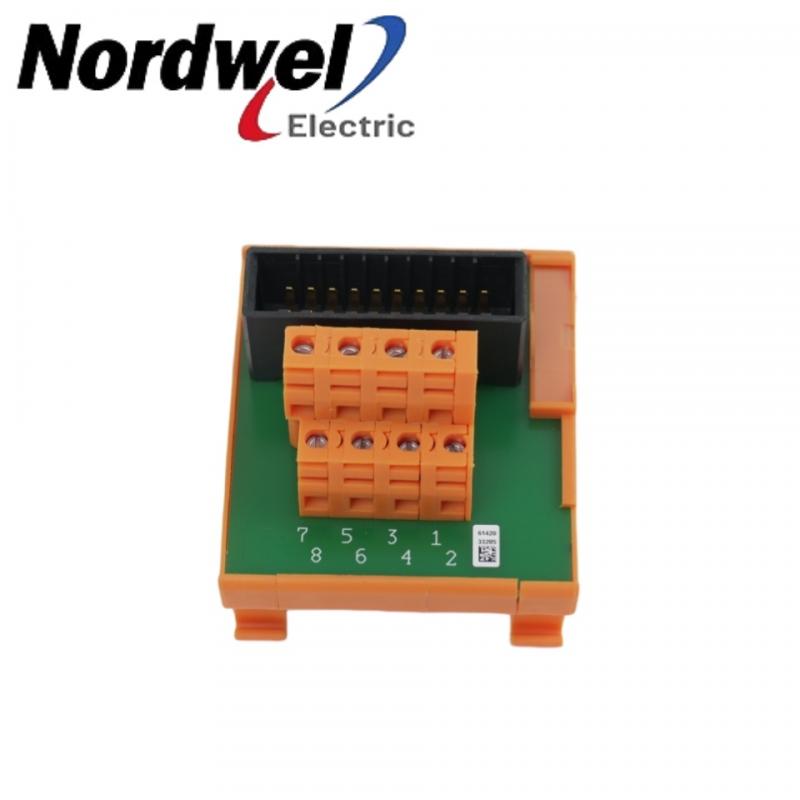

HONEYWELL FC-TSDO-04UNI 4-channel, 2A safety system module with multi-approvals.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
HONEYWELL |
|
Part number |
FC-TSDO-04UNI |
|
Description |
HONEYWELL FC-TSDO-04UNI Safety Manager Systems |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed FC-TSDO-04UNI in stock!!!
Product Description
The FC-TSDO-04UNI is a 4-channel Safety Manager System Module certified under CE, TUV, UL, CSA, and FM standards for industrial control systems.For electrical parameters, the module provides a maximum continuous current of 2 A per channel. Its maximum voltage support depends on the overvoltage category as defined by IEC 1010 (1990): it handles up to 50 Vdc under overvoltage category 3, and up to 150 Vdc under overvoltage category 2.Structurally, the unit measures 60 × 70 × 54 mm (L × W × H) and mounts onto standard DIN EN rails, specifically TS32 or TS35 × 7.5 sizes. It occupies a rail length of 61 mm (2.40 in) inside the cabinet. Field wiring connects via termination screw terminals that accept a maximum wire diameter of 2.5 mm² (AWG 14). Safe installation requires a wire strip length of 7 mm (0.28 in) and a terminal tightening torque of 0.5 Nm (0.37 ft-lb).
Parameter Information
Approvals: CE, TUV, UL, CSA, FM
Number of channels: 4
Maximum voltage:
50 Vdc - IEC 1010 (1990), overvoltage category 3
150 Vdc - IEC 1010 (1990), overvoltage category 2
Maximum continuous current per channel: 2 A
DIN EN rails: TS32 / TS35 × 7.5
Used rail length: 61 mm (2.40 in)
Termination Screw terminals:
Max. wire diameter 2.5 mm² (AWG 14)
Strip length 7 mm (0.28 in)
Tightening torque 0.5 Nm (0.37 ft-lb)
FAQ
How many channels does the FC-TSDO-04UNI provide?
The module is equipped with 4 channels.
What is the maximum continuous current per channel for the FC-TSDO-04UNI?
The maximum continuous current is 2 A per channel.
What is the voltage limit for the FC-TSDO-04UNI under overvoltage category 3?
It supports a maximum voltage of 50 Vdc, compliant with IEC 1010 (1990).
Application
Oil & Gas Refineries: Used on offshore drilling platforms, processing facilities, and pipelines.
Chemical & Petrochemical Processing: Deployed in hazardous environments handling volatile substances.
Power Generation Plants: Utilized in traditional and nuclear power stations for grid monitoring and plant protection.
Heavy Manufacturing: Integrated into automated assembly plants requiring deterministic safety protocols.
|
