Part Number:
FS-TSDO-0824Weight:
0.05kgDimensions:
7x6x5.5cmPlace of Origin:
USACertification:
CO,CQDescription:
HONEYWELL FS-TSDO-0824 Continuous channel load capacity is rated at 2.0 A.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
HONEYWELL |
|
Part number |
FS-TSDO-0824 |
|
Description |
HONEYWELL FS-TSDO-0824 Safe Digital Output Module |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed FS-TSDO-0824 in stock!!!
Product Description

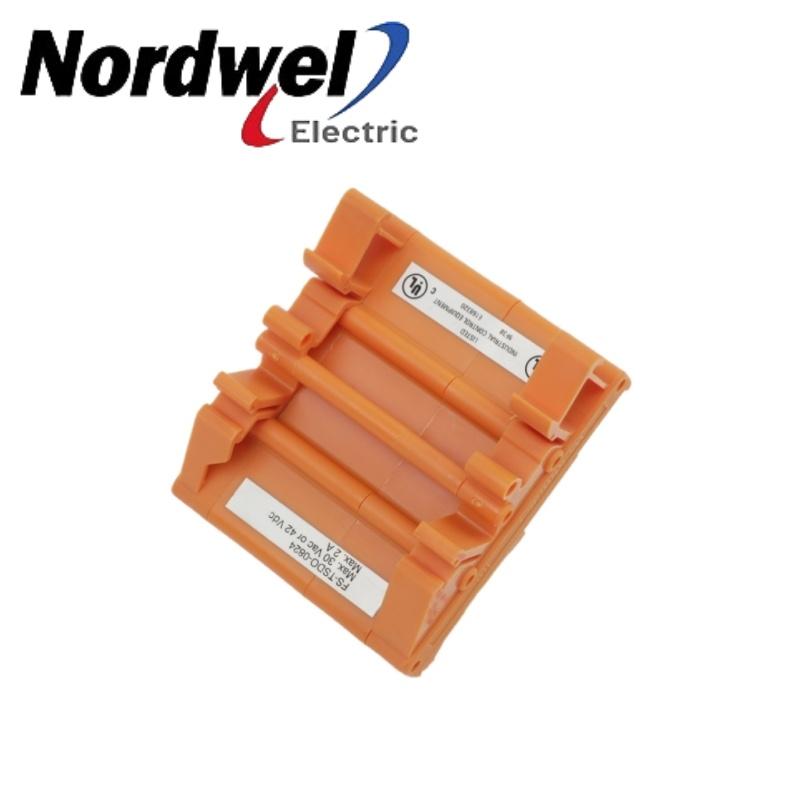

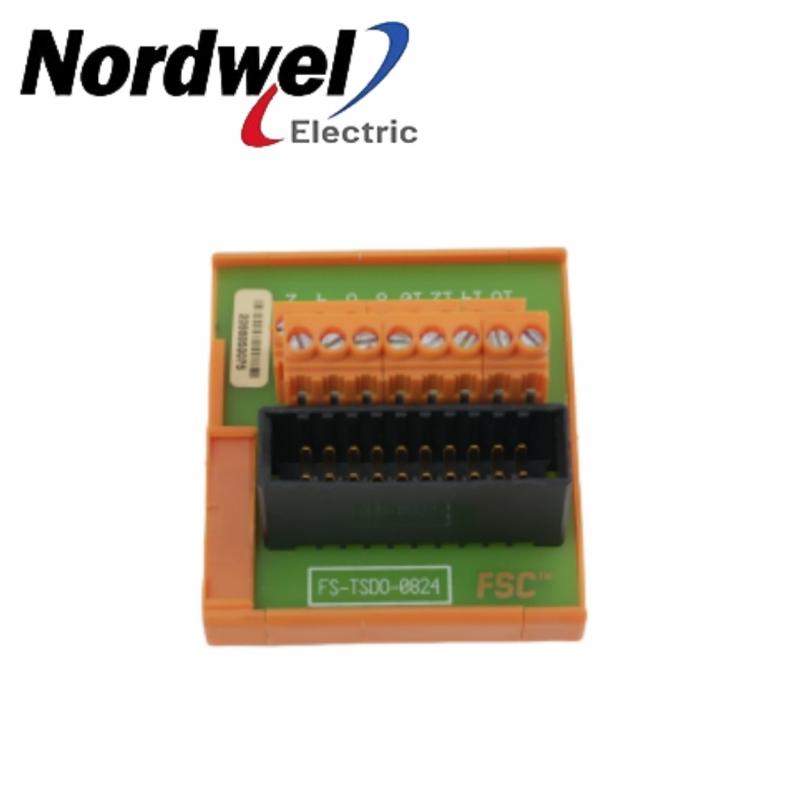

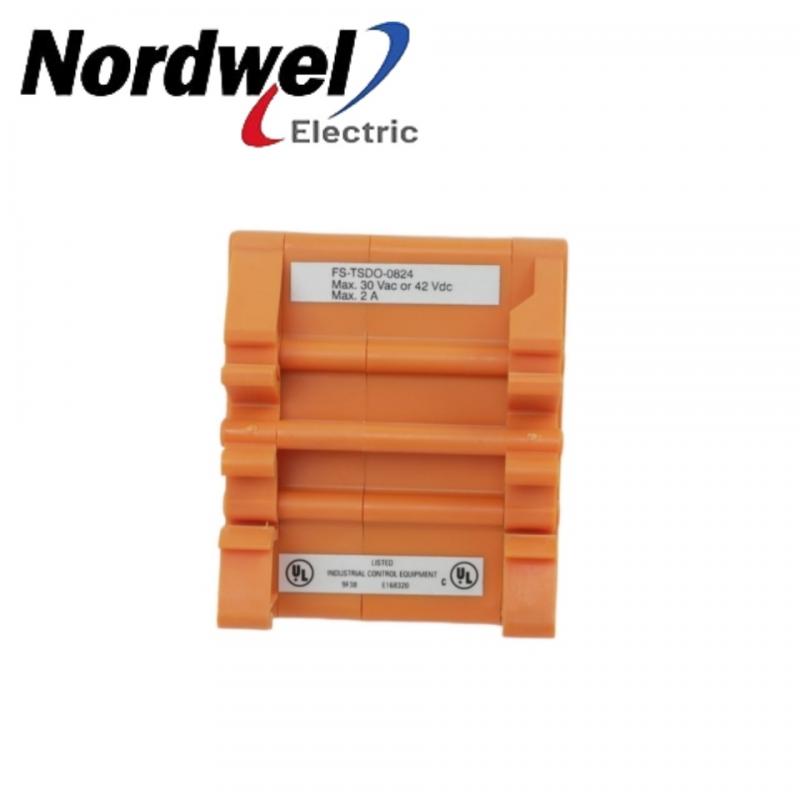

The FS-TSDO-0824 is a 24 Vdc fail-safe digital output Field Termination Assembly (FTA) module configured with 8 discrete safety output channels. Acting as the field-side termination block, this assembly functions as the physical wiring hub that connects high-power field loads to the system's central logic rails via a standard system interconnection cable (SIC-C). Each of its 8 channels operates on a nominal 24 Vdc loop voltage and is built to safely handle a continuous field output current of 2.0 A per channel, making it robust enough to directly drive industrial solenoid valves, interposing relays, alarm horns, and small motor-operated valves. For total system isolation and localized fault containment, every single output path is fitted with its own independent, onboard 2.5 A fast-acting fuse (factory-standardized as a Schurter 0001.1008 or equivalent rated for up to 250 Vac / 300 Vdc), which instantly cuts power to a specific loop in the event of a field-side short circuit before it can trigger an entire panel trip. The physical hardware layout consists of a compact circuit board assembly that snaps directly onto standard TS32 or TS35 × 7.5 mm top-hat industrial DIN rails inside steel Rittal cabinet enclosures.
Parameter Information
Number of channels: 8
Maximum voltage: 36 Vdc – IEC 1010 (1990), overvoltage category 3
Maximum continuous current per channel: 1.5 A
Screw terminals max.wire diameter:2.5 mm² (AWG 14)
Screw terminals strip length:7 mm (0.28 in)
Screw terminals tightening torque:0.5 Nm (0.37 ft-lb)
Current: 2.0 A continuous output per channel
Fuses: Eight 2.5 A fast-acting fuses
Fuse Voltage: 250 V AC / 300 V DC
Wire Size: Up to AWG 14 (2.5 mm²)
Mounting: Snaps onto TS32 DIN rail
Alternative Rail: Fits TS35 × 7.5 mm rail
Safety: Certified for SIL3 safety loops
Function: Powers heavy-duty 24 V DC solenoids
Isolation: Fully isolated dry relay contacts
FAQ
What is the maximum channel capacity of the FS-TSDO-0824?
It features 8 discrete fail-safe digital output channels.
What is the nominal output loop voltage used on the FS-TSDO-0824?
It operates on a standard nominal voltage of 24 V DC.
What is the continuous output current limit per channel for the FS-TSDO-0824?
Each individual channel can drive a continuous current load of up to 2.0 A.
Application
Oil & Gas Refineries: Operating emergency shutdown (ESD) valves, isolation dampers, and deluge systems to isolate process units during critical events.
Chemical & Petrochemical Plants: Driving high-power 24V DC solenoid valves for rapid chemical dump cycles, feedstock isolation, and reactor vent loops.
LNG & LPG Liquefaction Terminals: Controlling main cryogenic shutoff valves and emergency gas flare deployment loops across storage and loading decks.
Offshore Drilling Platforms & FPSOs: Triggering fire suppression solenoids, alarm horns, and main deluge lines under corrosive marine conditions.
|
