Part Number:
FS-TSAI-1620MWeight:
0.3kgDimensions:
21x7x5.8cmPlace of Origin:
USACertification:
CO,CQDescription:
HONEYWELL FS-TSAI-1620M It provides high-density tracking 0–20 mA or 4–20 mA current loops.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
HONEYWELL |
|
Part number |
FS-TSAI-1620M |
|
Description |
HONEYWELL FS-TSAI-1620M Safe Analog Input Field Termination Assembly |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed FS-TSAI-1620M in stock!!!
Product Description

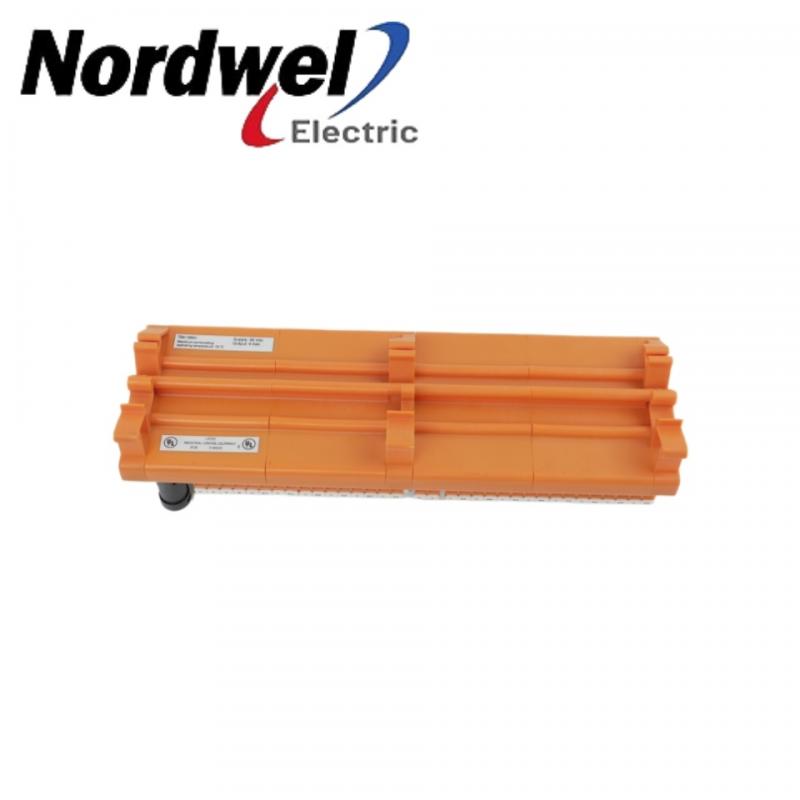

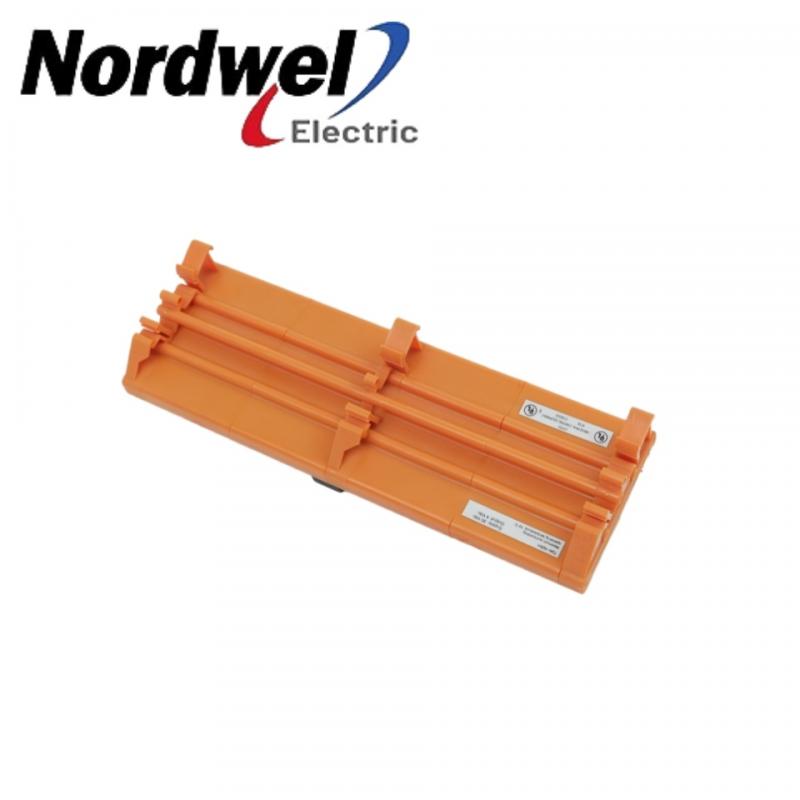

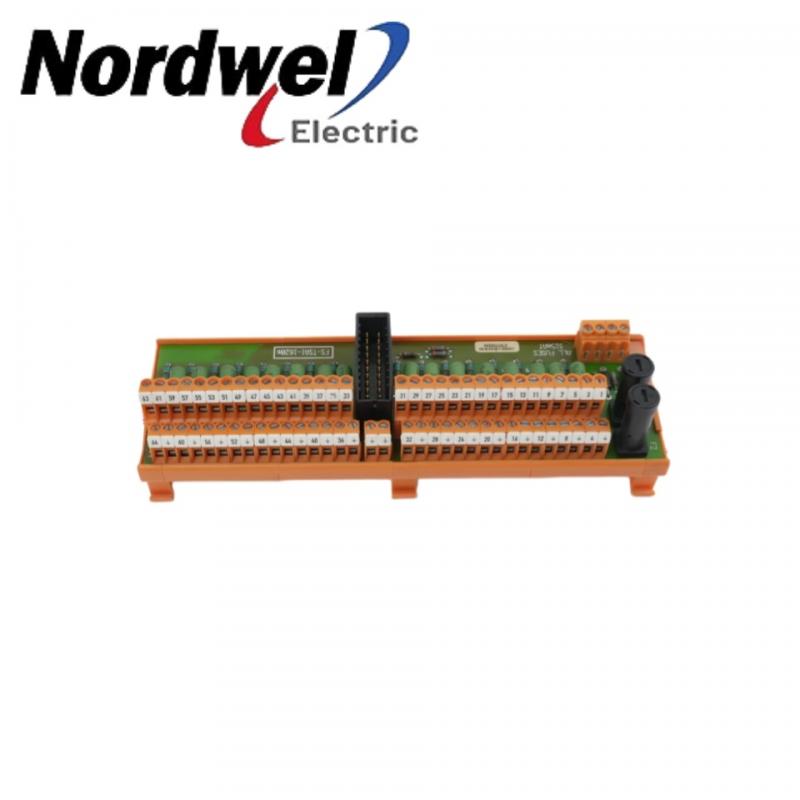

The Honeywell FS-TSAI-1620M is a conformally coated, 16-channel safe analog input Field Termination Assembly (FTA) module utilized inside Fail Safe Control (FSC) systems. Operating with a standard 0(4) to 20 mA analog input signal range across all 16 channels, the module maps its field signals directly to a primary fail-safe high-density analog input module 10105/2/1 through standard cabinet interconnection cables. The hardware board is built to achieve strict industrial safety compliance, securing approval for Class I and Class II, Division 2 hazardous operating locations under the FM 3611 safety standard. Mechanically, the hardware assembly interfaces field sensors via dedicated terminal wiring strips that guide analog transmitters straight to the central processing processor unit (CPU) racks for fail-safe diagnostics, fault-containment tracking, and real-time process control loop calculation.
Parameter Information
Number of input channels: 16 (2 groups of 8 with common 0 V)
Power requirements: 30 Vdc external, 3 mA (without input loop loads)
Input current: 0—25 mA Input resistance: 250 Ω (± 1%)
Output voltage： 0—4 Vdc
Accuracy： 0.1%
Rating: 315 mAT (slow-acting)
DIN EN rails: TS32 / TS35 × 7.5
Used rail length: 211 mm (8.30 in)
Screw terminals Max. wire diameter： 2.5 mm² (AWG 14)
Screw terminals Strip length： 7 mm (0.28 in)
Screw terminals Tightening torque： 0.5 Nm (0.37 ft-lb)
Total terminals: 64 field wiring screw connections (4 terminals per channel)
Max continuous current: 220 mA per fuse channel
HYDROGEN (Group A & B)Max. loop inductance:6 mH
HYDROGEN (Group A & B)Max. loop capacitance:0.25 µF
NON-HYDROGEN (Group C & D) Max. loop inductance:20 mH
NON-HYDROGEN (Group C & D)Max. loop capacitance:5 µF
FAQ
What is the total channel capacity of the FS-TSAI-1620M?
It features 16 analog input channels arranged in 2 groups of 8 channels.
What is the complete input current range of the FS-TSAI-1620M?
It measures input currents ranging from 0 to 25 mA for 0-20 mA or 4-20 mA loops.
What is the exact internal input resistance of the FS-TSAI-1620M?
It uses an onboard input impedance of 250 Ω with a precision tolerance of ±1%.
Application
Petrochemical & Gas Cracking Plants: Monitoring high-precision 4-20 mA analog sensors around high-pressure chemical reactors, furnace loops, and ethylene distillation columns.
LNG Liquefaction & Transport Terminals: Real-time process tracking of cryogenic storage tanks, regasification vapor loops, and hazardous loading/unloading lines.
Oil & Gas Exploration & Floating Platforms: Transmitting mission-critical field data on offshore platforms, production wellheads, and FPSO processing decks under extreme weather.
Large-Scale Oil Refineries: High-density safe tracking of tank farm fill levels, pipeline pressure loops, and catalytic cracking system pressures.
|
