Part Number:
TC-IDA161Weight:
0.22kgDimensions:
3.5cmX14.2cmX14.5cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

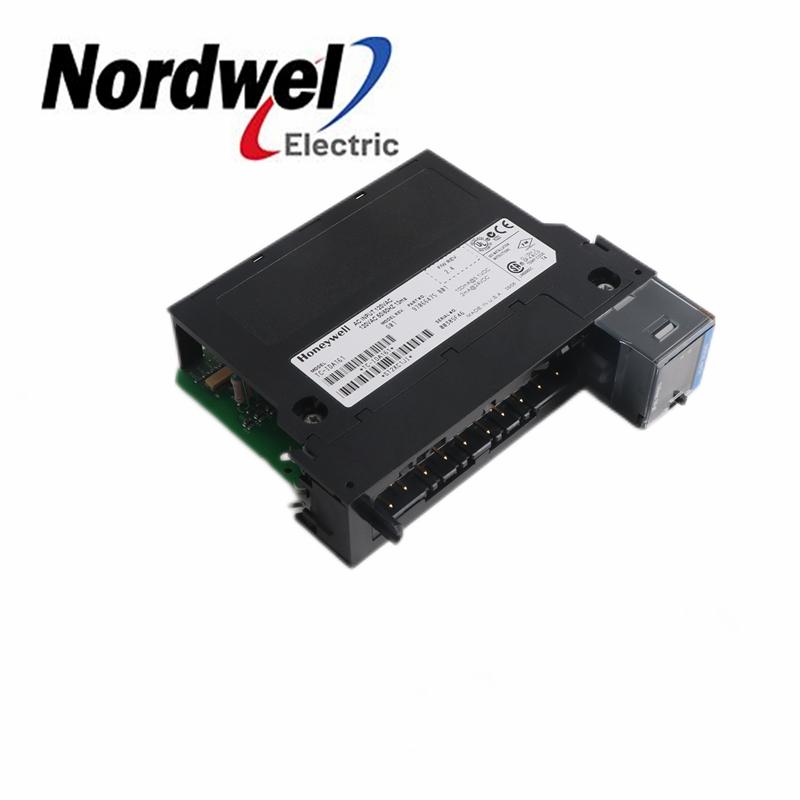

HONEYWELL TC-IDA161 Discrete Input Module, 120 VAC, 16-Point
|
Manufacturer: |
HONEYWELL |
|
Part Number: |
TC-IDA161 |
|
Description: |
HONEYWELL TC-IDA161 |
|
Full Description: |
HONEYWELL TC-IDA161 Discrete Input Module
|
|
Status: |
In stock |
| Warranty | 12 Months |
120 VAC, 16-Point Discrete Input Module
Parameter Specification
Number of Inputs 16 (8 pts/common)
On-stage Voltage Range 79-132 VAC, 47-63 Hz with zero tolerance
(79-132 VAC, 50-60 Hz with tolerance for 1131-2 & IEC1+)
Nominal Input Voltage 120 VAC
On-State Current (Minimum) 5 mA @ 79 VAC, 47-63 Hz
Off-State Voltage (Maximum) 20 VAC
Off-State Current (Maximum) 2.5 mA
Input Impedance (Maximum) 11 k @ 60 Hz
Input Delay Time
Off to on Programmable: 1 ms & 2 ms
Hardware delay 10 ms maximum plus filter time
On to off Programmable: 9 ms & 18 ms
Hardware delay 8 ms maximum plus filter time
Power Dissipation 6.0 watts max
Short/Inrush Current 250 mA peak (decaying to <37% in 22 ms, without activation)
Nominal Input Current 120 VAC: 12.5 mA @ 50 Hz, 12.5 A @ 60 Hz
Input Compatibility IEC Type 1+
Backplane Current See Module Power Consumption Data, page 46.
Isolation Voltage
Channel to channel 100% tested at 2546 VDC for 1s
User to system 100% tested at 2546 VDC for 1s
Connection Terminal Blocks TC-TBNH, 20-position terminal block
Manager Stella quotes to you
we offer original new with 1 year warrenty
4)Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
