Part Number:
03601-54-080 03601-34-080Weight:
0.3 kgDimensions:
15.2 cm x 5.1 cm x 30.5 cmManufacture Year:
2022Place of Origin:
USACertification:
CO,CQDescription:

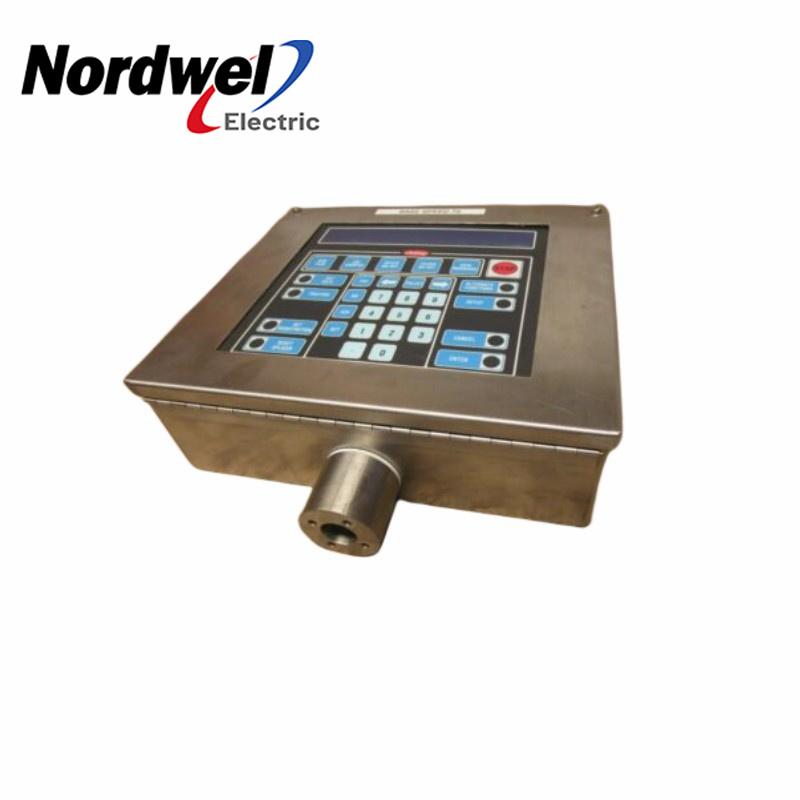

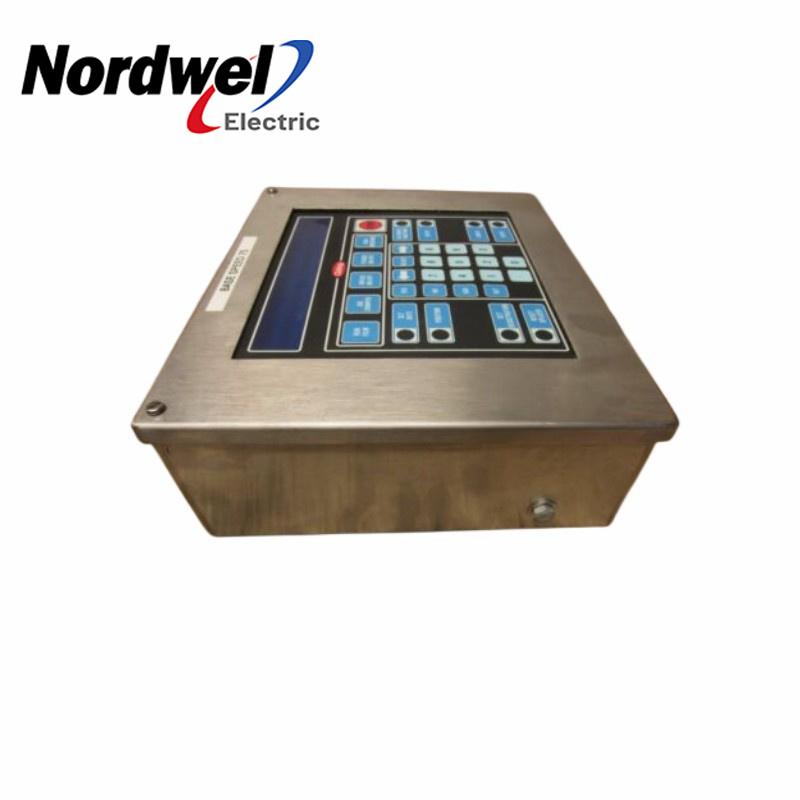

DISPLAY BOARD MODULE
Technical Specifications for 03601-54-080 03601-34-080
Part number
03601-54-080 03601-34-080
Manufacturer
IEE FLIP
Description
DISPLAY BOARD MODULE
Country of origin
USA
Status
Brand New In Stock
Year of Production
2020-2022 available
Shipment
From Xiamen, China to Worldwide
About 03601-54-080 03601-34-080
The Vacuum Fluorescent Display array consists of three basic electrodes which are enclosed in anevacuated glass chamber. The first electrode is the filament, which spans the entire length of the display,and is made from a small diameter oxide coated tungsten wire. This element is common to all charactersand supplies the electron emission needed for operation. Individual grid electrodes are provided, one foreach character, to control current passing to the anodes. Each grid is a fine mesh metal screen whichprovides digit-select electrical control with no visual interlerence.When the grid is positive with respect tothe filament, electrons are allowed to pass on to the third electrode, the anode dots, causing the fluorescentphosphor coating on each positively charged dot to glow. Selectively energizing these fluorescent dotscauses the desired character to be displayed.
✦ Features of PLC
Manager Stella quotes to you
we offer original new with 1 year warrenty
4)Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
Why choose Moore Automation
Moore Automation also pride ourselves on our service, that as a customer, you will receive time and time again.
One Contact Person
At Moore you will be working alongside one account manager who is assigned to any enquiry you request. This account manager has been fully trained and understands you are looking for the highest quality, best price and quickest lead-time possible. Your account manager will be completely open & honest and assigned to help you with even the smallest question at any time.
|
