GT2-H32 32 mm Digital Contact Sensor Head

KEYENCE GT2-H32 High-Accuracy Digital Contact Sensor Head

EMAIL SALES

KEYENCE official data reviewed

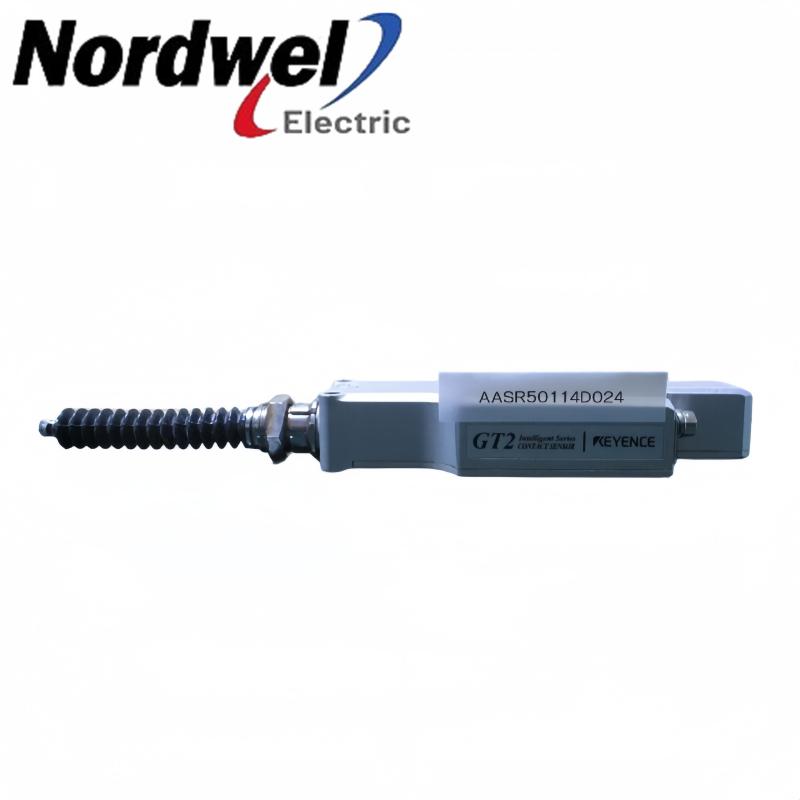

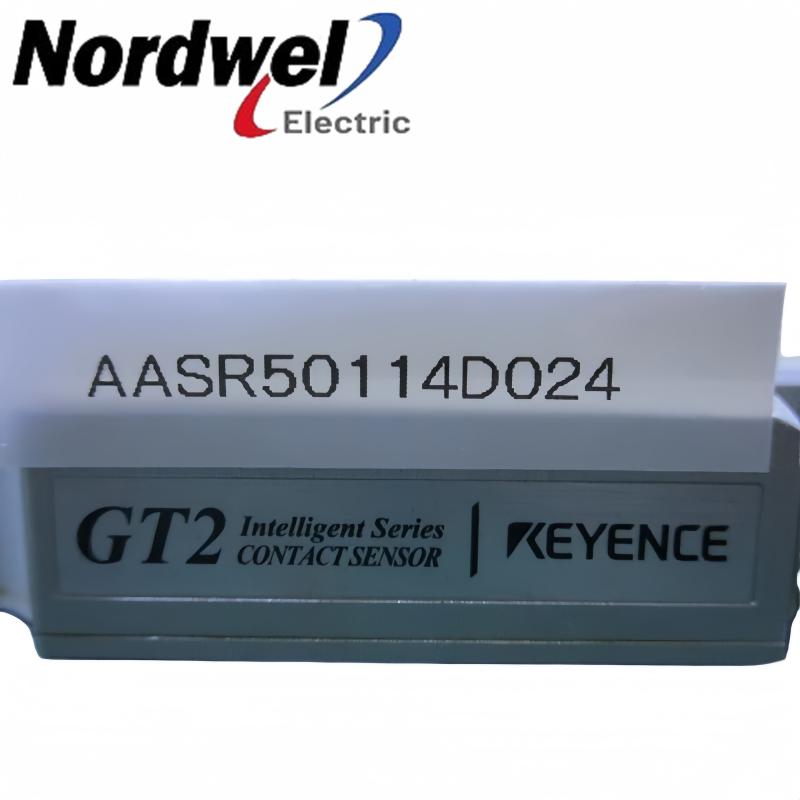

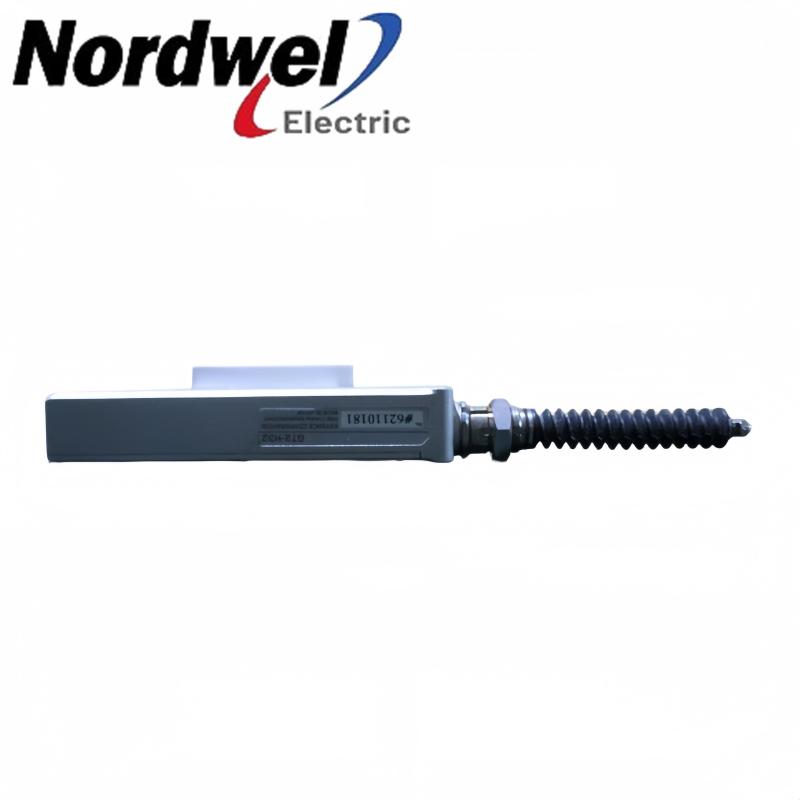

GT2-H32 — High-Accuracy Digital Contact Sensor Head

A 32 mm absolute-type digital contact sensor head with 0.5 µm resolution, 3 µm indicated accuracy, a 1 ms sampling cycle and an IP67 enclosure rating.

GT2 SeriesContact displacement measurementExact-model review

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

Officially reviewed product profile

Product familyGT2 Series

Exact modelGT2-H32

Product typeHigh-Accuracy Digital Contact Sensor Head

Measuring range32 mm

Resolution0.5 µm

Indicated accuracy3 µm p-p at 20 °C

Enclosure ratingIP67

Verified functionContact displacement measurement

Brand:
Others
Item NO.:
GT2-H32
Goods Stock:
1
Part Number:
GT2-H32
Description:
A 32 mm absolute-type digital contact sensor head with 0.5 µm resolution, 3 µm indicated accuracy, a 1 ms sampling cycle and an IP67 enclosure rating.

Inquiry now

GT2-H32 configuration inquiry

Get a precise quote for GT2-H32

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

GT2-H32 official identification

A 32 mm absolute-type digital contact sensor head with 0.5 µm resolution, 3 µm indicated accuracy, a 1 ms sampling cycle and an IP67 enclosure rating.

Complete modelGT2-H32

Documented familyGT2 Series

Verified functionContact displacement measurement

ConnectionOptional sensor-head cable via M8 connector

Engineering and installation checks

Keep the complete designation GT2-H32 in the quotation and receiving record.
Select the mounting direction with the documented 2.1 N downward, 1.8 N side or 1.5 N upward measuring force in mind.
Manufacturer verification basis: KEYENCE GT2-H32 official product page and data sheet.

Official product data

GT2-H32 key specifications

Detection system	Quartz glass scale, CMOS image-sensor projection, absolute type
Measuring range	32 mm (1.26 in)
Resolution	0.5 µm (0.02 mil)
Indicated accuracy	3 µm (0.12 mil) p-p at 20 °C
Measuring force	2.1 N downward; 1.8 N side; 1.5 N upward
Sampling cycle	1 ms
Mechanical response	6 Hz at 20 °C
Operation indicator	Two-color LED, red and green
Enclosure rating	IP67
Ambient temperature	-10 to +55 °C, no freezing
Relative humidity	35 to 85 % RH, no condensation
Sensor-head cable	Optional; connects to the M8 connector
Weight	Approx. 270 g, excluding cable

Source: KEYENCE GT2-H32 official product page and data sheet.

Pre-order check 01

Installation environment

Verify the installed mounting, connection and environmental conditions before this exact configuration is removed or energized.

Select the mounting direction with the documented 2.1 N downward, 1.8 N side or 1.5 N upward measuring force in mind.
Keep the sensor within -10 to +55 °C and 35 to 85 % RH, with no freezing or condensation.
Use the separately selected sensor-head cable at the M8 connector and provide strain relief without restricting spindle travel.
Confirm the contact, dust boot, mounting rigidity and full 32 mm travel before recording the initial measurement.

Record the as-found installation and final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete designation to the installed mechanical arrangement, connection and measurement chain.

Detection system: Absolute quartz-glass scale with CMOS image-sensor projection
Range: 32 mm
Resolution / accuracy: 0.5 µm / 3 µm p-p at 20 °C
Cable connection: Optional sensor-head cable through M8 connector
Mounting bracket: OP-84327 applies to GT2-H32 and GT2-H50; sold separately

Final selection: Confirm every row against the complete GT2-H32 designation, installed assembly and approved project documentation.
