Part Number:
P70530-SDNWeight:
0.15 kgDimensions:
9.5 cm x 10.8 cm x 6.3 cmManufacture Year:
2022Place of Origin:
United StatesCertification:
CO,CQDescription:

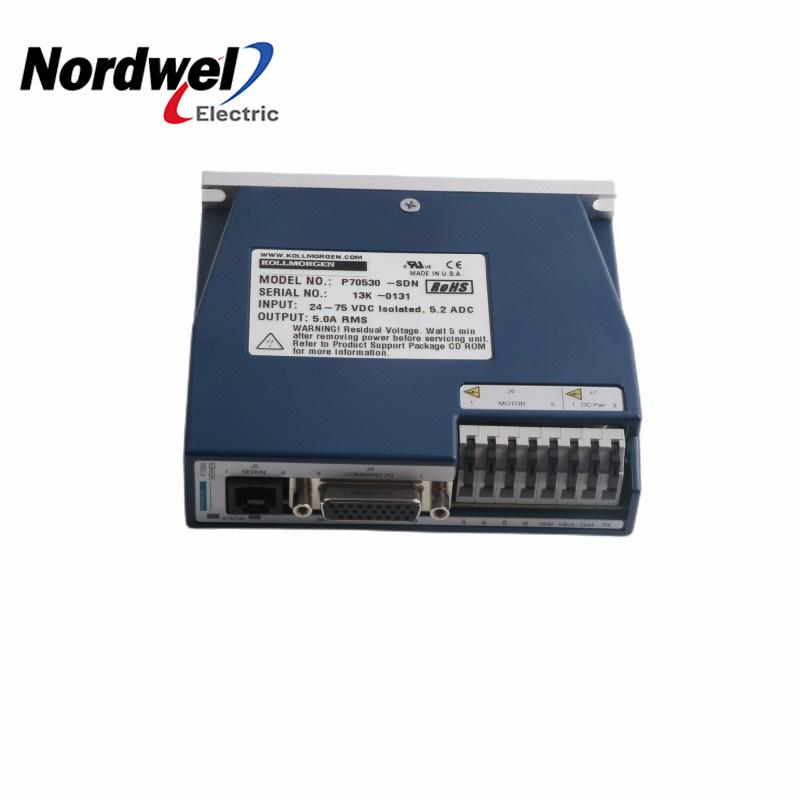

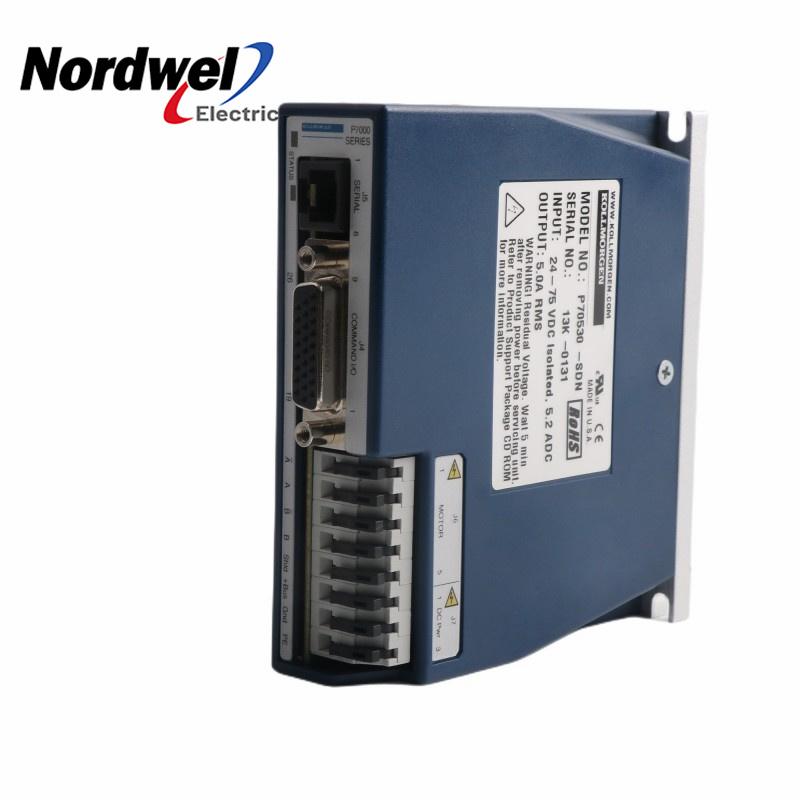

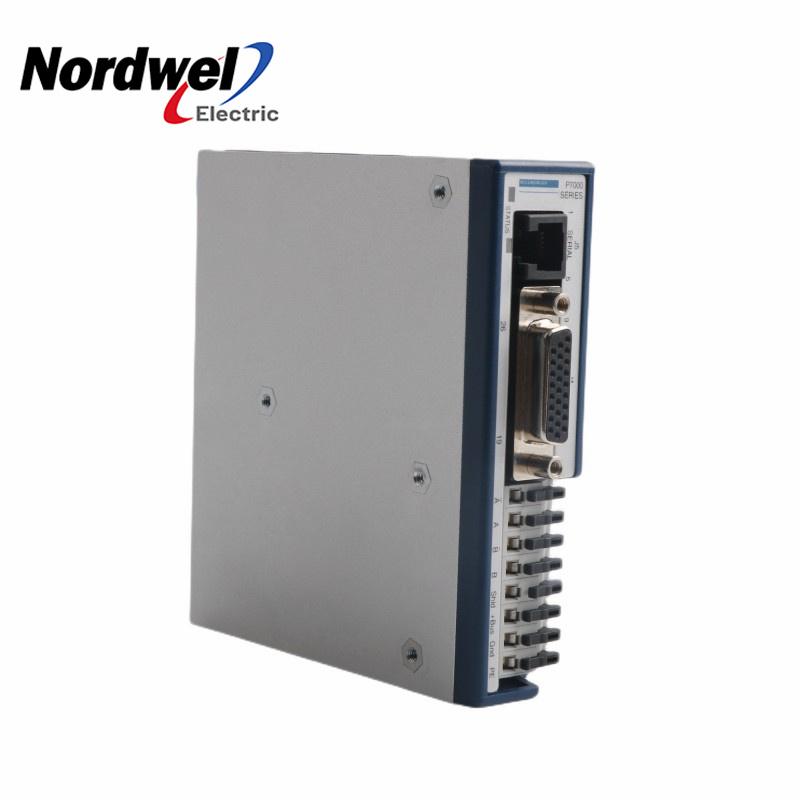

MOTION DRIVER
Product Description:
The P70530 increments its internal step counter on the ON-toOFF transition of the LED in an opto isolator. Minimum ON and minimum OFF times are both 250 ns. This results in a maximum step input frequency of 2 MHz. Pulses that do not meet minimum times may be ignored by the drive's electronics. The input circuitry is suitable for use with 5-volt logic (single ended or differential). It is best to drive the input to both logic states rather than utilize open collector transistors. The STEP input is sensitive to high frequency noise and should be supplied through shielded cable.
There are nine configurable General Purpose Inputs (GPI’s) on the P70530 drive. All the inputs share a common optically isolated bus (Pull Up/Down). The common bus simplifies the wiring allowing a common point to connect either sinking or sourcing input devices.
The P70530 drive is uniquely designed to sense the motor shaft position at
all times. The drive monitors the commanded position and compares it to
the actual position. As with any two-phase step motor, when the shaft
position and commanded position are greater than two full steps apart a
stall will be detected and the drive will fault.
