Part Number:
6ES7307-1KA00-0AA0Weight:
1.1 kgDimensions:
20.3 cm x 12.7 cm x 12.7 cmManufacture Year:
2022Place of Origin:
GermanyCertification:
CO,CQDescription:

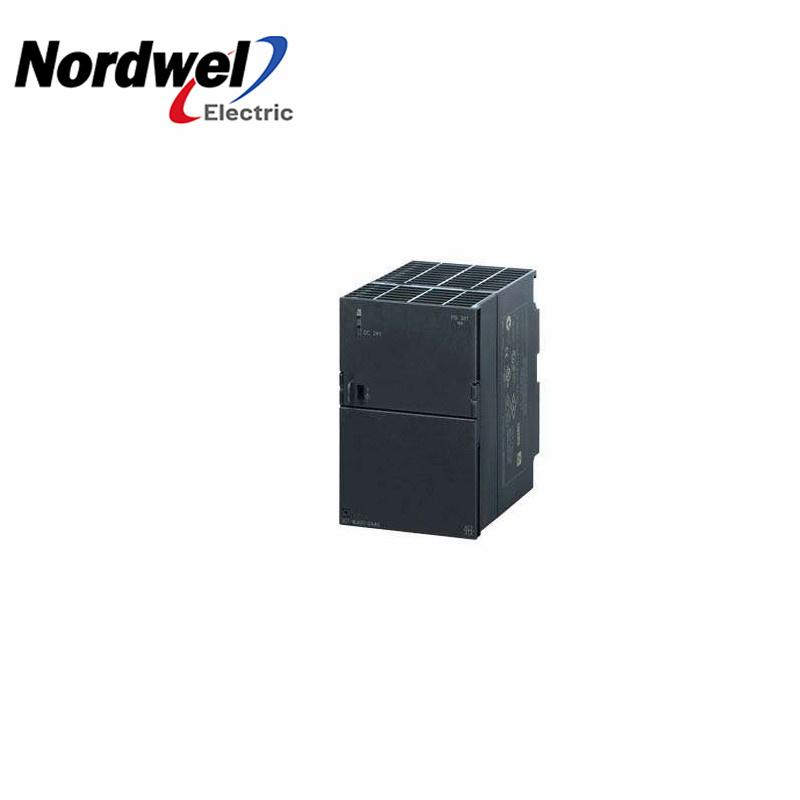

Power Supply - 10A
SIMATIC S7-300 Regulated power supply PS307 input: 120/230 V AC, output: DC 24 V / 10 A
Input
Input 1-phase AC
● Note Automatic range selection
supply voltage
● 1 at AC rated value 120 V
● 2 at AC rated value 230 V
input voltage
● 1 at AC 85 ... 132 V
● 2 at AC 170 ... 264 V
Wide-range input No
Overvoltage resistance 2.3 × Vin rated, 1.3 ms
Mains buffering at Vin = 93/187 V
Mains buffering at Iout rated, min. 20 ms; at Vin = 93/187 V
Rated line frequency 1 50 Hz
Rated line frequency 2 60 Hz
Rated line range 47 ... 63 Hz
input current
● at rated input voltage 120 V 4.2 A
● at rated input voltage 230 V 1.9 A
sales3@askplc.com
+86 18150117685
we offer original new with 1 year warrenty
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
