Part Number:
3636RWeight:
2.42 kgDimensions:
2.2x40.6x39.8cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

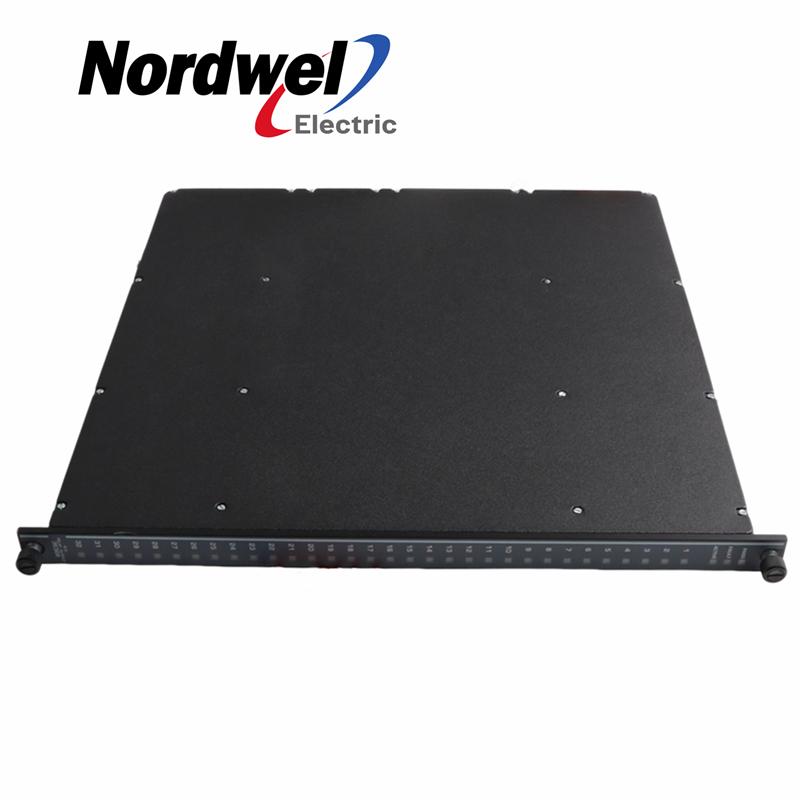

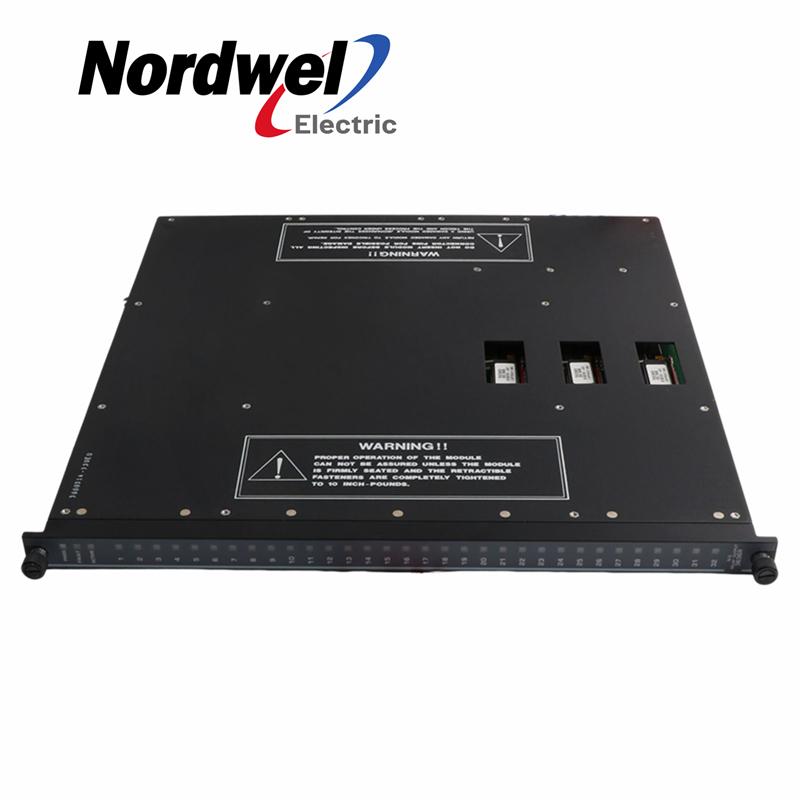

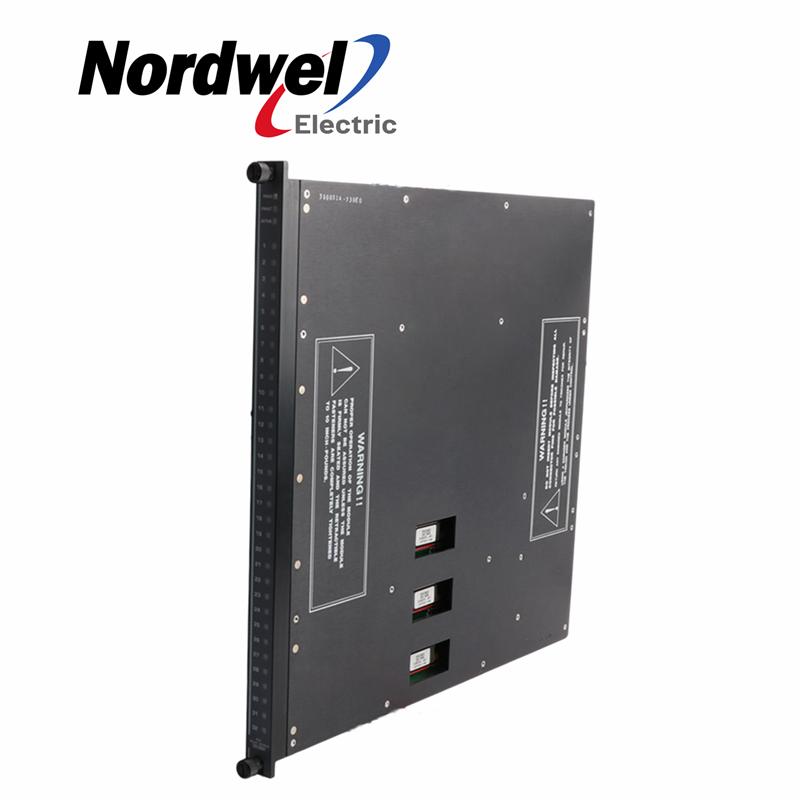

TRICONEX 3636R Relay Output Module,Non-triplicated
Manufacturer : Triconex
Product No: 3636R
Product Type :Relay Output Module
Full description: TRICONEX 3636R Relay Output Module,Non-triplicated
Type Non-triplicated, RO
Points 32, non-commoned
Voltage Range 125 VAC/VDC,maximum
Current Load 2A, maximum
Minimum Permissible Load 10 mA, 5 VDC
Switching Power, Resistive 2,000 V A, 150 watts maximum
Point Isolation 1,500 VDC 1,900 VDC1
Fuses 1 per output (2.5A fast-acting)
Manager Steve quotes to you
cn@mooreplc.com
+8618005028963
TRICONEX 3636R Relay Output Module PDF
The Model 3636R and 3636T Relay Output (RO) Modules are non-triplicated modules for use on non-critical
points which are not compatible with “high-side” solid-state output switches.
An example is interfacing with annunciator panels. The Relay Output module receives output signals from the Main
Processors on each of three channels.The three sets of signals are then voted,and the voted data is used to drive
the 32 individual relays.
Each output has a loopback circuit which verifies the operation of each relay switch independently of the presence
of a load, while ongoing diagnostics test the operational status of the module. Failure of any diagnostic activates
the Fault indicator, which in turn activates the chassis alarm.
we offer original new with 1 year warrenty
