Part Number:
9760-210Weight:
0.64 kgDimensions:
25.1*11.2*6cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

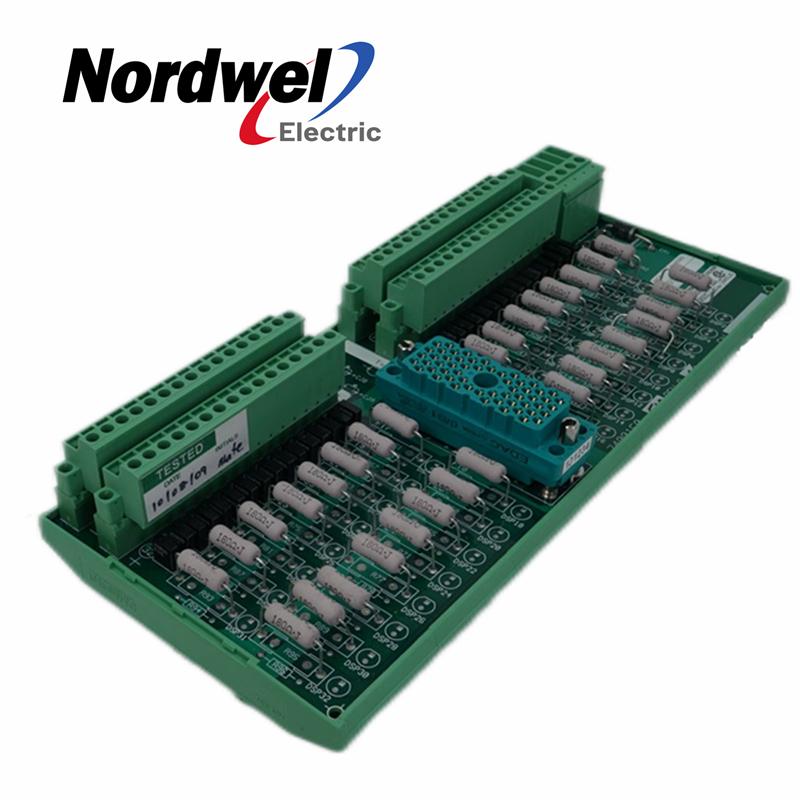

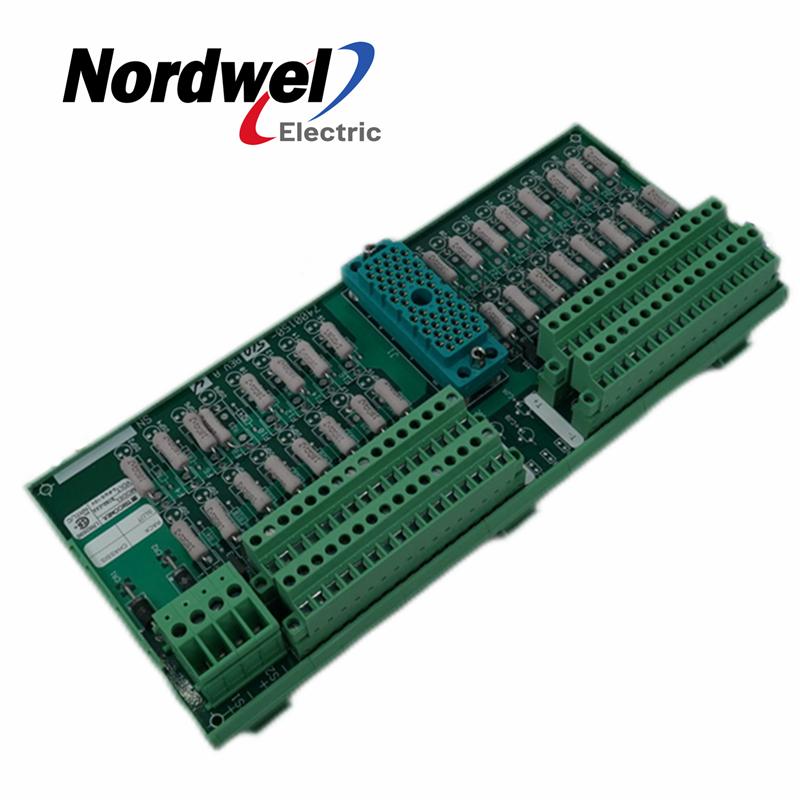

TRICONEX 9760-210 32-Point Current Input Term Panel
Manufacturer : Triconex
Product No: 9760-210
Product Type :Termination panel Board
Full description: TRICONEX 9760-210 32-Point Current Input Term Panel, 0–5 VDC, 32 pts
Termination panel 9760–210 is compatible with 0–5 VDC analog input modules and has 32
power output terminals (+) and 32 current input terminals (–).
Each positive terminal is current-limited with a 180 Ohm series resistor. Each input has a
precision 250 Ohm resistor for 0–5 VDC current-to-voltage conversion.
The panel supports redundant 24 VDC power sources with diode ORing.
The modules compatible with 9760–210 have 64 points, which means you must use two term
panels for each analog input module.
Manager Steve quotes to you
cn@mooreplc.com
+8618005028963
we offer original new with 1 year warrenty
4)Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
