Payment:
T/TPart Number:
RS81*BWeight:
0.68kgDimensions:
2.2x23.8x38cmManufacture Year:
The latest yearPlace of Origin:
JapanCertification:
COODescription:

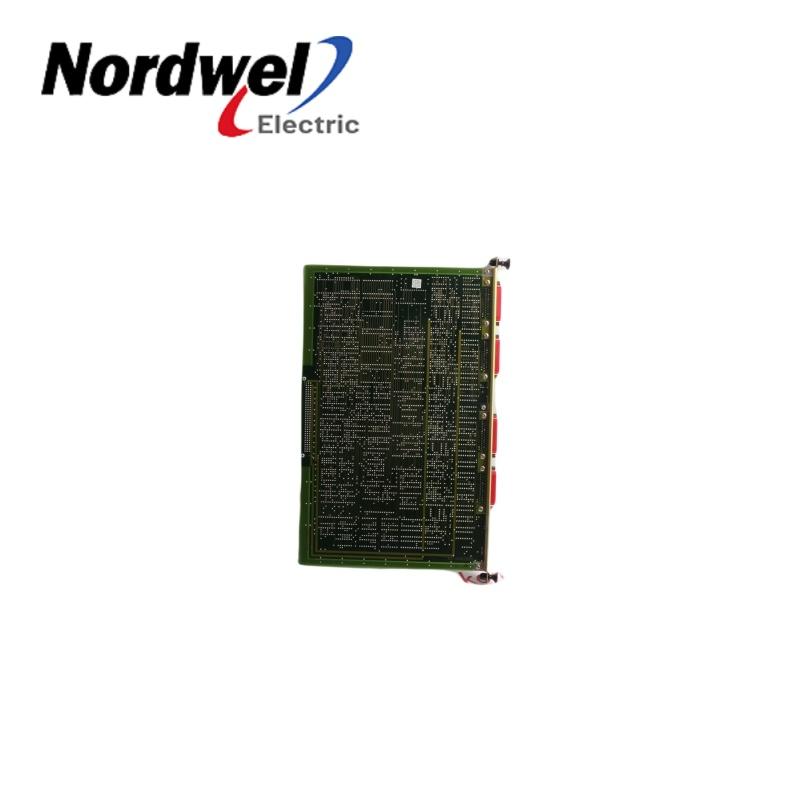

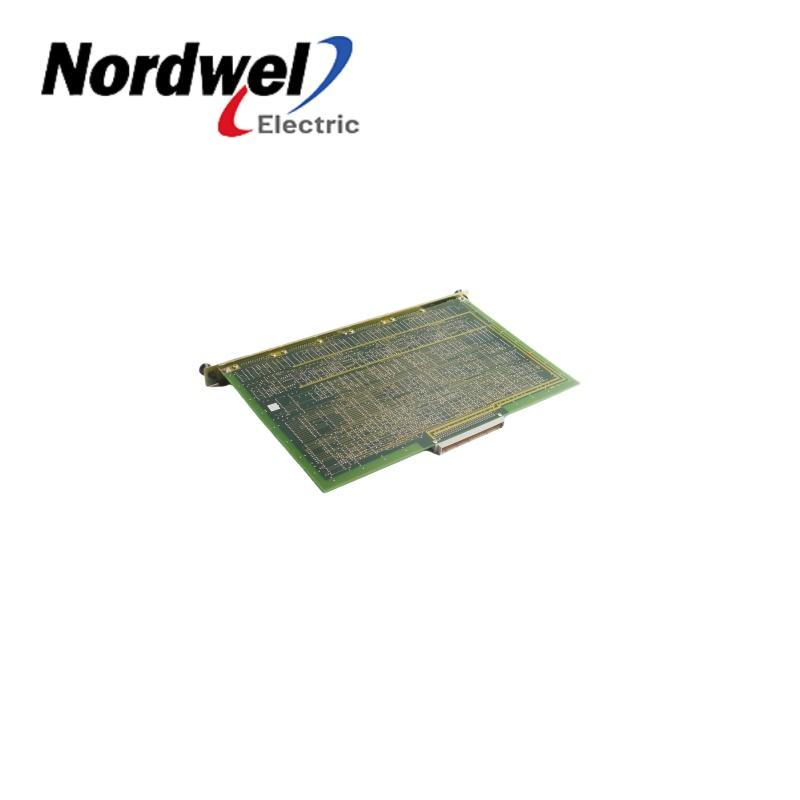

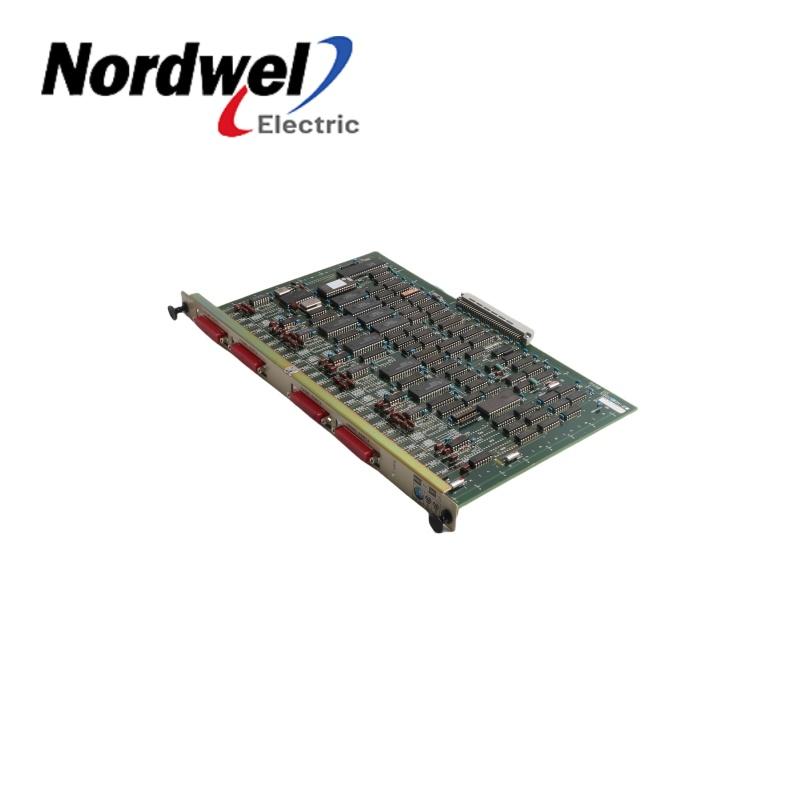

Module- Specifications
Model: RS81*B
Brand: Yokogawa
Condition: Brand New and Origin
Interface type: It has Q1-Q4 signal output interface and IQ1-IQ4 configurable input and output ports.
Signal output capacity: The output load capacity of the Q-point thyristor reaches 4A, which can directly drive large load devices such as contactors.
Input signal detection: Some input points can monitor the movement speed, and the movement speed, direction, angle, displacement, stop and other states of the movement axis can be detected through proximity switches or encoders.
———> Stella
E-mail: sales@askplc.com
Phone/Whatsapp: +8618159889985
- Feature
Easy installation: It uses the same snap-on installation method as PLC and can be installed on a standard DIN rail, which is convenient for installation and removal, and easy to assemble and expand the equipment in different application scenarios.
With self-detection function: Pulse signals can be sent on T1-T4 and the X1 and X2 terminals on the right module to detect whether the external device is normal, such as whether there is a disconnection or short circuit, ensuring the reliability and security of signal transmission.
Convenient data storage and transmission: Equipped with an SD card slot, and the SD card is designed with a cover and locking mechanism, which is convenient for downloading programs and storing data through the SD card, and ensures that the SD card will not accidentally fall or be easily taken away, improving data security.
- Frequesntly Asked Questions
Q: Can Yokogawa ST3*D Multi Status Input Card directly connect to ordinary switch signals?Q: Can the Yokogawa RS81*B Interface Card be used alone?
A: No, it is an interface card designed for the Centum XL Micro XL system and must be used in conjunction with other components of the system to fully function.
Q: How to configure the input and output functions of IQ1-IQ4?
A: For specific configuration methods, please refer to the product manual of the Yokogawa RS81*B Interface Card. Generally, it is flexibly configured through specific software or hardware jumpers to meet different application requirements.
About Nordwel
(1) 24 hours online Service
(2) Large Inventory
(3) 12-month warranty
(4) Brand New and Original
(5) 20-Year Exerience in Automation Area
|
