Item NO.:
8V1022.001-2Part Number:
8V1022.001-2Weight:
4.0kgDimensions:
7.0×37.5× 23.5cmManufacture Year:
The lastest yearPlace of Origin:
AustriaCertification:
COODescription:

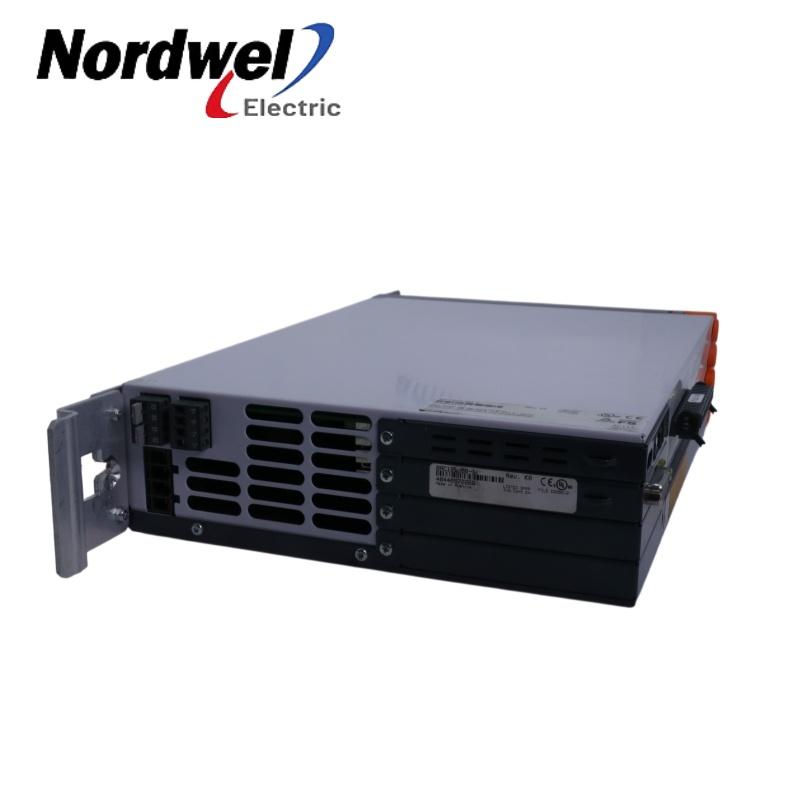

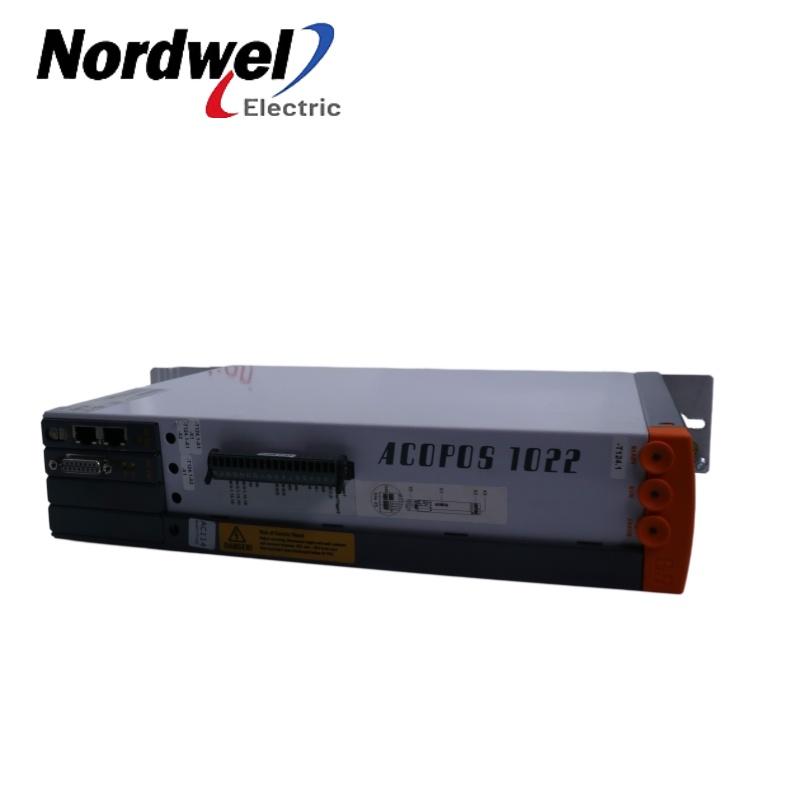

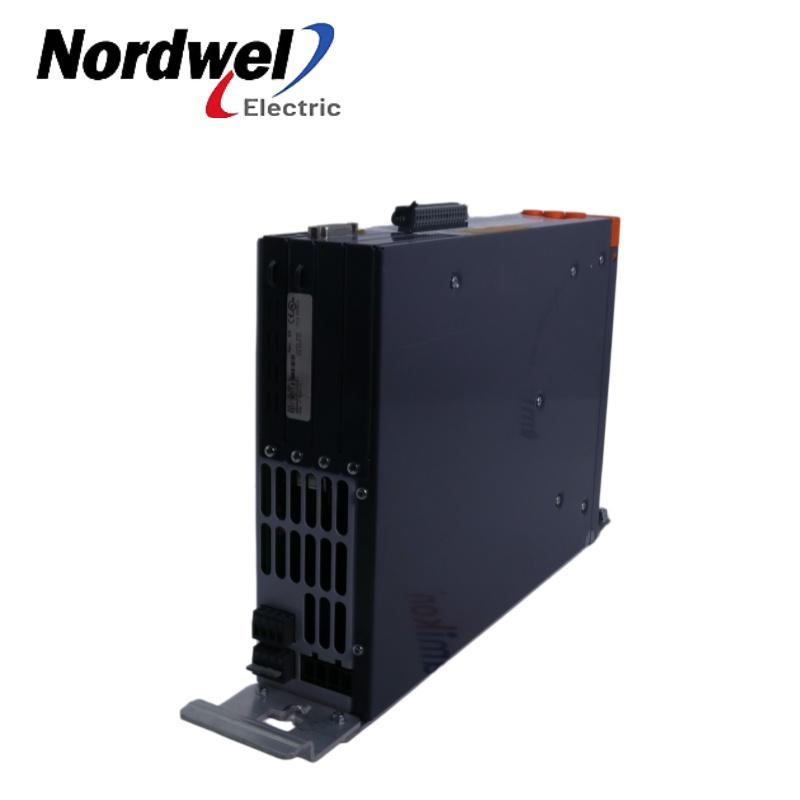

ACOPOS servo drive
Product Information
|
Model number |
8V1022.001-2 |
|
Country of origin |
Austria |
|
Condition |
Brand New |
|
Dimension |
7.0×37.5× 23.5cm |
|
Weight |
4.0kg |
|
Lead time Warranty |
in stock |
Contact us to obtain the latest prices and discounts
Sales Manager:
Stella
Send an email:
Contact in Whatsapp:
Manufacturer: B&R (Bernecker + Rainer)
Model: 8V1022.001-2
Product Type: ACOPOS servo drive (coated version)
Primary Function: Provides precise motion control for servo motors in industrial automation systems
System Platform: ACOPOS servo drive family, compatible with B&R automation systems
Power Rating: 1 kW; continuous current 2.2 A
Mains Input Voltage: 3x 400 VAC to 480 VAC ±10%, or 3x 230 VAC ±10%
Frequency: 50/60 Hz ±4%
Installed Load: Max. 3 kVA
Inrush Current: 4 A at 400 VAC
Switch-on Interval: >10 s
Integrated Line Filter: Yes, per EN 61800-3, category C3
DC Bus Capacitance: 235 μF
24 VDC Power Supply Input: 24 VDC ±25%; input capacitance 8200 μF
Current Consumption (24 VDC): Max. 2.5 A + current for motor holding brake
Motor Connection: 1 output
Continuous Current: 2.2 A (at 400 VAC, 5/10/20 kHz switching frequency, 40°C ambient, <500m elevation)
Peak Current: 14 A
Nominal Switching Frequency: 20 kHz (selectable: 5/10/20 kHz)
Max. Output Frequency: 598 Hz (monitored to comply with Regulation (EC) 428/2009)
Max. Motor Cable Length: 25 m
Protective Measures: Overload protection, short circuit and ground fault protection
Motor Holding Brake Output: Max. output current 1 A; open-circuit monitoring threshold approx. 385 mA; unlimited electronic switching cycles
Braking Resistor: Peak power 3.5 kW; continuous power 130 W
Limit Switch and Reference Inputs: 3 inputs (sink type, 24 VDC nominal, <5 V low, >15 V high, approx. 4 mA input current)
Enable Inputs: 1 input (sink type, 24 VDC nominal, <5 V low, >15 V high, approx. 30 mA input current)
Trigger Inputs: 2 inputs (sink type, 24 VDC nominal, <5 V low, >15 V high, approx. 10 mA input current; digitally filtered, rise/fall delay approx. 52-53 μs)
OSSD Signals: Not permitted on this model
Efficiency Classification: IE2 (loss data at 5 kHz switching frequency)
Standby Losses: 13.2 W
Permissible Mounting Orientations: Vertical hanging or horizontal face-up; standing horizontally is not permitted
Installation Elevation: Nominal 0-500 m; max. 2000 m (with current derating above 500 m)
Pollution Degree: 2 (non-conductive pollution)
Overvoltage Category: II
Protection Rating: IP20
Operating Temperature: Nominal 5-40°C; max. 55°C (with derating)
Storage Temperature: -25 to 55°C
Transport Temperature: -25 to 70°C
Operating Relative Humidity: 5 to 85%
Storage Relative Humidity: 5 to 95%
Transport Relative Humidity: Max. 95% at 40°C
Certifications: CE, cULus (E225616, Power conversion equipment), EAC, KC; functional safety approved (varies with configuration)
Dimensions (W × H × D): 70.5 mm × 375 mm × 235.5 mm (2.78 in × 14.76 in × 9.27 in)
Weight: 4.0 kg (8.82 lb)
