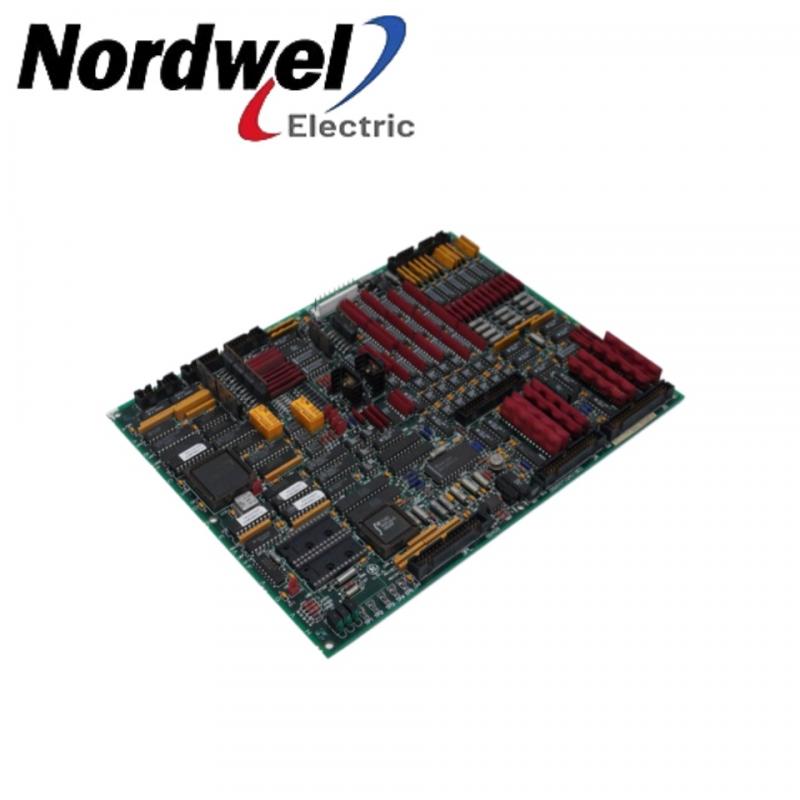

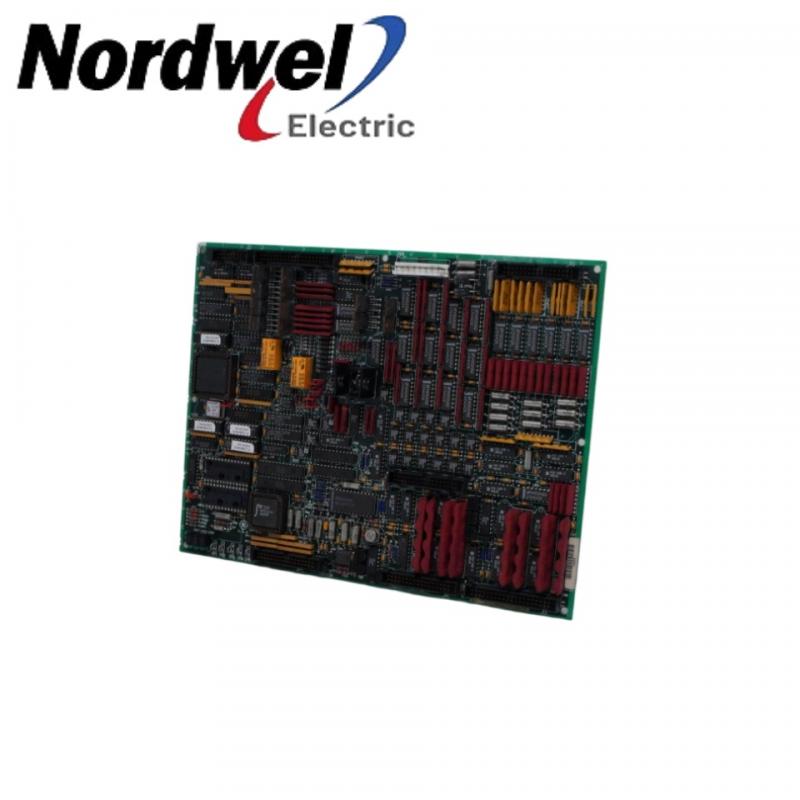

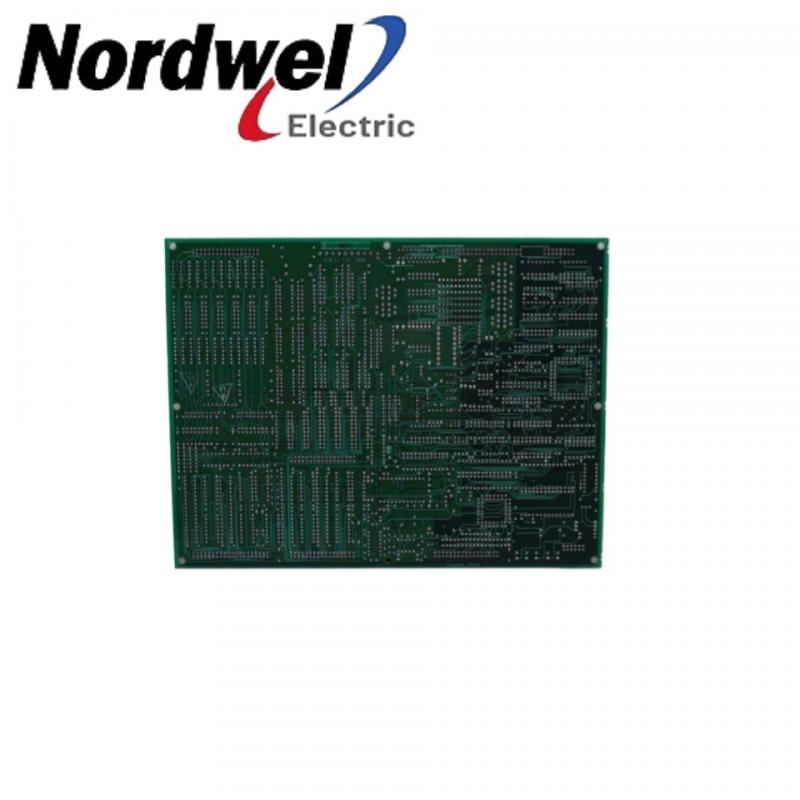

General Electric DS215TCQAG1BZZ01A Six-jumper analog I/O board for Mark V turbine systems.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
|
|
Part number |
DS215TCQAG1BZZ01A |
|
Description |
|
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed DS215TCQAG1BZZ01A in stock!!!
Product Description
The General Electric DS215TCQAG1BZZ01A is a specialized analog I/O board with factory-loaded firmware, designed for legacy Speedtronic Mark V turbine control systems to act as a contactor driver and processor for LVDT feedback telemetry. It features six 34-pin ribbon connectors, two 40-pin interfaces, six onboard calibration jumpers for mA output and RS232 testing, and six diagnostic LEDs for monitoring board health. The 16710-46 interconnect cable provides a 46-foot, 3-conductor, 22 AWG armored framework to feed vibration signals from heavy-duty acceleration sensors to the Mark V analog monitoring ports.
Parameter Information
Ribbon Ports: 6 × 34-pin cable connectors
Bus Ports: 2 × 40-pin hardware connectors
Status LEDs: 6 light-emitting diode indicators
Configuration Jumpers: 6 adjustable hardware pins
Current Loops: 4-20 mA telemetry scaling
Transducer Feedback: 12 differential processing paths
Firmware Version: Pre-loaded BZZ01A software code
Hardware Group: Group 1 component configuration.
Logic Voltage: 5 VDC power rails
Serial Protocol: RS232 digital test circuit
Sensor Inputs: Thermocouple, LVDT, vibration lines
Circuit Protection: 100% heavy industrial isolation
FAQ
Which specific Speedtronic turbine control architecture utilizes the DS215TCQAG1BZZ01A analog I/O board?
It utilizes the legacy GE Mark V turbine control system.
How many 34-pin ribbon cable interfaces are integrated into the DS215TCQAG1BZZ01A circuit layout?
It integrates six onboard 34-pin ribbon cable connectors.
What factory-preloaded software designation is embedded into the DS215TCQAG1BZZ01A microprocessor?
It contains the specific BZZ01A dedicated firmware version.
Application
Heavy Utility Control Infrastructure: Placed inside central power stations to process complex differential analog signals, utilizing six hardware mA/RS232 calibration jumpers to maintain strict governor valve regulation.
Combined Cycle Power Plants (CCPP): Integrated into co-generation control networks to balance load distribution between primary gas turbines and secondary heat recovery steam generators (HRSG) under fluctuating thermal demands.
Petrochemical Turbine Drive Installations: Applied in large-scale chemical processing plants where massive steam turbines drive heavy centrifugal compressors, tracking real-time position status to avoid mechanical overspeed.
Industrial Cogeneration Facilities: Embedded in onsite manufacturing utility plants to sync power generation loops directly with facility manufacturing processes, safeguarding critical hardware using six onboard diagnostic LEDs.
|
