Part Number:
330102-00-40-90-11-05Weight:
0.15kgDimensions:
1.5x1.3x117cmPlace of Origin:
USACertification:
CO,CQDescription:
Bently Nevada 330102-00-40-90-11-05 Armored proximity probe for machinery vibration monitoring.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
|
|
Part number |
330102-00-40-90-11-05 |
|
Description |
|
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 330102-00-40-90-11-05 in stock!!!
Product Description

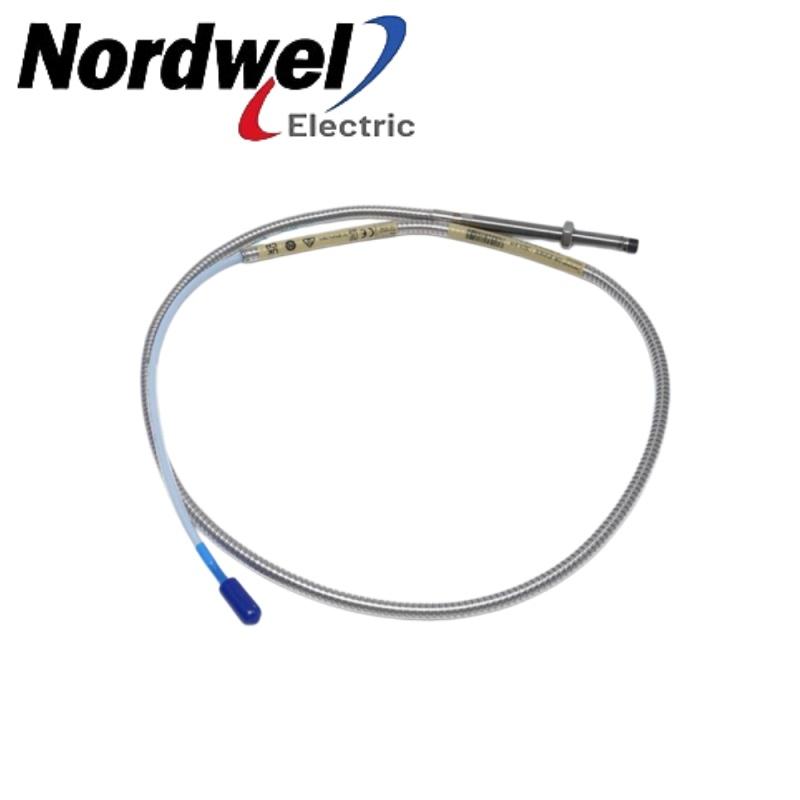

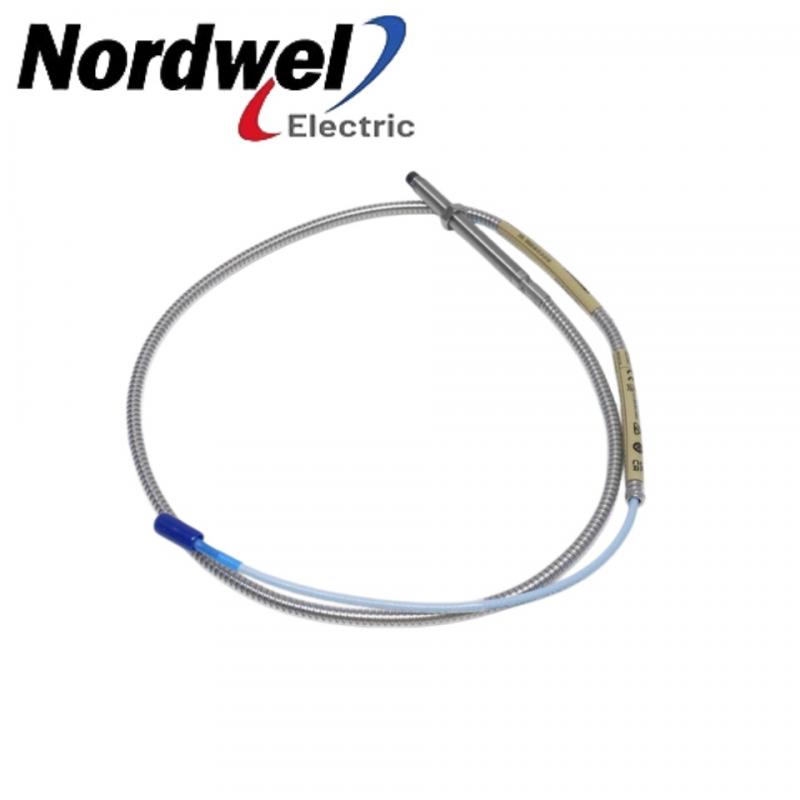

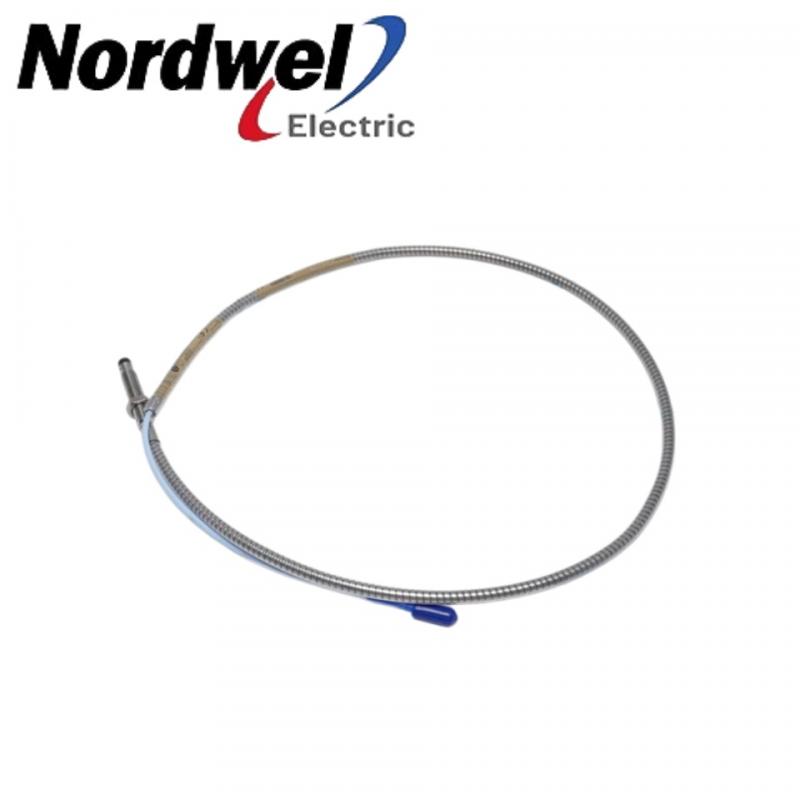

The Bently Nevada 330102-00-40-90-11-05 is an 8 mm XL proximity probe assembly, featuring a 3/8-24 UNF thread, a 0.0-inch unthreaded length, and a 4.0-inch case length. The 9.0-meter system incorporates an FEP jacketed, armored cable with FluidLoc technology to prevent fluid wicking, using a ClickLoc connector. It delivers a 2 mm (80 mils) linear range with a 7.87 V/mm (200 mV/mil) scale factor, operating from -52°C to +177°C. This configuration (part of the 3300 XL system) includes agency approvals for hazardous locations, according to the datasheet.
Parameter Information
Unthreaded Length Option: 0in
Overall Case Length Option : 4in
Total Length Option: 9.0 meters (29.5 feet)
Agency Approval Option : CSA, ATEX, IECEx Approvals
Standard
Probe : -52°C to +177°C (-62°F to
+350°F)
Extended
Temperature
Range Probe: Less than ±0.74 mm (±29
mils)-52°C to +218°C (-62°F to
+425°F) for the probe tip; -
51°C to +260°C (-60°F to
+500°F) for the probe cable
and connector
Armor
(optional on
both) : Flexible AISI 302 or 304 SST
with FEP outer jacket
Frequency
Response : (0 to 10 kHz), +0, -3 dB, with
up to 305 meters (1000
feet) of field wiring
Minimum Target
Size: 15.2 mm (0.6 in) diameter
(flat target)
Connector
Materia: Gold-plated brass or goldplated beryllium copper. Gold-plated brass or goldplated beryllium copper.
FAQ
What is the overall case length specified by the code 40 in 330102-00-40-90-11-05?
It specifies a 4.0-inch overall case length.
Which hazardous area agency certifications are granted under the 05 option of 330102-00-40-90-11-05?
It includes CSA, ATEX, and IECEx certifications.
What nominal probe DC resistance value applies to the 9.0-meter 330102-00-40-90-11-05 assembly?
The resistance is 9.87 ± 0.50 ohms.
Application
Thermal & Hydroelectric Power Plants: The 330102-00-40-90-11-05 FS-TSAI-1620M proximity probe system is deployed within generator protection, steam turbine control, and balance-of-plant (BOP) systems to monitor dense digital status points, critical shaft vibration, and oil-film bearing position parameters.
Nuclear Power Facilities: Integrated into safety-critical control loops and high-reliability containment monitoring networks to track machinery vibration under strict functional safety protocols (SIL 2/SIL 3).
Petrochemical & Gas Refineries: Deployed on critical turbomachinery, centrifugal compressors, and high-pressure pumps to provide precise telemetry in hazardous, explosion-prone chemical processing environments.
Marine & Offshore Propulsion Platforms: Installed on vessel propulsion shafts, heavy marine gearboxes, and offshore drilling machinery to ensure reliable asset protection under continuous mechanical stress and strict maritime regulations.
|
