Part Number:
330102-00-16-90-11-05Weight:
0.15kgDimensions:
1.5x1.3x117cmPlace of Origin:
USACertification:
CO,CQDescription:
Bently Nevada 330102-00-16-90-11-05 Nine-meter fluidloc armored probe for machinery monitoring.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
|
|
Part number |
330102-00-16-90-11-05 |
|
Description |
|
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 330102-00-16-90-11-05 in stock!!!
Product Description

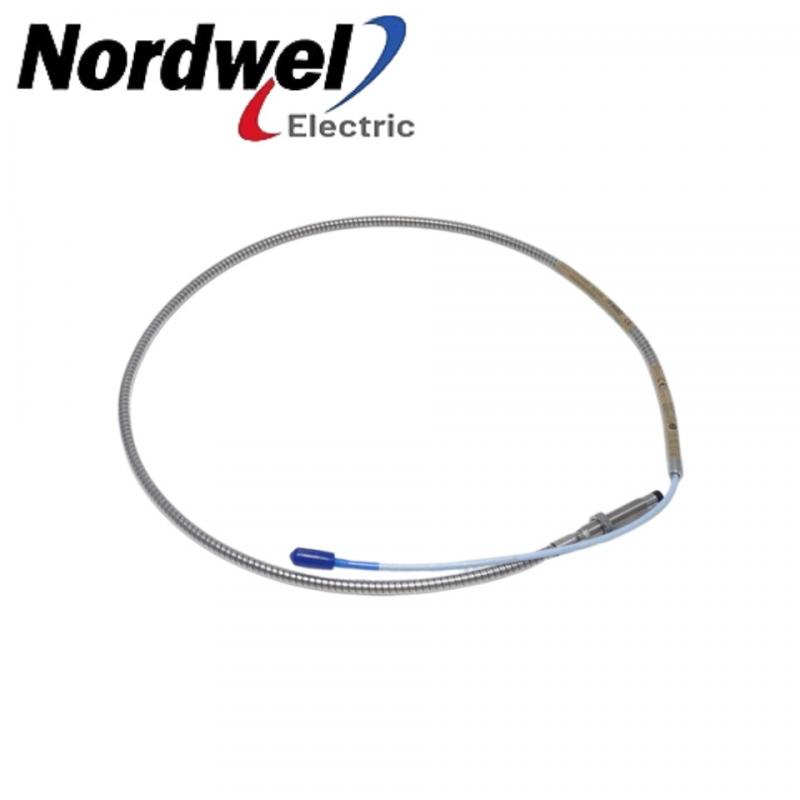

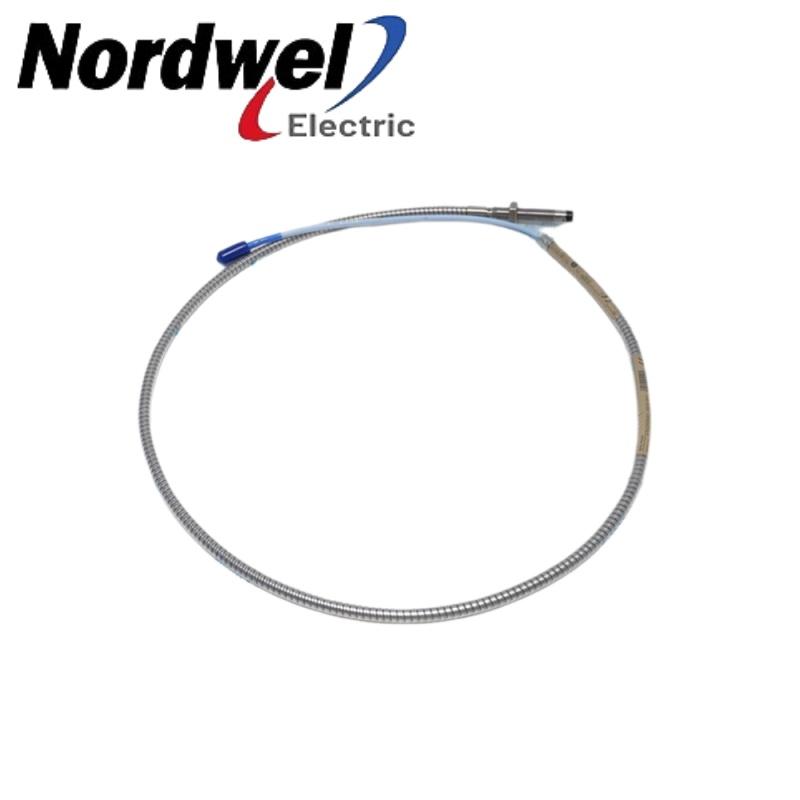

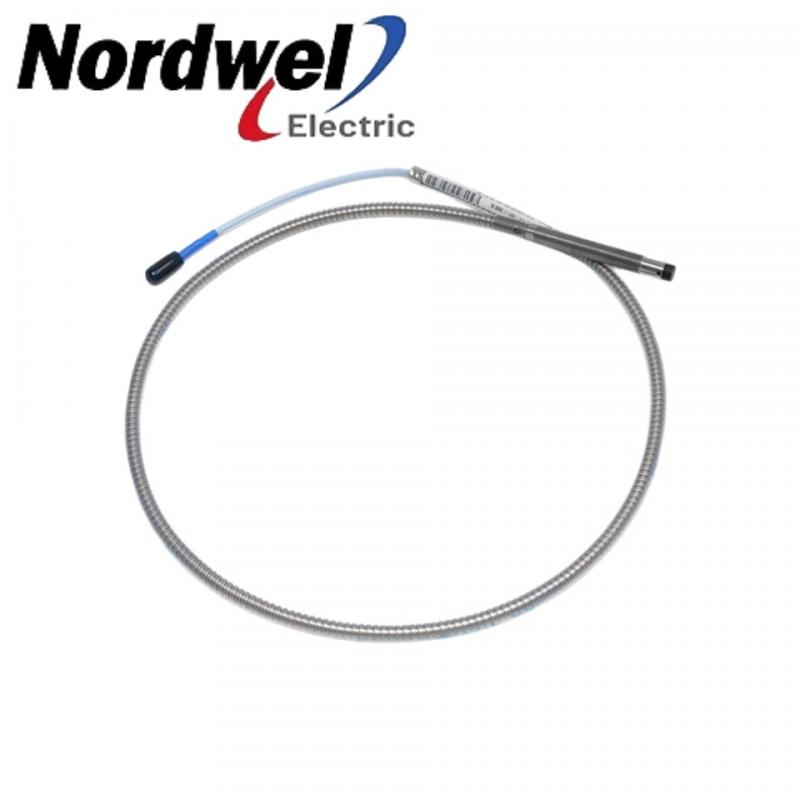

The Bently Nevada 330102-00-16-90-11-05 is a 3300 XL 8 mm proximity probe designed for accurate, non-contact vibration and position measurement in rotating machinery. This specific unit features a 3/8-24 UNF thread, a 1.6-inch fully threaded case, and a 0.0-inch unthreaded length. It includes a 9.0-meter length of FluidLoc cable, which provides robust protection against oil migration, terminated with a secure ClickLoc connector that features an integrated protector to prevent loosening under high vibration. Constructed for durability, it uses stainless steel armor to protect against harsh, industrial environments. The probe operates as an eddy current transducer system, delivering a precise voltage signal proportional to the target gap. Designed for versatility, this probe adheres to strict standards and supports comprehensive hazardous area approvals (CSA, ATEX, IECEx).
Parameter Information
Unthreaded Length Option: 0in
Overall Case Length Option : 1.6in
Total Length Option: 9.0 meters (29.5 feet)
Connector and Cable-Type Option: Miniature coaxial ClickLoc
connector with connector
protector, FluidLoc cable
Agency Approval Option : CSA, ATEX, IECEx Approvals
Standard
Probe : -52°C to +177°C (-62°F to
+350°F)
Extended
Temperature
Range Probe: Less than ±0.74 mm (±29
mils)-52°C to +218°C (-62°F to
+425°F) for the probe tip; -
51°C to +260°C (-60°F to
+500°F) for the probe cable
and connector
Armor
(optional on
both) : Flexible AISI 302 or 304 SST
with FEP outer jacket
Frequency
Response : (0 to 10 kHz), +0, -3 dB, with
up to 305 meters (1000
feet) of field wiring
Minimum Target
Size: 15.2 mm (0.6 in) diameter
(flat target)
Connector
Materia: Gold-plated brass or goldplated beryllium copper. Gold-plated brass or goldplated beryllium copper.
FAQ
What is the exact total length option designated by the code 90 in 330102-00-16-90-11-05?
It indicates a 9.0-meter (29.5 feet) total length option.
Which specific hazardous area approvals are covered under the 05 option code of 330102-00-16-90-11-05?
It covers CSA, ATEX, and IECEx certifications.
What nominal probe DC resistance value applies to the 9.0-meter 330102-00-16-90-11-05 model?
The resistance is 9.87 ± 0.50 ohms.
Application
Nuclear Power Facilities: Integrated into safety-critical control loops and high-reliability containment monitoring networks to track machinery vibration under strict functional safety protocols (SIL 2/SIL 3).
Petrochemical & Gas Refineries: Deployed on critical turbomachinery, centrifugal compressors, and high-pressure pumps to provide precise telemetry in hazardous, explosion-prone chemical processing environments.
Marine & Offshore Propulsion Platforms: Installed on vessel propulsion shafts, heavy marine gearboxes, and offshore drilling machinery to ensure reliable asset protection under continuous mechanical stress and strict maritime regulations.
Heavy Industrial Manufacturing Facilities: Embedded in large steel mills, mining operations, and paper processing plants to actively trace machinery health on massive fluid-film bearing equipment.
|
