Brand:
Bently NevadaItem NO.:
330104-00-09-10-01-0Part Number:
330104-00-09-10-01-00Weight:
0.1kgDimensions:
1.8x1.5x56cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:
Proximity Probes
Product Information
Model number
330104-00-09-10-01-00
Country of origin
USA
Condition
Brand New
Lead time Warranty
in stock
Dimensions
1.8x1.5x56cm
Weight
0.1kg
Contact us for the latest pricing and discount information
Stella
Sales Manager:
Send an email:
Contact in Whatsapp:
Theory of Operation

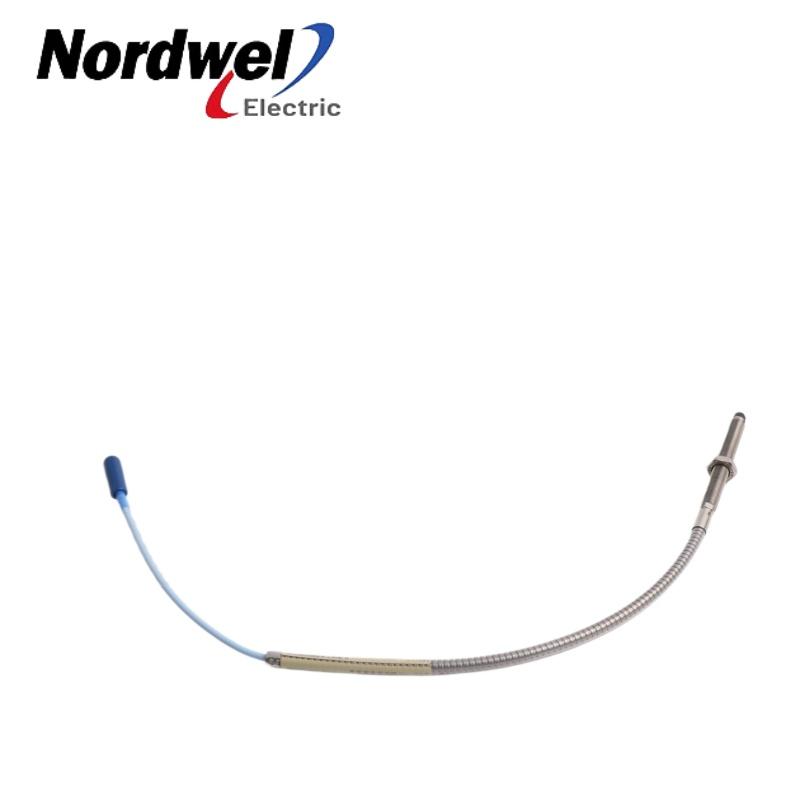

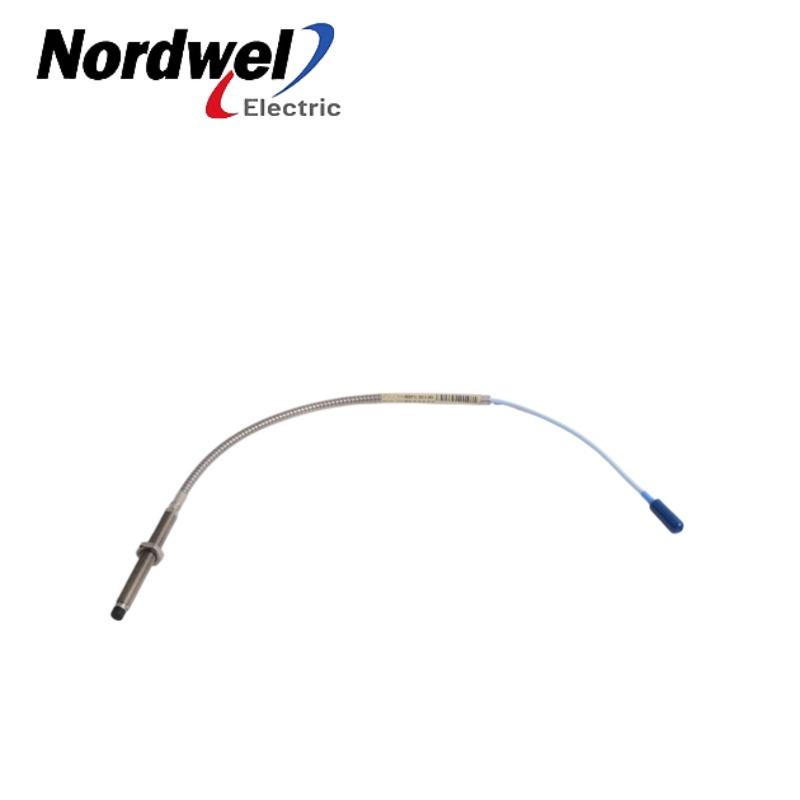

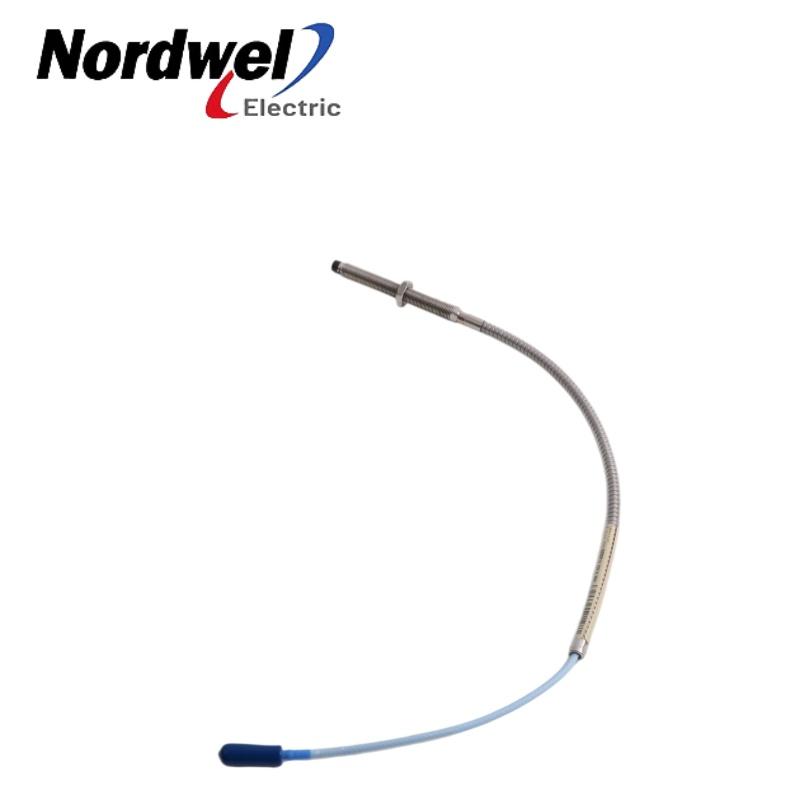

This armored probe with M10×1 metric threads delivers a 90 mm case and 1.0 m system length. The zero unthreaded tip allows flush mounting close to the target. Equipped with a standard FEP cable and a pre‑installed connector protector, the assembly ensures reliable signal transmission in harsh environments. Its eddy‑current operation relies on a high‑frequency oscillator within the Proximitor sensor; the probe coil’s impedance shifts with the distance to the conductive surface. The sensor linearly converts this shift into a negative DC voltage (‑1 to ‑17 Vdc) over a 2 mm linear range. This output faithfully represents both steady shaft positions and rapid vibrational displacements, making the system suitable for bearing monitoring without needing component matching.
|
