Item NO.:
330104-00-09-50-02-0Part Number:
330104-00-09-50-02-00Weight:
0.1kgDimensions:
1.8x1.5x56cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

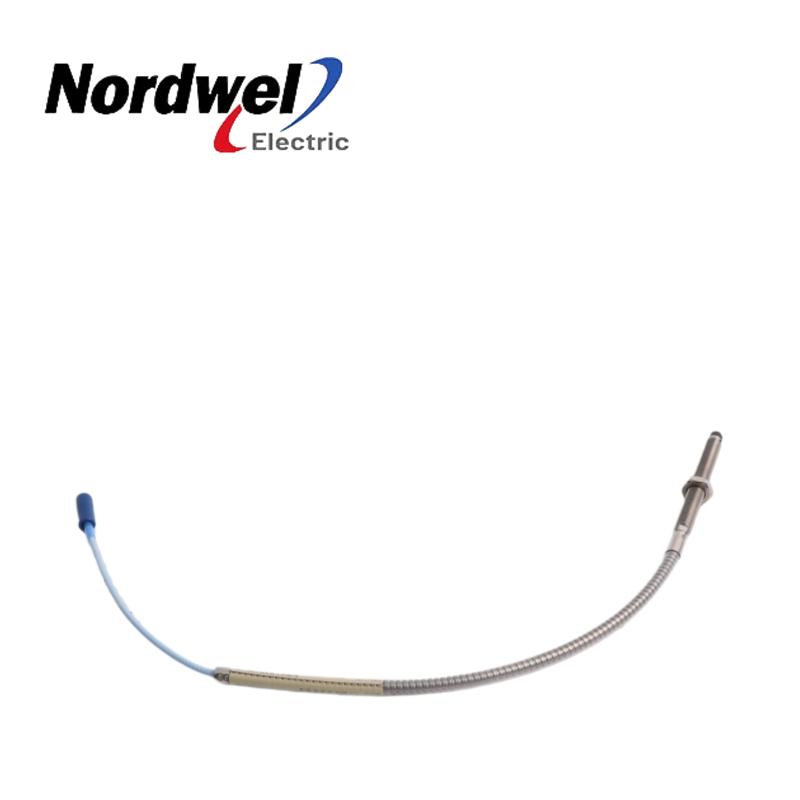

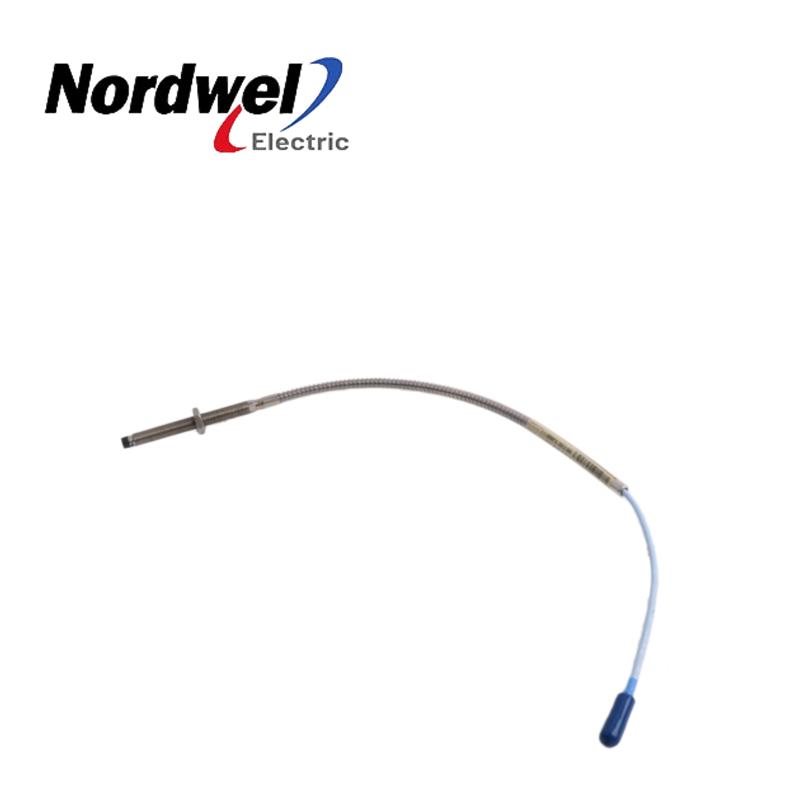

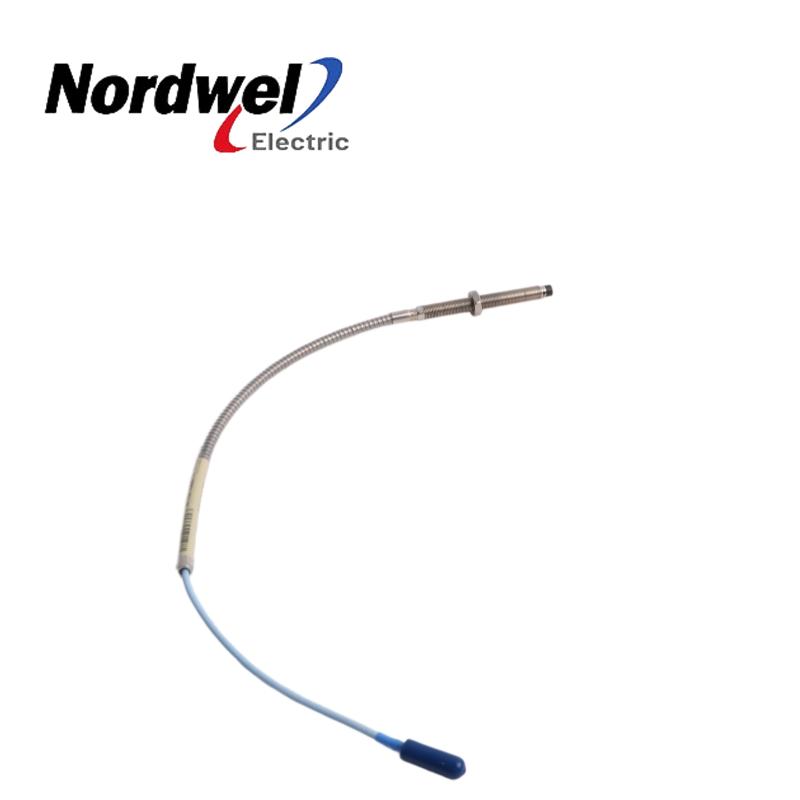

3300 XL 8 mm Proximity Probes
Product Information
|
Model Number: |
330104-00-09-50-02-00 |
|
Description: |
3300 XL 8 mm Proximity Probes |
|
Condition: |
100% Original |
|
manufacturer: |
Bently Nevada |
Sales Manager:
Stella
Send an email:
Contact in Whatsapp:
Installation & Troubleshooting FAQ
Q1: How should the Bently Nevada 330104-00-09-50-02-00 probe be correctly installed in a 3300 XL system?
A1: Install the 330104-00-09-50-02-00 as part of a complete 3300 XL 8 mm proximity measurement chain, including probe, extension cable, and Proximitor sensor. During installation, ensure the probe is rigidly mounted in the machine housing and aligned so the probe face is perpendicular to the rotating shaft surface. Maintain the correct mechanical gap to keep the signal within the linear measurement region defined by the system calibration.
Q2: What should be checked if the output signal is outside the normal voltage range?
A2: First verify the probe gap setting, as incorrect spacing is the most common cause of abnormal output levels. If the probe is too close or too far from the target, the sensor will saturate or drop out of range. Also inspect whether the probe tip is contaminated with oil, dust, or metallic debris, which can distort the eddy current field and affect voltage stability.
Q3: Why does the system show inconsistent vibration trends after commissioning?
A3: Inconsistent vibration trends are often caused by mechanical instability rather than sensor failure. Check for looseness in the probe bracket, shaft misalignment, or bearing degradation. Thermal growth of the machine structure can also slightly shift probe positioning over time, leading to drift in measured vibration amplitude.
Q4: What causes intermittent signal dropouts in operation?
A4: Intermittent signal loss is commonly related to cable integrity issues. Inspect the extension cable for micro-cracks, crushed sections, or poor connector engagement. Ensure proper shielding and grounding to prevent electromagnetic interference from nearby power circuits or VFDs. Fluid ingress along the cable path can also degrade signal continuity if sealing is inadequate.
Q5: How should Keyphasor or speed measurement issues be diagnosed?
A5: Confirm that the probe is correctly aligned with the rotating target notch or keyway and that the air gap is consistent during rotation. If the signal is weak or unstable, check for surface wear on the target mark or incorrect mounting angle. Electrical configuration in the monitoring system should also be verified to ensure correct pulse interpretation.
