Item NO.:
330104-00-09-90-02-0Part Number:
330104-00-09-90-02-00Weight:
0.1kgDimensions:
1.8x1.5x56cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

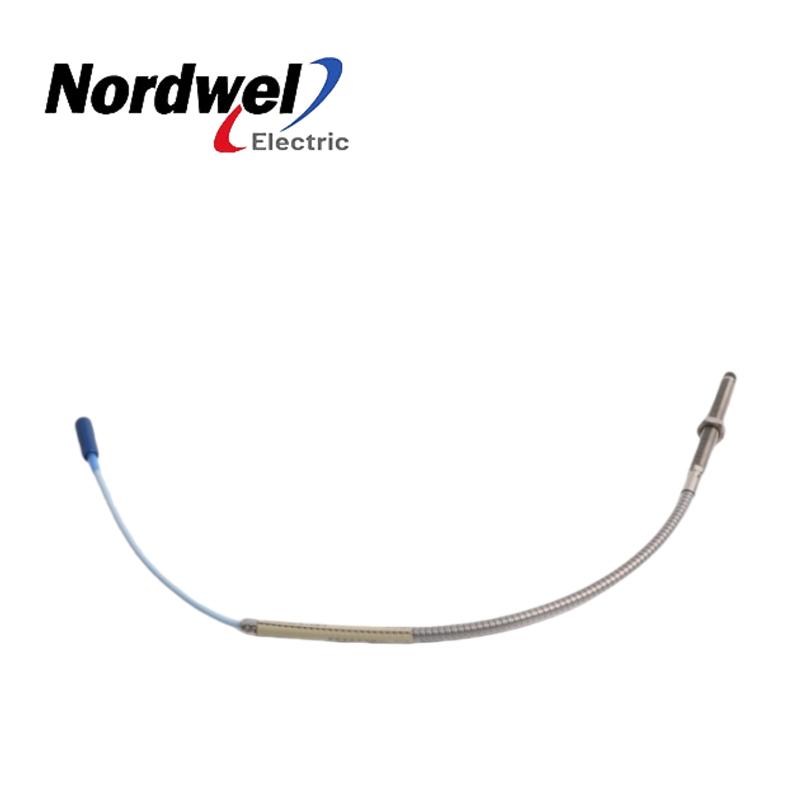

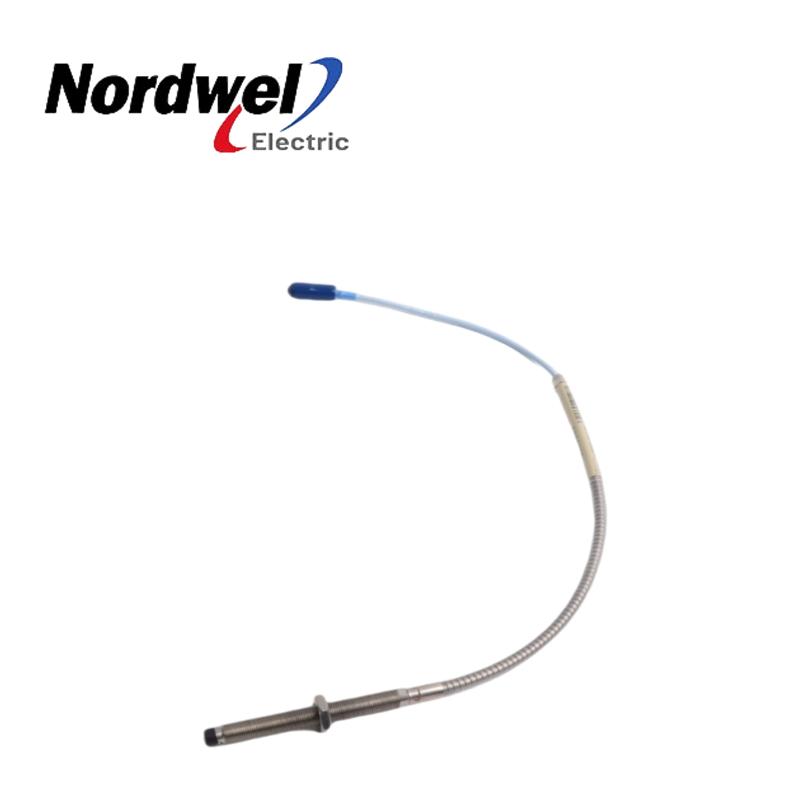

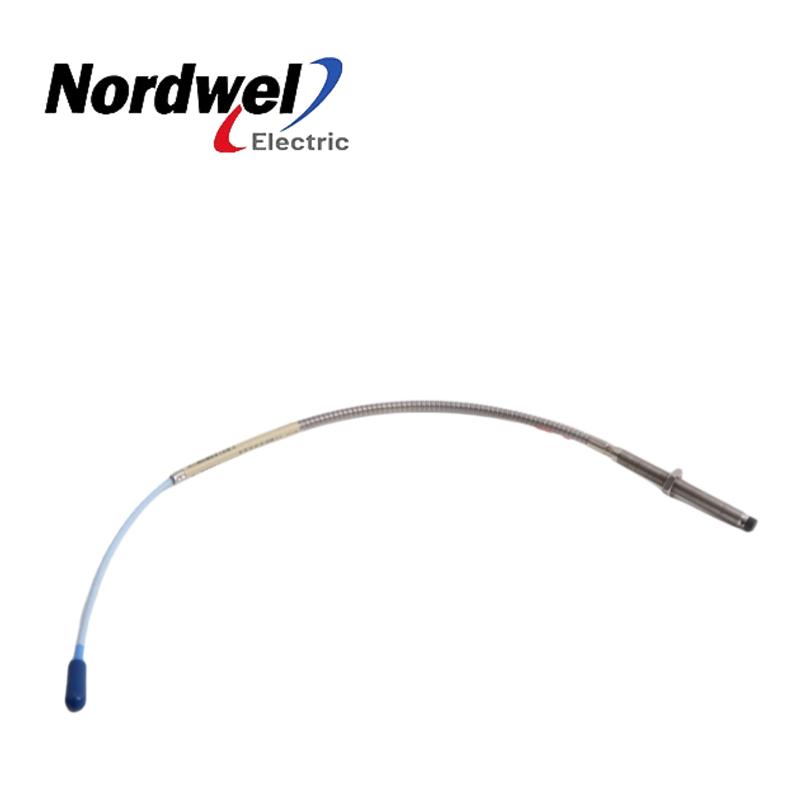

3300 XL 8 mm Proximity Probes
Product Information
|
Model Number: |
330104-00-09-90-02-00 |
|
Description: |
3300 XL 8 mm Proximity Probes |
|
Condition: |
100% Original |
|
manufacturer: |
Bently Nevada |
Sales Manager:
Stella
Send an email:
Contact in Whatsapp:
Installation & Troubleshooting FAQ
Q1: What is the correct system configuration when installing the Bently Nevada 330104-00-09-90-02-00?
A1: The 330104-00-09-90-02-00 must be installed as part of a complete 3300 XL 8 mm proximity system, meaning it always works together with a matched extension cable and Proximitor sensor. During installation, confirm that the probe, cable, and sensor belong to the same 3300 XL family to ensure consistent scaling and signal behavior. Do not mix components from different proximity system generations during commissioning.
Q2: Why does the system show abnormal DC bias voltage after startup?
A2: Abnormal bias voltage usually indicates incorrect probe gap setup or contamination on the probe tip. Verify that the probe is positioned within the recommended operating window relative to the shaft surface. If the gap is too small or too large, the Proximitor sensor output will drift outside its normal range. Recheck mechanical mounting rigidity as vibration looseness can also shift baseline readings.
Q3: What causes unstable vibration amplitude readings during operation?
A3: Unstable readings are often caused by mechanical instability rather than electronics failure. Inspect for shaft misalignment, bearing wear, or oil film instability in fluid-film machines. Also verify that the probe is securely locked in place and not affected by thermal expansion or bracket resonance. Electrical grounding should be checked to avoid induced noise in long cable runs.
Q4: Why is there signal distortion or noise interference in the output?
A4: Signal distortion can result from electromagnetic interference from nearby high-power cables or drives. Ensure the extension cable is routed separately from power wiring and properly shielded. Check grounding continuity between probe housing, Proximitor sensor, and control system. Damaged cable insulation or poor connector seating can also introduce noise.
Q5: What should be checked if the Keyphasor signal is missing or irregular?
A5: Confirm that the probe alignment with the Keyphasor notch or target is precise and that the rotational speed is sufficient for reliable triggering. A weak signal may occur if the probe gap is incorrectly set or if the target surface is contaminated or worn. Verify the Proximitor sensor configuration matches the expected pulse scaling in the monitoring system.
