Brand:
Bently NevadaItem NO.:
330180-X1-05 MOD：145Part Number:
330180-X1-05 MOD：145004-09Weight:
0.5kgDimensions:
9.8x7.3x5.8cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

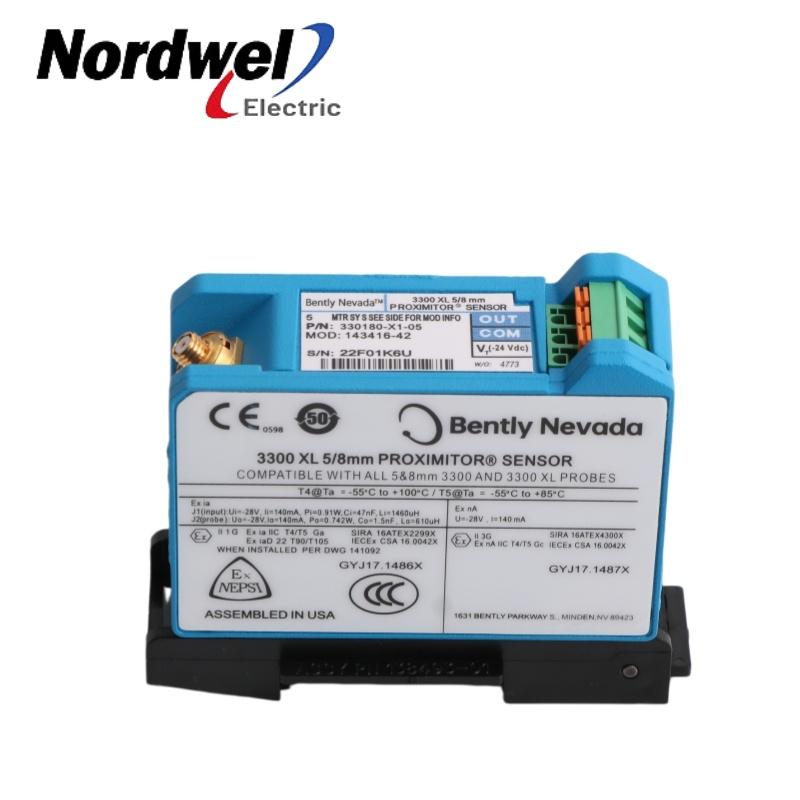

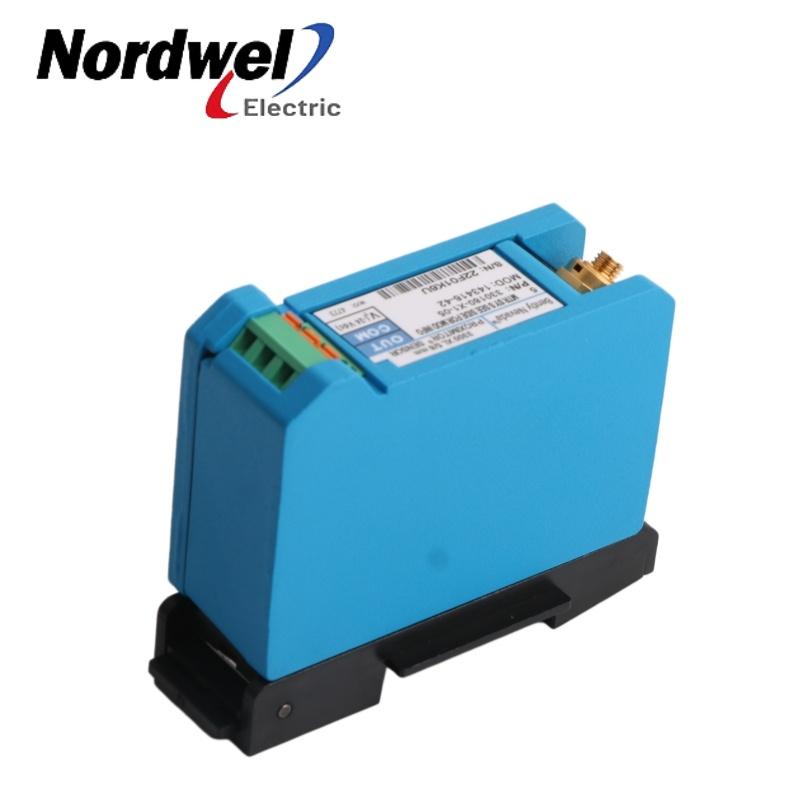

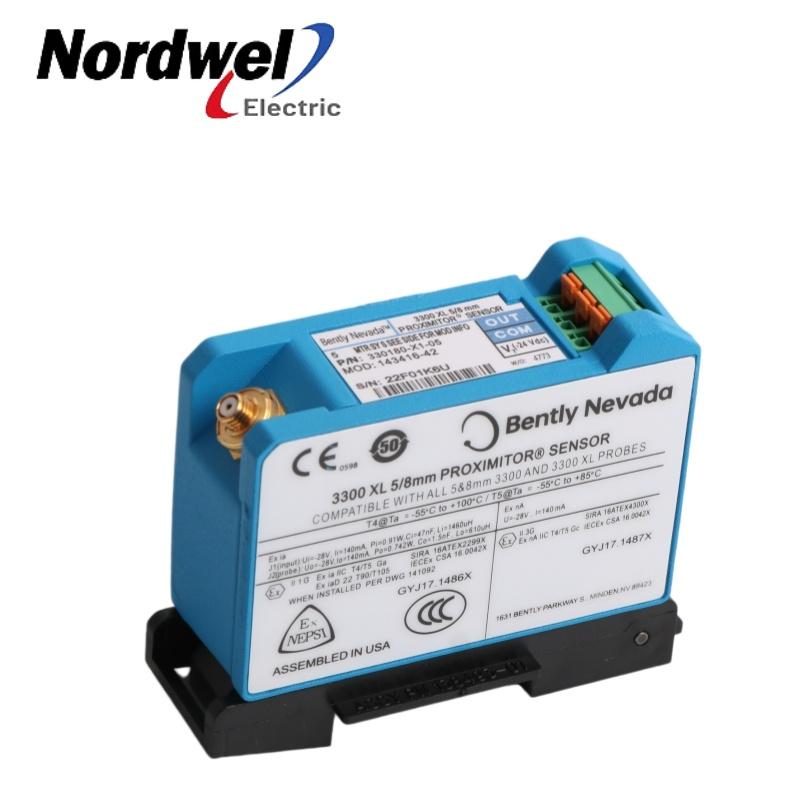

3300 XL Proximitor Sensor
Product Information
|
Model number |
330180-X1-05 MOD：145004-09 |
|
Country of origin |
USA |
|
Condition |
Brand New |
|
Lead time Warranty |
in stock |
Contact us for the latest pricing and discount information
Stella
Sales Manager:
Send an email:
Contact in Whatsapp:
Detailed Technical Specifications of the 330180-X1-05 MOD：145004-09
Model decoding – 330180 = 3300 XL Proximitor Sensor. X1 = 1.0 meter (3.3 feet) system length with DIN rail mount. 05 = multiple agency approvals (CSA, ATEX, IECEx). MOD:145004-09 = factory‑applied modification code indicating a special calibration or configuration variant.
General – The 3300 XL Proximitor Sensor is the signal‑conditioning component of the 3300 XL 8 mm Proximity Transducer System. It accepts one non‑contacting 3300‑series 5 mm or 3300 XL 8 mm probe and extension cable, converting the probe’s RF signal into a DC voltage proportional to the probe‑to‑target gap. Designed for vibration and displacement monitoring of rotating machinery including steam and gas turbines, centrifugal compressors, pumps, and motors.
Electrical specifications – Input: accepts one 3300‑series 5 mm or 3300 XL 8 mm proximity probe and extension cable. Power: requires –17.5 Vdc to –26 Vdc at 12 mA maximum consumption; with barriers, –23 Vdc to –26 Vdc. Output resistance: 50 Ω. Supply sensitivity: <2 mV output change per volt input change. Frequency response: 0 to 10 kHz (–3 dB point). Default calibration is for AISI 4140 steel targets; other materials available on request.
Mechanical specifications – Housing: A308 aluminum. Weight: 246 g (8.67 oz). Approximate dimensions: 75 mm × 25 mm × 50 mm. DIN rail mounting simplifies installation. SpringLoc terminal strips require no special tools and eliminate screw‑type clamping mechanisms that can loosen.
Environmental limits – Operating temperature: –52 °C to +100 °C (–62 °F to +212 °F). Storage temperature: –52 °C to +105 °C (–62 °F to +221 °F). Relative humidity: 100% condensing, non‑submersible when connectors are protected. RFI/EMI immunity meets European CE mark requirements without special shielded conduit or metallic housings.
Certifications – SIL 2 (HFT = 0) / SIL 3 (HFT = 1) functional safety. FCC Part 15 compliant. EMC: EN 61000‑6‑2 (immunity) and EN 61000‑6‑4 (emissions). RoHS compliant. China RoHS: EFUP 15 years. Hazardous area: cNRTLus (Class I, Zone 0/2; Div 1/2) and ATEX/IECEx (Ex ia IIC T4/T5 Ga; Ex na IIC T4/T5 Gc). Complies with API 670.
MOD:145004‑09 – This modification code denotes a factory‑applied configuration variant. Such codes typically indicate special calibration for non‑standard target materials, specific system length combinations, or custom performance adjustments. The exact nature of MOD:145004‑09 is not detailed in public documentation but is a recognised variant within the 330180‑X1‑05 series. For precise details, consult the factory calibration certificate or contact Bently Nevada technical support with the full part number and MOD code.
|
