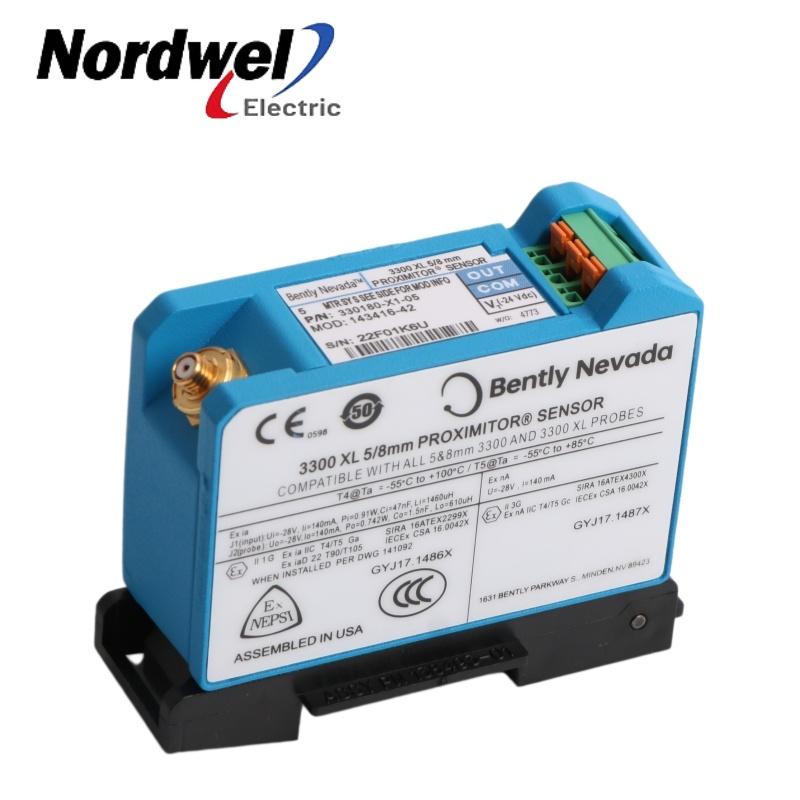

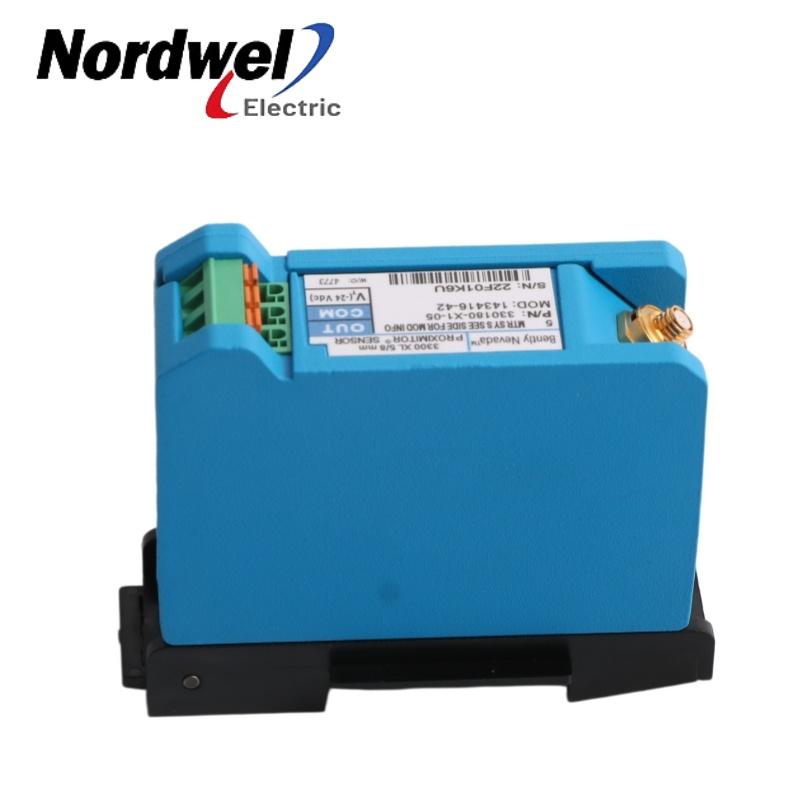

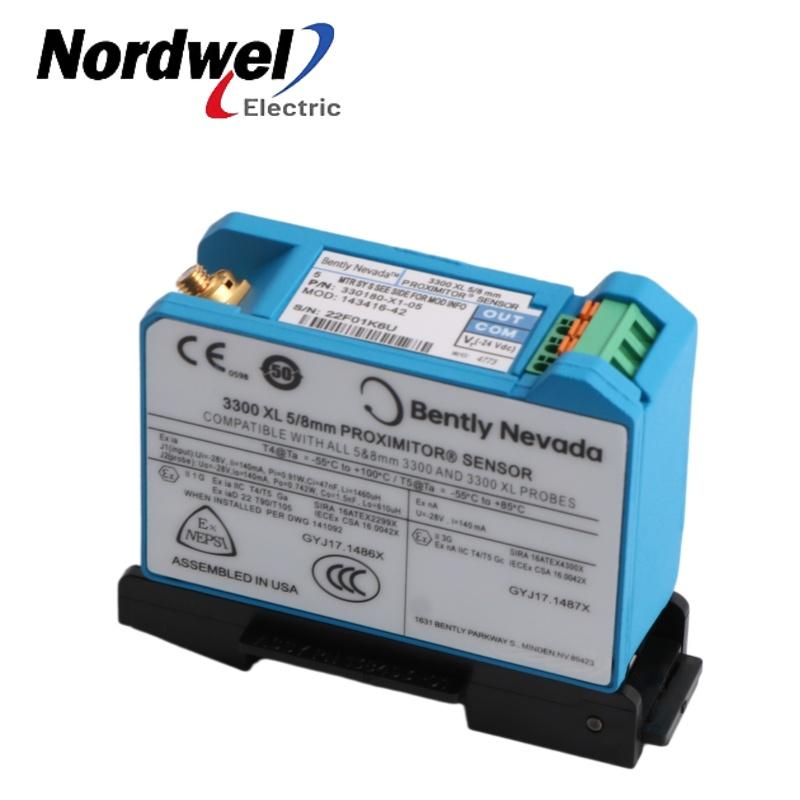

3300 XL Proximitor Sensor
Product Information
|
Model number |
330180-X1-05 MOD：145004-94 |
|
Country of origin |
USA |
|
Condition |
Brand New |
|
Lead time Warranty |
in stock |
Contact us for the latest pricing and discount information
Stella
Sales Manager:
Send an email:
Contact in Whatsapp:
Detailed Technical Specifications of the 330180-X1-05 MOD：145004-94
Model decoding – 330180 = 3300 XL Proximitor Sensor platform. X1 = 5.0-meter system length with no mounting hardware (bare sensor – panel-mount pad or DIN clips must be ordered separately). 05 = multiple agency approvals (CSA, ATEX, IECEx). MOD: 145004-94 = factory-applied modification code – typically denotes a specific calibration configuration, custom parameter set, or application-specific tuning; exact nature not detailed in public datasheets, consult factory calibration certificate or Bently Nevada technical support for precise details.
General – The 3300 XL Proximitor Sensor is the signal-conditioning component of the 3300 XL 8 mm Proximity Transducer System. Accepts one non-contacting 3300‑series 5 mm or 3300 XL 8 mm probe and extension cable, converting the probe’s RF signal into a DC voltage proportional to the probe-to-target gap. Provides both static (position) and dynamic (vibration) measurements for fluid‑film bearing machines, Keyphasor reference, and speed applications. Standard 5-meter system fully complies with API 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
Electrical specifications – Power: requires –17.5 Vdc to –26 Vdc without barriers at 12 mA maximum consumption; –23 Vdc to –26 Vdc with barriers. Operation above –23.5 Vdc may reduce linear range. Supply sensitivity: <2 mV output change per volt input change. Output resistance: 50 Ω. Output bias voltage: approximately –9 Vdc at recommended gap. Linear range: 2 mm (80 mils), from approximately 0.25 mm to 2.3 mm (10 to 90 mils). Recommended gap setting for radial vibration: –9 Vdc [approximately 1.27 mm (50 mils)]. Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% including interchangeability error over 0°C to +45°C. Frequency response: 0 to 10 kHz (+0, –3 dB) with up to 305 m of field wiring.
Mechanical specifications – Housing material: A308 aluminum. Weight: 246 g (8.67 oz) typical. Dimensions: approximately 81.3 × 35.1 × 63.5 mm. The X1 option (no mounting hardware) means the sensor is supplied without a panel-mount pad or DIN-rail clips; these must be ordered separately. Panel-mount configuration uses a 4‑hole mounting pattern with M3.5 or #6 screws, sharing identical footprint with older Proximitor Sensor designs.
Environmental limits – Operating temperature: –52°C to +100°C (–62°F to +212°F). Storage temperature: –52°C to +105°C (–62°F to +221°F). Relative humidity: <3% change in Average Scale Factor (ASF) when tested at 93% RH per IEC 68‑2‑3 for up to 56 days. RFI/EMI immunity: meets European CE mark approvals without special shielded conduit or metallic housings.
Certifications – SIL 2 (HFT = 0) / SIL 3 (HFT = 1) functional safety. FCC Part 15 compliant. EMC: EN 61000‑6‑2 (Immunity) and EN 61000‑6‑4 (Emissions). RoHS compliant (EU Directive 2011/65/EU). China RoHS: EFUP 15 years. Maritime: ABS 2009 Steel Vessels Rules. Hazardous area: cNRTLus (Class I, Zone 0/2; Div 1/2) and ATEX/IECEx (Ex ia IIC T4/T5 Ga; Ex na IIC T4/T5 Gc).
Special features – SpringLoc terminal strips require no special tools and eliminate screw-type clamping mechanisms that can loosen. Gold-plated ClickLoc connectors require only finger-tight torque (audible “click”). Backward-compatible and interchangeable with non-XL 3300‑series 5 mm and 8 mm components. The 05 approval option provides CSA, ATEX, and IECEx certifications. The MOD: 145004‑94 code indicates a specific factory configuration or calibration variant – for precise details, consult the factory calibration certificate or contact Bently Nevada technical support with the full part number and MOD code.
|
