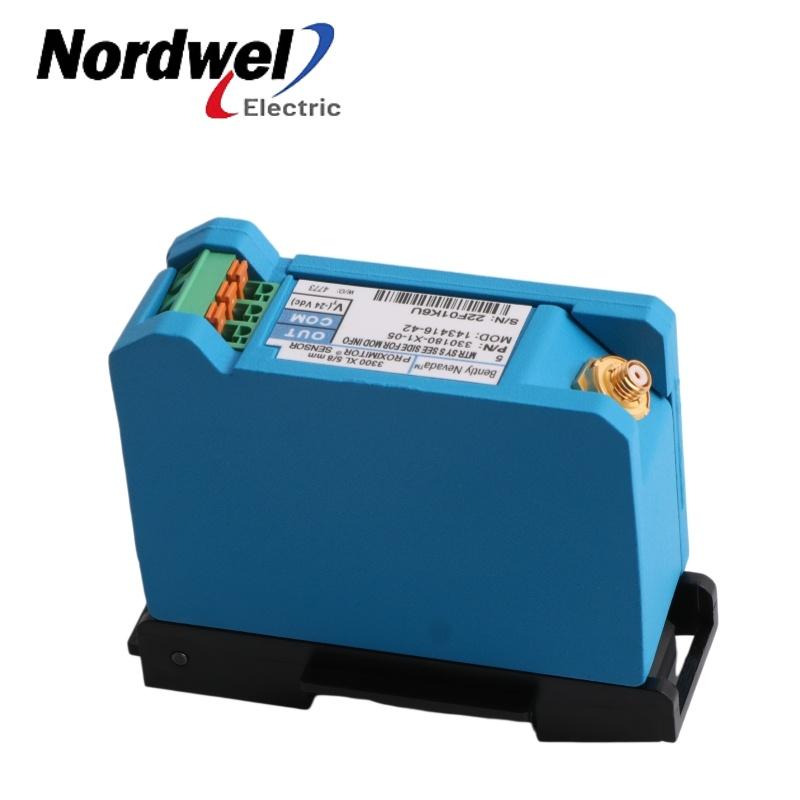

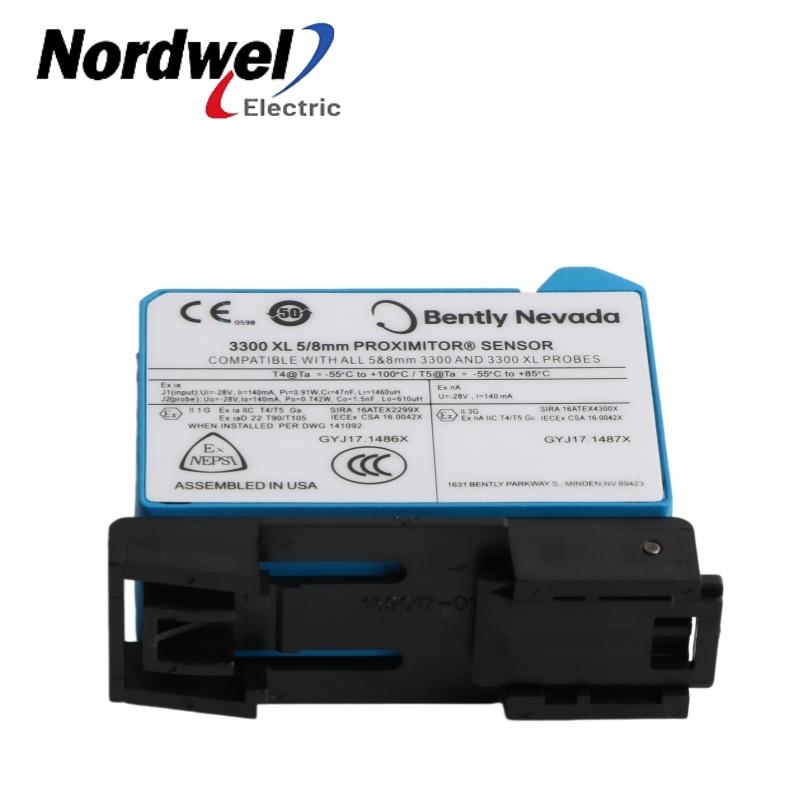

3300 XL Proximitor Sensor
Product Information
|
Model number |
330180-X1-05 MOD：145004-15 |
|
Country of origin |
USA |
|
Condition |
Brand New |
|
Lead time Warranty |
in stock |
Contact us for the latest pricing and discount information
Stella
Sales Manager:
Send an email:
Contact in Whatsapp:
Detailed Technical Specifications of the 330180-X1-05 MOD：145004-15
Model decoding – 330180 = 3300 XL Proximitor Sensor. X1 = 5.0 m system length with DIN‑rail mounting hardware (clips included). 05 = multi‑agency approvals (CSA, ATEX, IECEx). MOD: 145004‑15 = factory recalibration tailored for AISI 416 stainless steel target material.
Modification specifics – The 145004 modification series re‑calibrates the Proximitor sensor for non‑standard target metals; suffix “‑15” corresponds to AISI 416 stainless. Calibration is performed at +23 °C ±3 °C. This change may increase probe interchange sensitivity and E‑zero tolerance compared to standard AISI 4140 calibration. Temperature‑related permeability effects are expected to be similar to 4140 but have not been fully characterised at extreme temperatures.
General role – Acts as the signal‑conditioning engine for the 3300 XL 8 mm eddy‑current transducer system. Converts the probe’s RF signal into a DC voltage proportional to probe‑to‑target gap, enabling both static (position) and dynamic (vibration) measurements. Commonly deployed on steam turbines, generators, compressors, and pumps in power and process industries. The 5 m system fully meets API 670 requirements for mechanical layout, linearity, accuracy, and thermal stability.
Electrical characteristics – Accepts one 3300‑series 5 mm or 3300 XL 8 mm probe and extension cable. Power: –17.5 to –26 Vdc without barriers (12 mA max); –23 to –26 Vdc with barriers; operation above –23.5 Vdc may reduce the linear range. Supply sensitivity: <2 mV output change per volt input change. Output resistance: 50 Ω. Linear range: 2 mm (80 mils) from ≈0.25 mm to 2.3 mm (≈ –1 to –17 Vdc). ISF for 5 m system: 7.87 V/mm (200 mV/mil) ±5% including interchangeability; for 9 m: ±6.5%. Frequency response: 0 to 10 kHz (+0, –3 dB). DSL: <±0.025 mm for 5 m standard system over 0 to +45 °C.
Environmental limits – Operating temperature: –35 °C to +85 °C (–31 °F to +185 °F). Storage: –51 °C to +100 °C (–60 °F to +212 °F). Humidity: 100% condensing (non‑submerged) with connectors protected. Enhanced RFI/EMI immunity allows installation in fibreglass enclosures without shielded conduit, satisfying CE requirements.
Mechanical build – Housing: A308 aluminium alloy. Terminals: SpringLoc type – no special tools needed, screw‑free clamping prevents loosening. DIN‑rail option (X1) includes clips for 35 mm rail; panel‑mount adapters are not supplied. Weight: ≈0.323 kg (11.4 oz). Connectors: gold‑plated brass/beryllium copper.
Certifications – CSA, ATEX, IECEx hazardous‑area approvals (Class I Zone 0/2; Div 1/2; Ex ia IIC T4/T5, Ex nA IIC T4/T5). Functional safety: SIL 2 (HFT=0) / SIL 3 (HFT=1). EMC: EN 61000‑6‑2 & ‑6‑4. RoHS and China RoHS (EFUP 15 years). FCC Part 15 compliant.
Distinctive features – Fully interchangeable with non‑XL 3300 5 mm and 8 mm components – no matching or bench calibration needed. Integrated mounting base provides electrical isolation without separate isolator plates. PROX OUT and COM terminals plus a coaxial connector deliver dynamic vibration and gap voltage for diagnostic use. Non‑interacting zero and span potentiometers facilitate loop adjustments without interaction.
|
