Brand:
Bently NevadaItem NO.:
330702-00-25-10-11-0Part Number:
330702-00-25-10-11-05Manufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

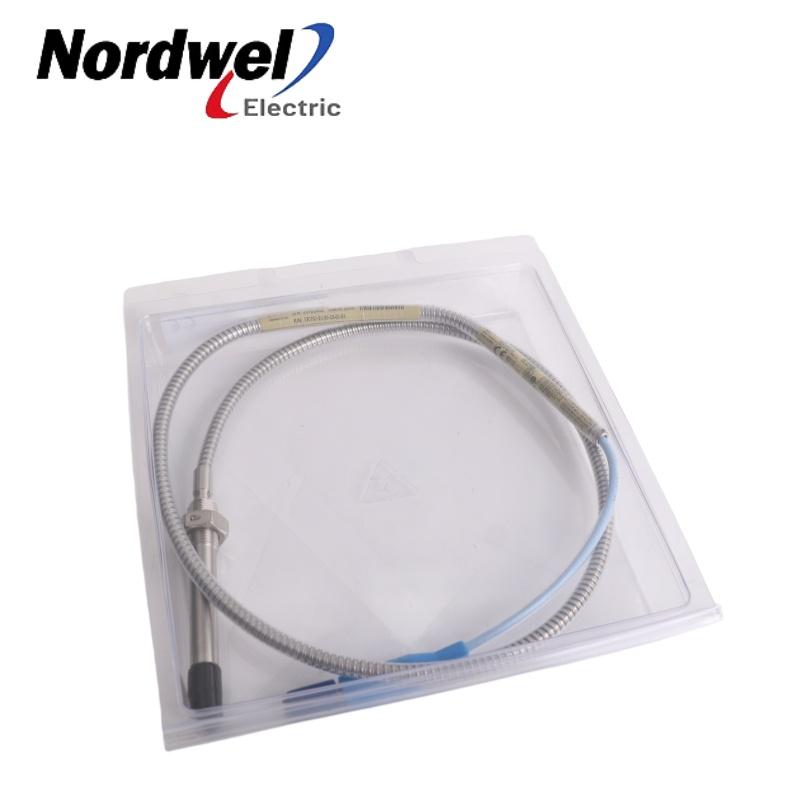

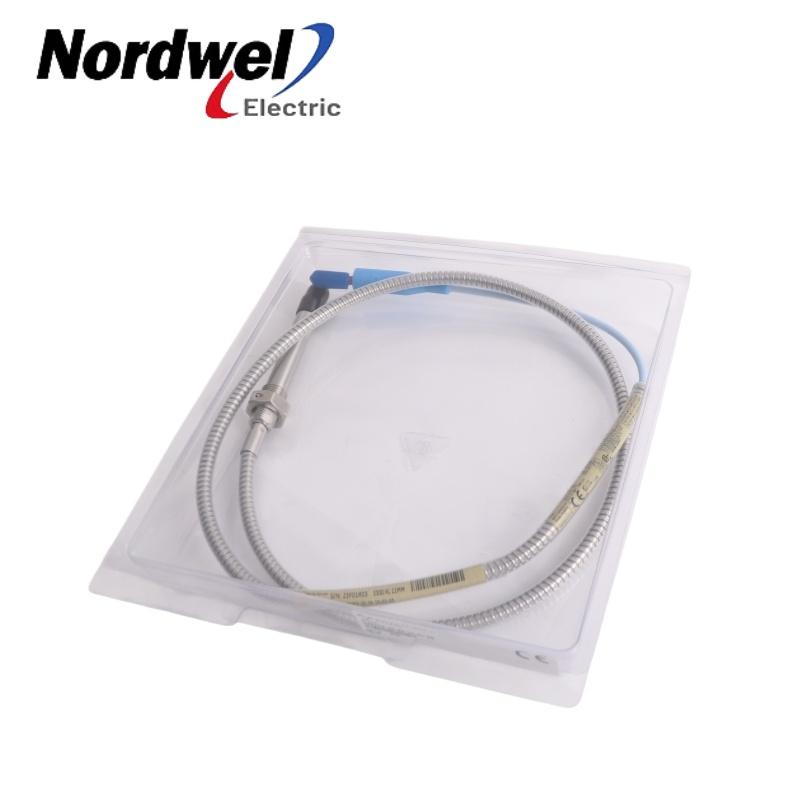

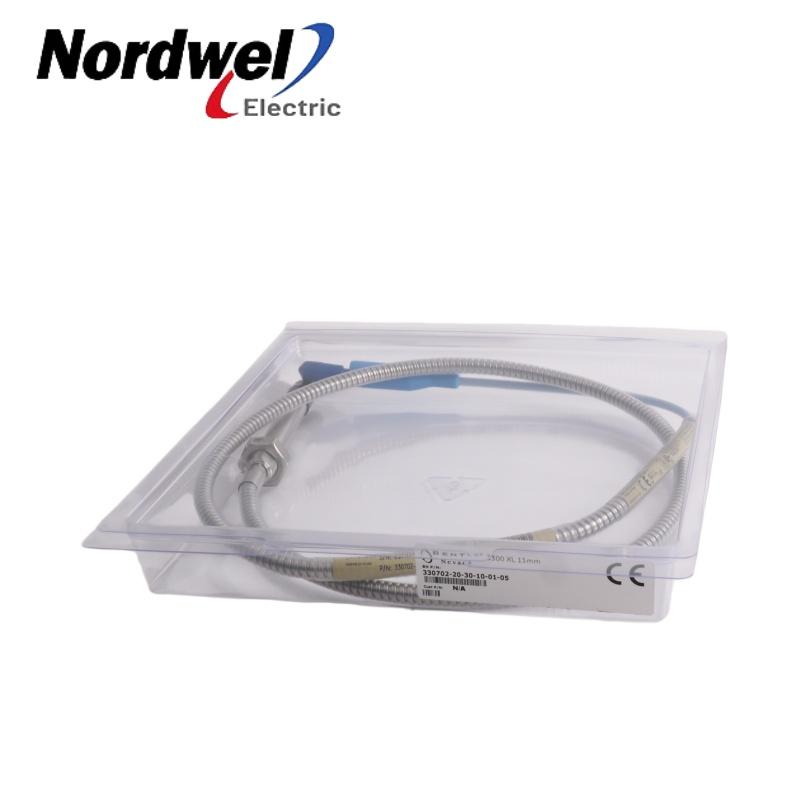

PROXPAC XL Proximity Transducer
Product Information
|
Model number |
330702-00-25-10-11-05 |
|
Country of origin |
USA |
|
Condition |
Brand New |
|
Lead time Warranty |
in stock |
Contact us for the latest pricing and discount information
Stella
Sales Manager:
Send an email:
Contact in Whatsapp:
Detailed Technical Specifications of the 330702-00-25-10-11-05
Model decoding – 330702 = standard‑mount probe, 1/2‑20 UNF thread, with stainless‑steel armor. 00 = 0.0 in unthreaded length. 25 = 2.5 in (63.5 mm) overall case length. 10 = 1.0 m (3.3 ft) total cable length. 11 = miniature ClickLoc connector + connector protector + FluidLoc cable (prevents oil/liquid leakage through the cable). 05 = multiple agency approvals.
Electrical performance – Sensitivity is 3.94 V/mm (100 mV/mil) with a 0 to 8 kHz frequency response. Linear range = 4.0 mm (160 mils), from 0.5 mm to 4.5 mm (–1 to –17 Vdc). Recommended gap = 2.5 mm (100 mils). ISF = 3.94 V/mm ±10% including interchangeability. Standard DSL < ±0.10 mm; extended DSL < ±0.15 mm. DC resistance for the 1.0 m cable = 5.9 ± 0.5 Ω (75 Ω triaxial FEP cable).
Mechanical construction – Tip = PPS; case = AISI 304 SST; armor = flexible AISI 302 SST with FEP outer jacket. Maximum tensile strength = 330 N (75 lb). Minimum bend radius = 25.4 mm (1.0 in) with or without armor.
Installation torque & limits – Recommended mounting torque for 1/2‑20 UNF = 15.2 N·m (133 in‑lb); max rated = 45.2 N·m (400 in‑lb). Maximum thread engagement length = 0.750 in (19.05 mm) – exceeding this risks binding and voids the warranty. Connectors are finger‑tight only (max 0.565 N·m / 5 in‑lb).
Environmental limits – Operating/storage temperature = –52 °C to +177 °C (–62 °F to +351 °F). Warning: exposure below –34 °C (–30 °F) may cause premature Viton O‑ring pressure‑seal failure. The seal is not pressure‑tested before shipment; the user is responsible for containing any leakage.
Certifications – SIL 2/3 functional safety; EMC (EN 61000‑6‑2/‑4); FCC Part 15; RoHS; hazardous‑area approvals (ia / nA for Class I, Zone 0/2, gas and dust) with temperature classes T1 to T5 depending on ambient temperature.
Special features – FluidLoc cable (option 11) blocks fluid wicking. The connector protector adds moisture/humidity protection. This 1.0‑m probe must match the total length of the Proximitor sensor (e.g., 5 m or 9 m systems). Calibration is factory‑set for AISI 4140 steel targets; other materials require custom calibration.
|
