Brand:
Bently NevadaItem NO.:
31000-26-05-20-041-0Part Number:
31000-26-05-20-041-01-02Weight:
1.5kgDimensions:
37x9x8cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

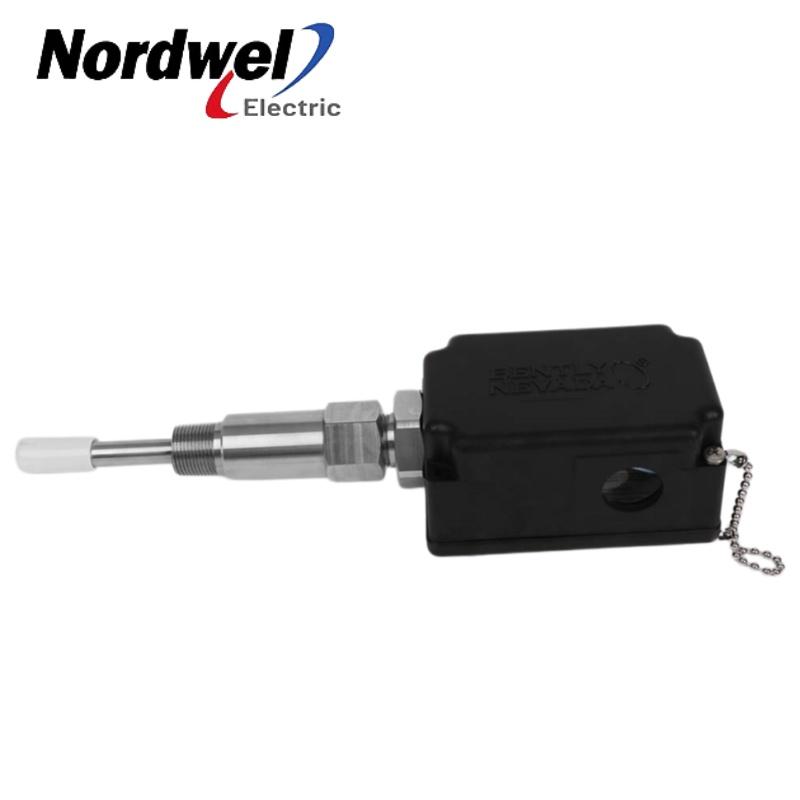

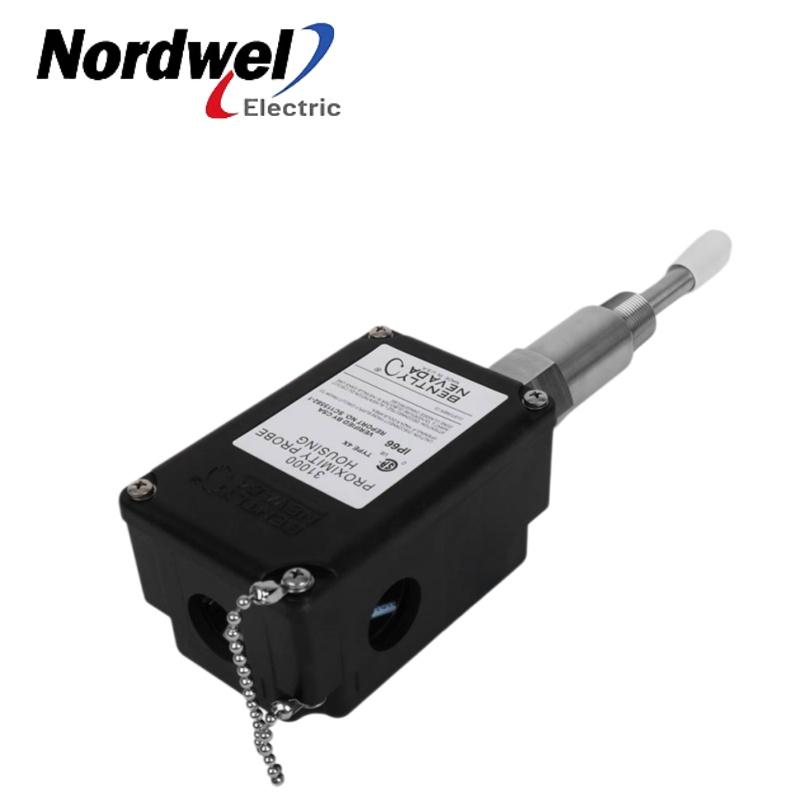

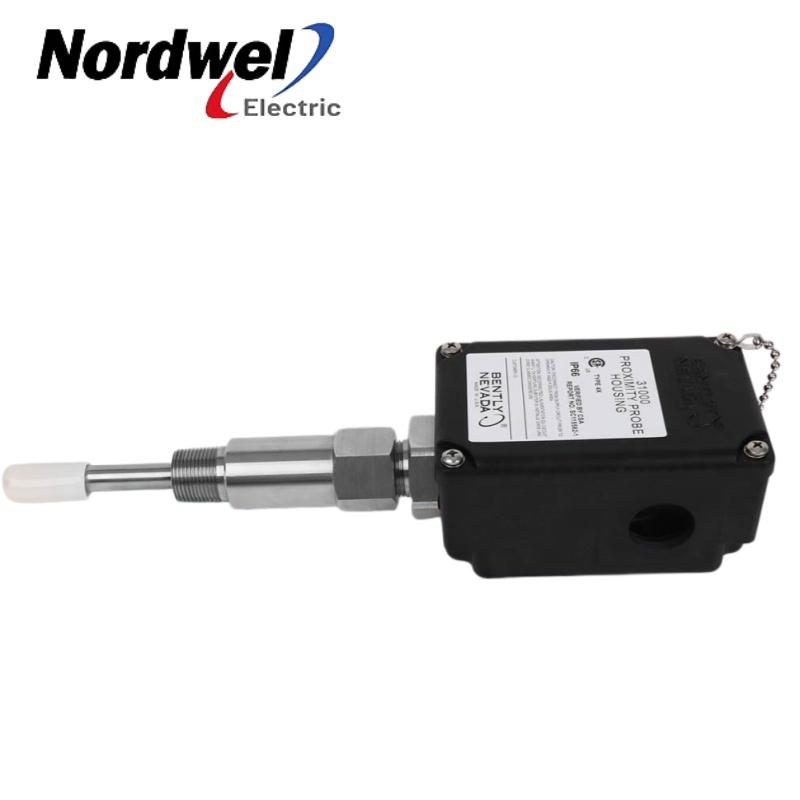

Proximity Probe Housing Assemblies
Product Information
|
Model number |
31000-26-05-20-041-01-02 |
|
Country of origin |
USA |
|
Condition |
Brand New |
|
Lead time Warranty |
in stock |
Contact us for the latest pricing and discount information
Stella
Sales Manager:
Send an email:
Contact in Whatsapp:
Detailed Technical Specifications of the 31000-26-05-20-041-01-02
Model decoding: 31000 = English housing; 26 = 3300 XL NSv probe; 05 = 0.5 m cable; 20 = 2.0 in standoff adapter; 041 = 4.1 in probe penetration; 01 = one 3/4-14 NPT fitting + two plugs; 02 = 3/4-14 NPT mounting thread.
General: Recommended for radially mounted proximity probes through machine case; allows gap adjustment/replacement without disassembly; API 670 compliant; provides mechanical/environmental protection only, not explosion‑proof.
Materials: Housing = glass‑reinforced PPS with conductive fibers; sleeve/retaining chain = AISI 304 SST; outer sleeve/screws = AISI 303 SST; O‑ring = Neoprene.
Ratings: Type 4X (CSA) and IP66. Probe operating –34 to +177°C, storage –51 to +177°C; housing operating/storage –51 to +105°C.
Hot water/steam: Brief contact (≤1 week) at 95°C does not significantly affect strength; longer exposure may reduce strength to ~50% after 6–8 weeks.
Pressure sealing: Seals differential pressure between probe tip and housing (Viton internal, Neoprene sleeve‑housing); certified for hose‑directed water (NEMA 4X/IP66) but not for internal/external pressure; not pressure‑tested before shipment.
Mechanical: Supported 912 N load at 38 mm from end; impact resistance: 4 J at –39°C and 115°C, 7 J at room temp; weight ≈1.2 kg.
Torque: Retaining nut = 29.4 N·m (260 in·lb); hole plugs = 0.5 N·m (5 in‑lb).
Limits: C+D > 305 mm requires additional sleeve support; D adjustment range ±13 mm; penetration 25–50 mm may require counter‑boring to reduce side/rear view effects.
Hazardous area: Can be used in intrinsically safe applications with approved transducer system and appropriate I.S. barriers.
Note: Configured for a 3300 XL NSv probe with 0.5 m cable; housing does not include the probe (Option A specifies probe type).
|
