Part Number:
330905-00-25-05-12-CNWeight:
0.05kgDimensions:
1.8x1.6x66cmPlace of Origin:
USACertification:
CO,CQDescription:

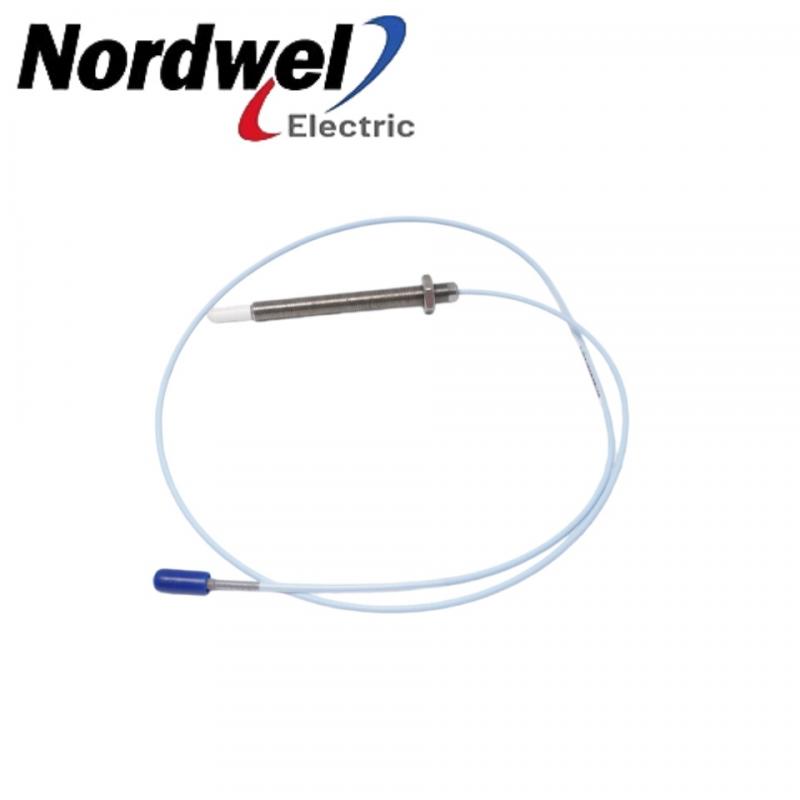

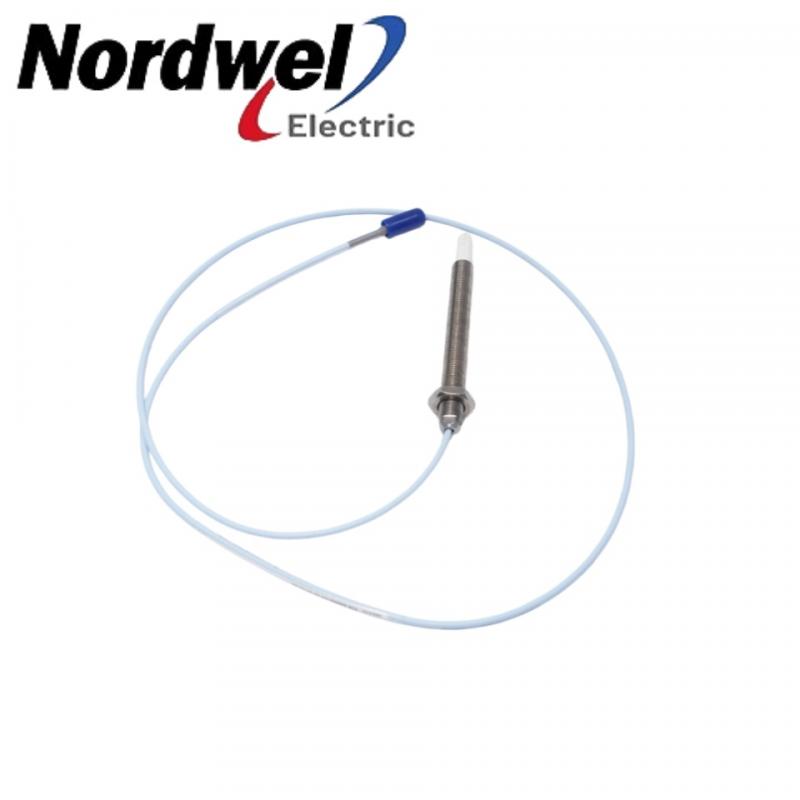

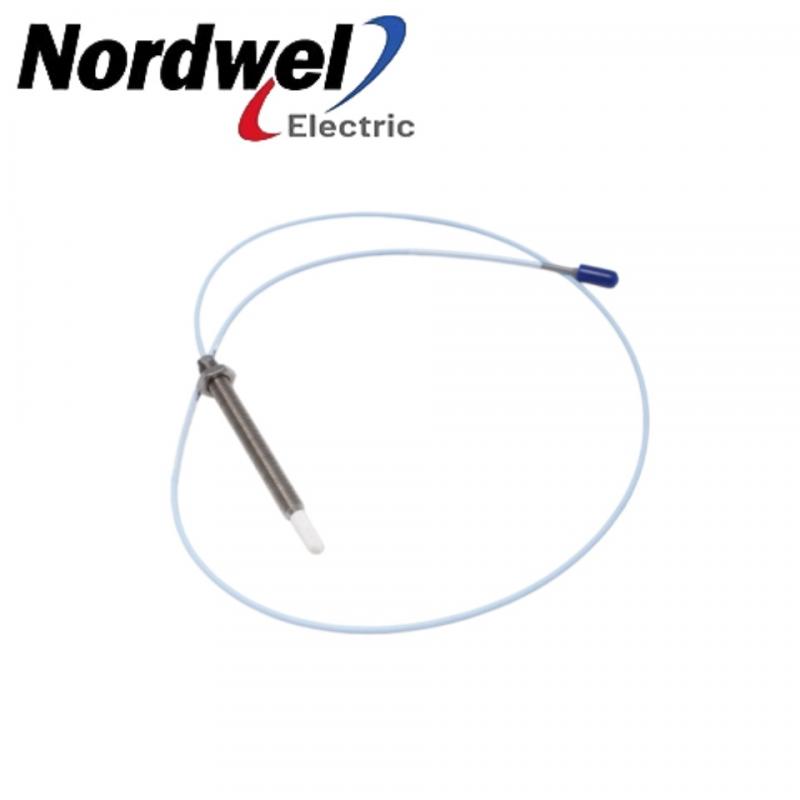

Bently Nevada 330905-00-25-05-12-CN Unarmored M10X1 NSv proximity probe with FluidLoc cable.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
|
|
Part number |
330905-00-25-05-12-CN |
|
Description |
|
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 330905-00-25-05-12-CN in stock!!!
Product Description
The Bently Nevada 330905-00-25-05-12-CN is an unarmored M10X1 metric-threaded 3300 NSv proximity probe featuring a 0 mm unthreaded case length and a 250 mm overall case length. It is equipped with a 0.5-meter (20-inch) FluidLoc cable terminated with a gold-plated brass miniature coaxial ClickLoc connector. Operating within a temperature range of -52°C to +177°C (-62°F to +351°F), the probe utilizes a polyphenylene sulfide (PPS) tip and an AISI 304 stainless steel case. It functions as a key component of the 3300 XL NSv Proximity Transducer System, delivering an average scale factor of 7.87 V/mm (200 mV/mil) over a 1.5 mm (60 mils) linear range starting 0.25 mm (10 mils) from an AISI 4140 steel target. The assembly boasts a 220 N (50 lb) cable pull strength based on the CableLoc design and maintains a frequency response of 0 to 10 kHz.
Parameter Information
Unthreaded Length Option: 0mm
Overall Case Length Option: 250mm
Total Length Option: 0.5 meter (20 in)
Connector and Cable-Type Option : Miniature coaxial ClickLoc connector,
FluidLoc cable
Output
resistance: 50 Ω
Extension cable
capacitance: 69.9 pF/m (21.3 pF/ft)
typical
Field Wiring
0.2 to 1.5
Recommended
Gap Setting: 1.0 mm (40 mils)
Operating
Temperature: -52°C to +177°C (-62°F to
+351°F)
Storage
Temperature: -52°C to +177°C (-62°F to
+351°F)
Operating and
Storage
Temperature: -52°C to +177°C (-62°F to
+351°F)
FAQ
If the ambient temperature breaches the design limits of -52°C or +177°C, how will the electrical properties of the 330905-00-25-05-12-CN probe change?
Exceeding these temperature boundaries will cause the probe's internal DC resistance to drift away from its standard calibrated value of 4.2 ± 0.5 ohms.
Will the 330905-00-25-05-12-CN trigger a position sensor error if the radial vibration measurement is performed on a shaft smaller than 20 mm?
It will not trigger a fatal error, but measuring on a shaft diameter under 20 mm will cause greater than a 10% change in the Average Scale Factor.
When installing two 330905-00-25-05-12-CN probes in an X-Y configuration, must they be separated by at least 23 mm to prevent electromagnetic cross-talk?
Yes, a minimum axial offset spacing of 23 mm between the transducer tips is strictly required to prevent their emitted fields from causing erroneous readings.
Application
Thermal & Hydroelectric Power Plants: Deployed within turbine bearings, generator shafts, and balance-of-plant (BOP) systems to measure radial vibration and axial thrust position.
Petrochemical & Gas Refineries: Installed on centrifugal air compressors and process gas compressors with fluid-filmed bearings to track shaft dynamics under tight installation constraints.
Industrial Refrigeration Facilities: Integrated into large refrigeration compressors to monitor critical shaft stabilization parameters, oil film metrics, and machine protection loops.
Chemical Utility Complexes: Applied on high-speed small-shaft fluid-filmed bearing machines to perform tachometer, zero speed, and phase reference measurements.
|
