Part Number:
330172-00-20-90-01-05Weight:
0.1kgDimensions:
1.1x0.9x125cmPlace of Origin:
USACertification:
CO,CQDescription:

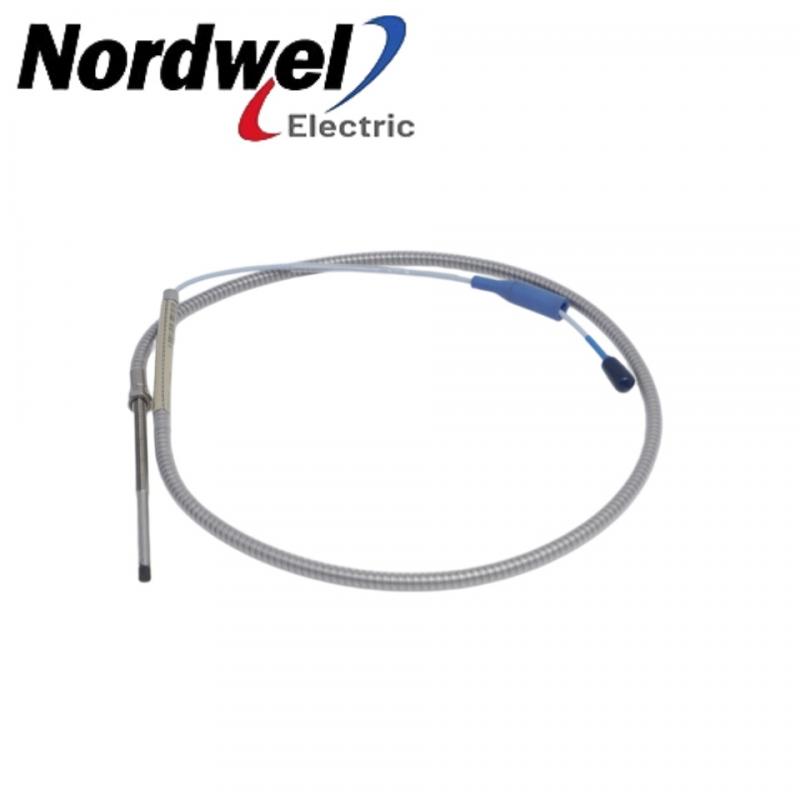

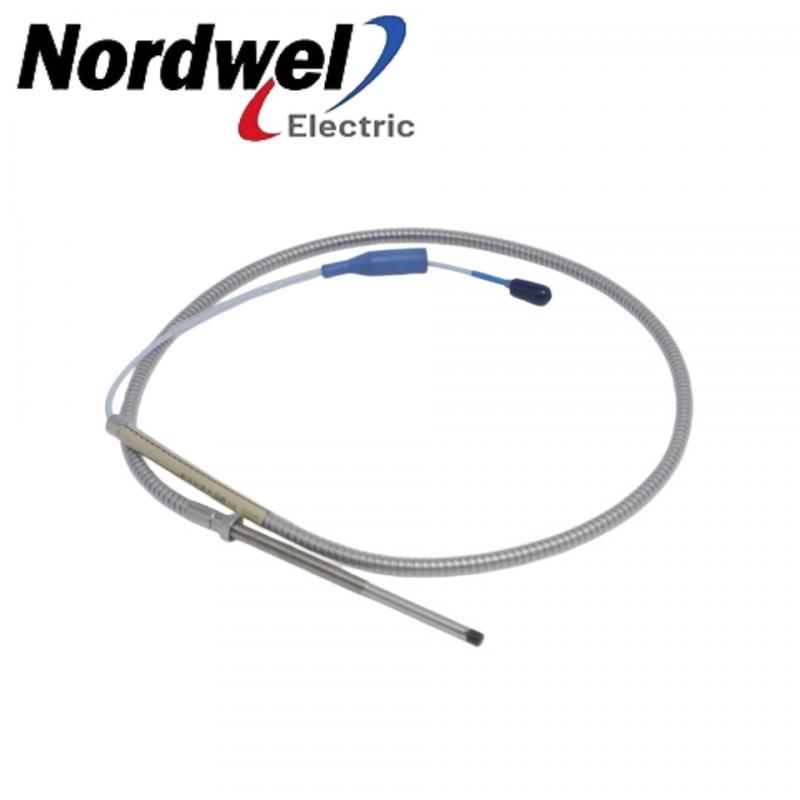

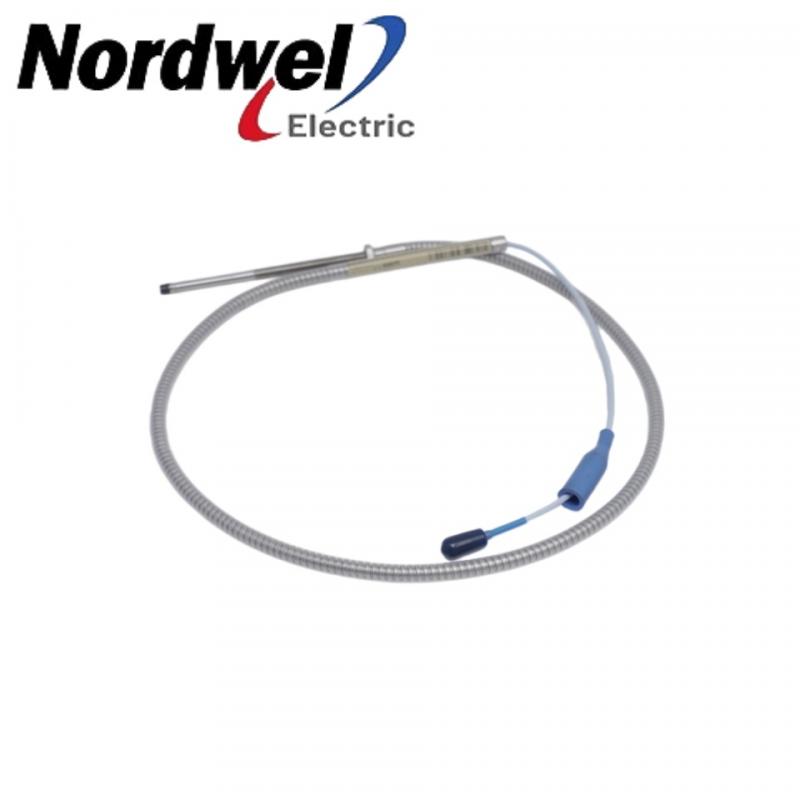

Bently Nevada 330172-00-20-90-01-05 Armored 1/4-28 thread 5mm proximity probe with 9m cable.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
|
|
Part number |
330172-00-20-90-01-05 |
|
Description |
|
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 330172-00-20-90-01-05 in stock!!!
Product Description
The Bently Nevada 330172-00-20-90-01-05 is a 3300 5 mm proximity probe assembly featuring a 1/4-28 UNF-2A thread, 0.0-inch unthreaded case length, and a 2.0-inch overall case length. It includes a 9.0-meter (29.5 feet) cable with protective armor and a ClickLoc connector. Designed for radial vibration and position measurements, the system operates over a 2 mm (80 mils) linear range with a 7.87 V/mm (200 mV/mil) scale factor and an operating temperature range suitable for industrial environments. The probe features a durable PPS tip and stainless steel housing, with a -038 mm (±1.5 mil) maximum deviation from the best-fit straight line (DSL). This specific configuration includes agency approvals (05 option) for hazardous locations.
Parameter Information
Unthreaded Length Option: 0mm
Overall Case Length Option: 2in
Total Length Option: 9.0 metres (29.5 feet)
Connector Option: Miniature coaxial ClickLoc connector with connector protector, standard cable
Agency Approval Option: Multiple Approvals
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
Recommended Gap Setting: 1.27 mm (50 mils)
Frequency Response: 0 to 10 kHz: +0, -3 dB, with up to 305 meters (1000 feet) of field wiring
Minimum Target Size: 15.2 mm (0.6 in) diameter (flat target)
Maximum torque : 0.565 N·m (0.42 ft•lbf)
Minimum Cable Bend Radius：25.4 mm (1.0in)
FAQ
If the temperature breaches -35°C or +177°C, how will the 330172-00-20-90-01-05 electrical properties change?
Exceeding these limits will cause its 9.87 ± 0.90 Ω DC resistance to drift significantly.
Will the 330172-00-20-90-01-05 accurately trace dynamic shaft vibrations up to 10 kHz?
Yes, it maintains a frequency response of 0 to 10 kHz with a +0, -3 dB attenuation.
Does the 330172-00-20-90-01-05 maintain a stable 7.87 V/mm scale factor over a 2 mm range?
Yes, it covers a 2 mm linear range starting 0.25 mm away from the target.
Application
hermal & Hydroelectric Power Plants: Deployed within generator protection, steam turbine control, and balance-of-plant (BOP) systems to monitor dense digital status points.
Steel & Metallurgy Mills: Deployed within blast furnace blowers, hot rolling mill drives, and heavy cooling water pumps to capture dynamic shaft data.
Pulp & Paper Factories: Deployed within high-speed dryer section rollers, pulp grinders, and heavy-duty wastewater agitators to feed continuous mechanical health monitoring loops.
Marine & Shipbuilding Facilities: Deployed within main propulsion shafts, onboard cargo pumps, and auxiliary diesel generator bearings to provide reliable machinery breakdown alerts.
|
