Part Number:
IS220PDIOH1AWeight:
0.38kgDimensions:
6cmX13cmX8.3cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

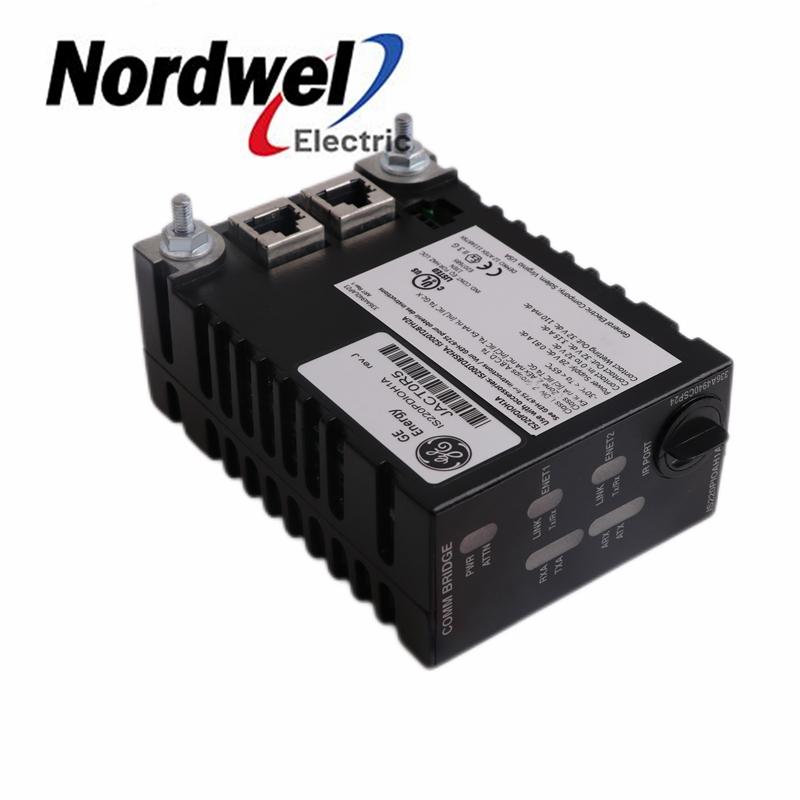

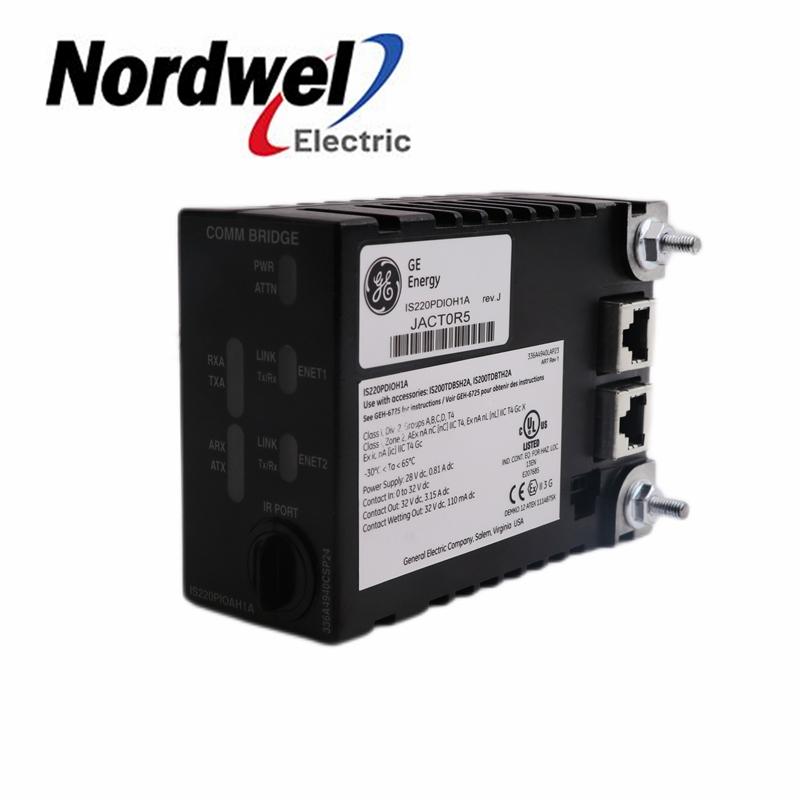

General Electric/GE Fanuc IS220PDIOH1A Discrete I/O pack Module
|
Manufacturer: |
General Electric |
|
Part Number: |
IS220PDIOH1A |
|
Series: |
Mark VIe |
|
Full Description: |
General Electric IS220PDIOH1A Discrete I/O pack Module
|
|
Status: |
In stock |
| Warranty | 12 Months |
The GE IS220PDIOH1A is an I/O pack module that contains two Ethernet ports, a local processor, and data
acquisition board for use within the GE Mark VI Speedtronic Series.
IS220PDIOH1A FEATURES
1)Up to 24 contact inputs, 12 relay outputs, and feedback signals specific to the terminal board are all supported by
the pack. The voltage capabilities of PDIO are determined by the connected terminal board. Dual RJ45 Ethernet
connectors and three-pin power input are used to connect the system to the pack.
2)The DC-62 connector, which is connected directly to the terminal board connector, is used for discrete signal input
and output. Through indicator LEDs, visual diagnostics are offered.
3)A PDIA and PDOA I/O pack coupled into a single assembly are what PDIO is functionally comparable to. It is
mounted on a TDBS terminal board, which is an amalgam of an SRLY relay terminal board and an STCI contact
input terminal board, for simplex applications.
4)It mounts on a TDBT terminal board that, when combined with the WROB option, provides the functionality of a
terminal board combined with a TBCI contact input terminal board for TMR applications.
The following I/O pack and terminal board combinations are approved for use in hazardous locations:
• Discrete I/O pack IS220PDIOH1A
with terminal boards (accessories) IS200TDBSH2A or IS200TDBTH2A
• Discrete I/O pack IS220PDIOH1B
with terminal boards (accessories) ISx0yTDBSH2A, ISx0yTDBSH8A, ISx0yTDBTH2A, or ISx0yTDBTH8A
Manager Stella quotes to you
we offer original new with 1 year warrenty
4)Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
